All Emtek items are made to order.
Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.
Features:

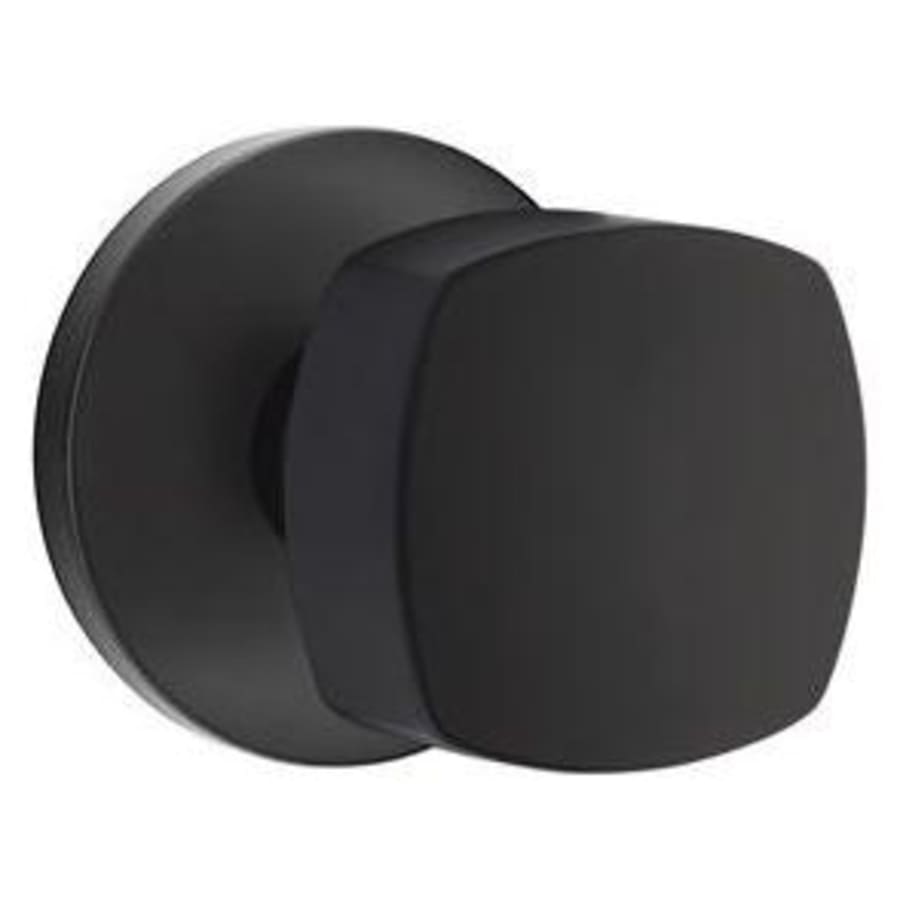

Image shows handle with disk rosette, select your rosette above
Constructed of solid brass for premium feel and durability
Installs on doors with 1-1/2″ to 3″ thickness
Reversible handing installs on both left or right handed doors
Includes round corner, square corner, and drive-in latch faceplates
Covered under a Limited Lifetime Mechanical and 5 Year Finish Warranty
Product Technologies:
Solid BrassConstruction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
CF Mechanism: Emtek’s proprietary CF Mechanism design incorporates a unique chassis design that significantly shortens the rotation and creates a more crisp and ergonomic function. This 28° latch mechanism comes standard with all units equipped with the CF Mechanism, affording a superior and robust operation.
Concealed Screws: Emtek knobs and levers that feature the CF Mechanism install cleanly on both the interior and exterior of the door, completely concealing all screws required for the installation. All you’ll ever see is the door and the hardware you’ve chosen for it—both seamlessly co-existing.
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/2″ to 3″
Handing: Reversible, Left or Right
Handle Height: 2-1/8″
Handle Width: 2-1/8″
Handle Projection: 2-1/4″
Latch Faceplate: Round Corner, Square Corner, or Drive-In
Material: Brass
Product Variations:
C510FRK: Passage Door Knob Set w/ CF Mechanism
C520FRK (This Model): Privacy Door Knob Set w/ CF Mechanism
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Freestone Collection
Specifications
| Material | Brass |
| Thermostat | Modern |
| Solid Construction | Solid Brass |
| Concealed Screws | Yes |
| Function | Privacy |
| Handshower | Left, Reversible, Right |
| Knob Shape | Flat, Square |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Locking Mechanism | Trim Lock |
| Rosette Shape | Rectangle, Round, Square |
| Collection | Urban Modern |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| ADA | No |
| Approved for Commercial Use | No |
| Series | Freestone |
| Handle Height | 2.125 in. |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-1/4", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-5/8", 2-7/8", 3" |
| Edge Bore | 1" |
| Handle Width | 2.125 in. |
| Handle Projection | 2.25 in. |
| Color | Flat Black |
| Color Tone | Blacks |
