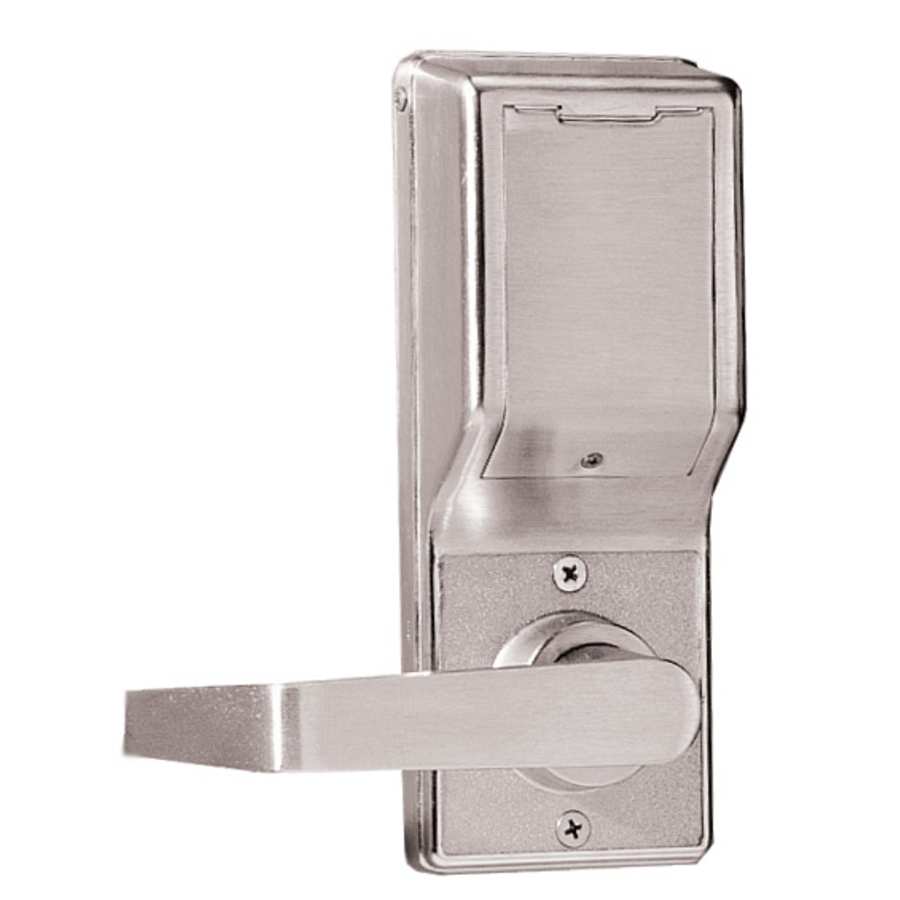

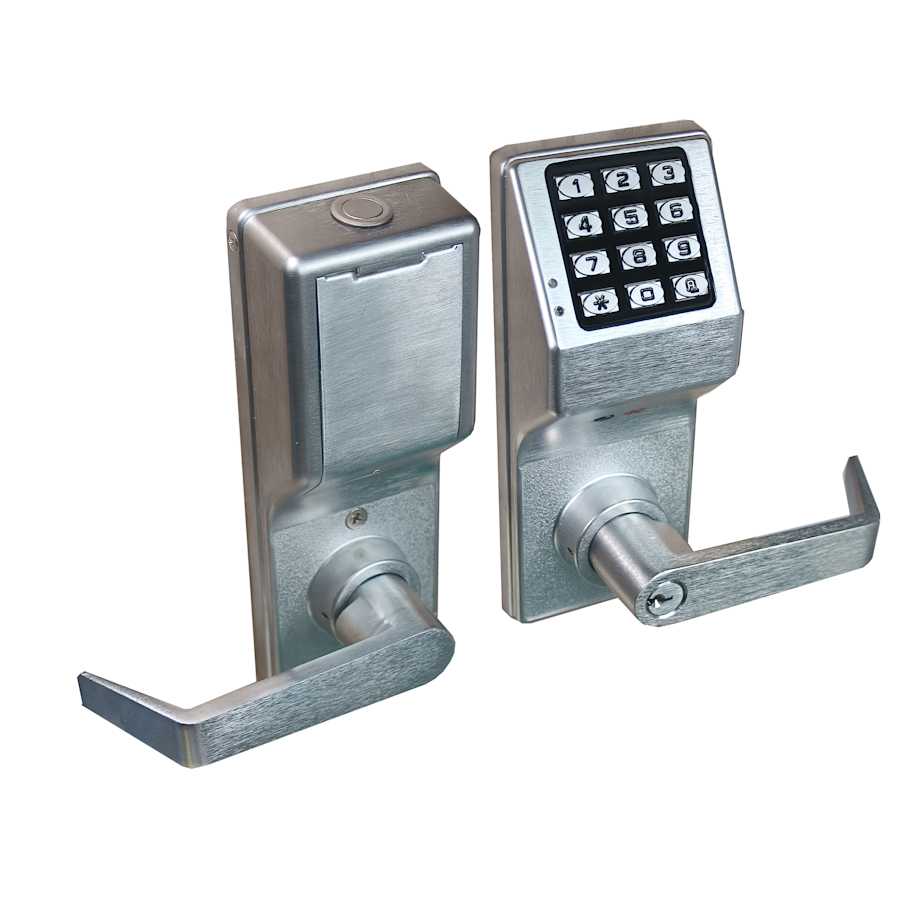

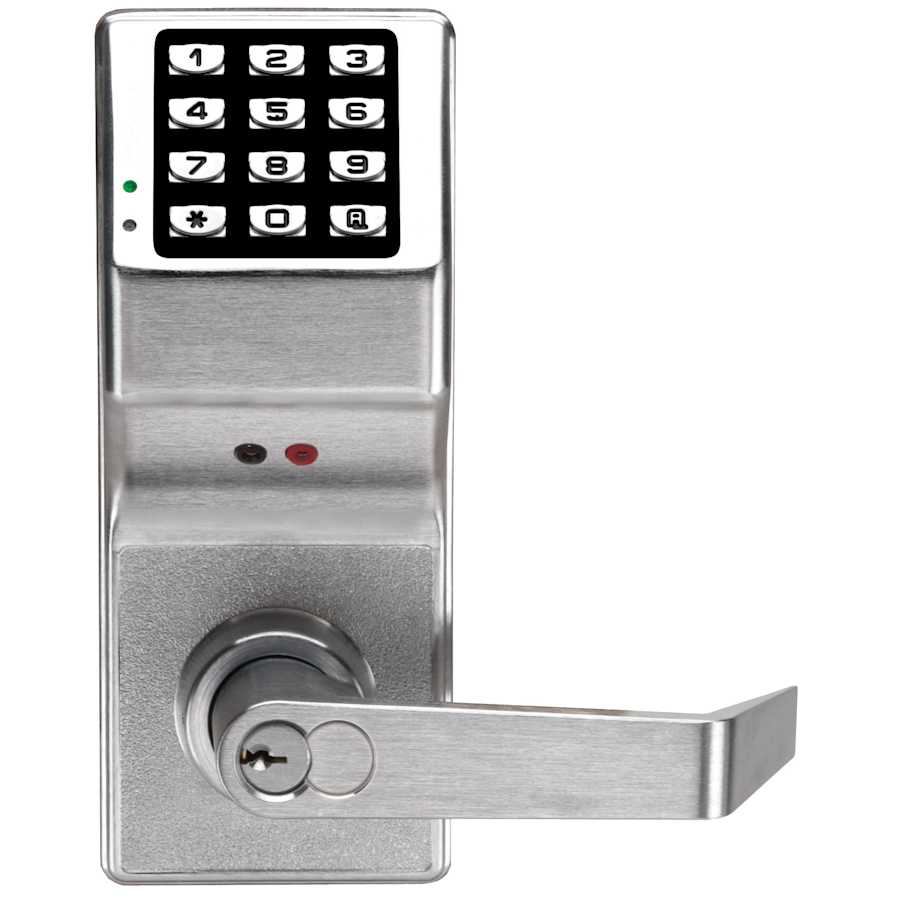

Trilogy T3 300-User Keypad Lock Single Cylinder Leverset
This leverset provides 300 user codes with a keypad on one side, an audit trail log, time-stamped by day, date, time and user, as well as scheduled, automatic lock/unlock events. Trilogy features global lockdown in seconds and eliminates door-to-door programming and audit trail queries by communicating wirelessly via ethernet or 802.11. All Trilogy’s feature the same rugged dependability, and tool-free keypad programming, easy wireless installation, in under an hour, and all have unsurpassed battery life with standard off-the-shelf batteries. Whether you are replacing standard cylindrical door knobs or retrofitting maintenance-prone mechanical pushbutton locks or looking for a more quickly deployed, down-time-free alternative to a hardwired access system Alarm Lock’s Trilogy is the access control solution you need. Just ask the growing list of hospitals, universities, retailers, airports, pharmacies and offices who standardize on them nationwide.
Alarm Lock is committed to supplying advanced access and egress solutions for office, health care, education, transportation, and government applications. From property management or campuses to courts and military applications, Alarm Lock offers high quality security and a variety of access options.
Features:
Easy to install: Retrofits most cylindrical locksets and digital locks
Multi-level user codes & one-time service codes
Free passage, group- or total lock-out modes
Fingertip programmable at vandalproof all-metal keypad
ADA compliant lever
Long-life battery operation – 100,000 cycles typical
Standalone battery operated – batteries included
Lever features clutch mechanism for ADA and longer life
Non-handed lever lock for easy installation and versatility
Programmable relay functions
Visual and audible entry indicators on front
Up to 40,000 event audit trail w/ time-date stamp for records
Supports 300 3-6 digit PIN codes
Master
Management
Supervisor
Basic users
One-time service
Specifications:
UL Listed, BHMA Grade 1 lockset with 3hr. fire rated latch
1600 event audit trail and 150 scheduled events
Fits 1.625″ – 1.875″ door thickness
Uses 5AA off-the-shelf batteries with low-battery alert
1.125″ x 2.75″ T strike and 1.25″ x 4.875″ ASA strike included
Includes 6-pin solid brass standard cylinder with Schlage SC1 keyway cylinder or upgrade to interchangeable core prep
Standard interchangeable core prep accepts 6 & 7 pin cylinders from Best, Falcon, Arrow, KSP, Medeco Keymark and Kaba Peaks
Dimensions: Outside housing: 8″ H x 3.25″ W x 1.875″ D, Inside housing: 8.25″ H x 3.25″ W x 1.75″ D
Additional Alarm Lock Links
View the Manufacturer Warranty
Browse all Alarm Lock Products
Alarm Lock Trilogy T3 Collection
Specifications
| Thermostat | Modern |
| Material | Metal |
| Handshower | Left, Right, Reversible |
| Handle Material | Metal |
| Cylinder Type | Double Cylinder |
| Function | Electronic Keyless Entry, Keyless Entry |
| Keyway | C |
| Rosette Shape | Rectangle |
| Lever Shape | Straight |
| Auto-Lock Capable | Yes |
| Insulation Type | Keypad |
| Lit Keypad | No |
| Number of Codes | 300 |
| Remote Access | No |
| Temporary Access | Yes |
| Usage Monitoring | No |
| Battery Quantity | 5 |
| Maximum Users | 300 |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | 2 Year |
| Collection | 3000 |
| ANSI Certification | A115 |
| Certifications | ANSI, UL |
| ADA | Yes |
| BHMA Certification | Grade 1 |
| Fire Rated | Yes |
| Door Thickness | 1-3/4", 1-7/8" |
| Backset | 2-3/4", 2-3/8" |
| Handle Projection | 1.75 in. |
| Handle Width | 3.25 in. |
| Power Source | Battery |
| Battery Size | AA |
| Color | Antique Brass |
| Color Tone | Brass Tones |
