American Standard 18DB.9332211 Features:
Made of 18 gauge stainless steel
Drop-in or Undermount installation
Double basin sink with a 50/50 split
Sound absorbing pads prevents dish clatter and undercabinet condensation

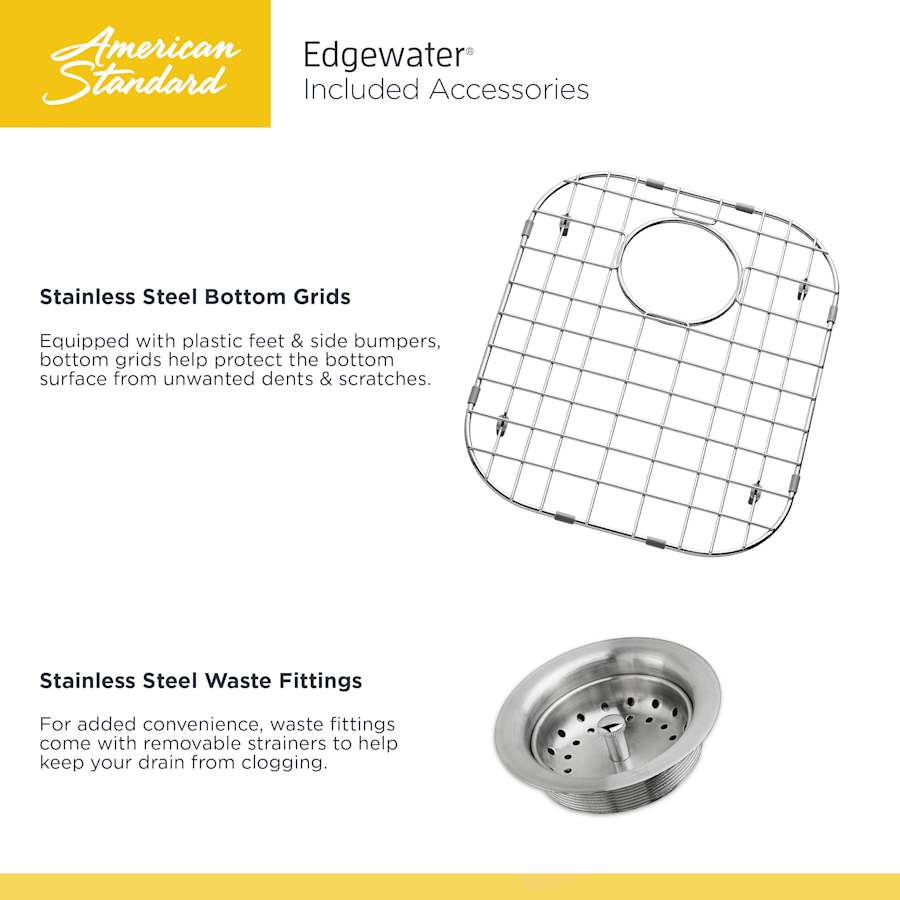

Basin rack included
Includes two drain fittings with strainer
Installation hardware and cut out template included
American Standard 18DB.9332211 Specifications:
Length: 33″ (left to right of the sink)
Width: 22″ (front to back of the sink)
Height: 9″ (top to bottom of the sink)
Right Basin Dimensions:
Length: 14-5/8″ (left to right)
Width: 16-5/8″ (front to back)
Height: 9″ (top to bottom)
Left Basin Dimensions:
Length: 14-5/8″ (left to right)
Width: 16-5/8″ (front to back)
Height: 9″ (top to bottom)
Drain Location: Rear
Drain Connection Size: 3-9/16″
Faucet Hole Size: 1-3/8″
Number of Faucet Holes: 1
Minimum Cabinet Size: 36″ (minimum left to right cabinet dimension)
Why Buy American Standard From Us:
We are an American Standard Preferred Authorized Online Dealer
We Only Ship Showroom Quality products vs Builder Grade quality found at big box retailers
All metal parts, not plastic like some of our competitors
Customer Care Experts Available 7 Days a Week to Serve You Before & After Purchase
A Showroom Experience from the Comfort of Your Home or Office
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products

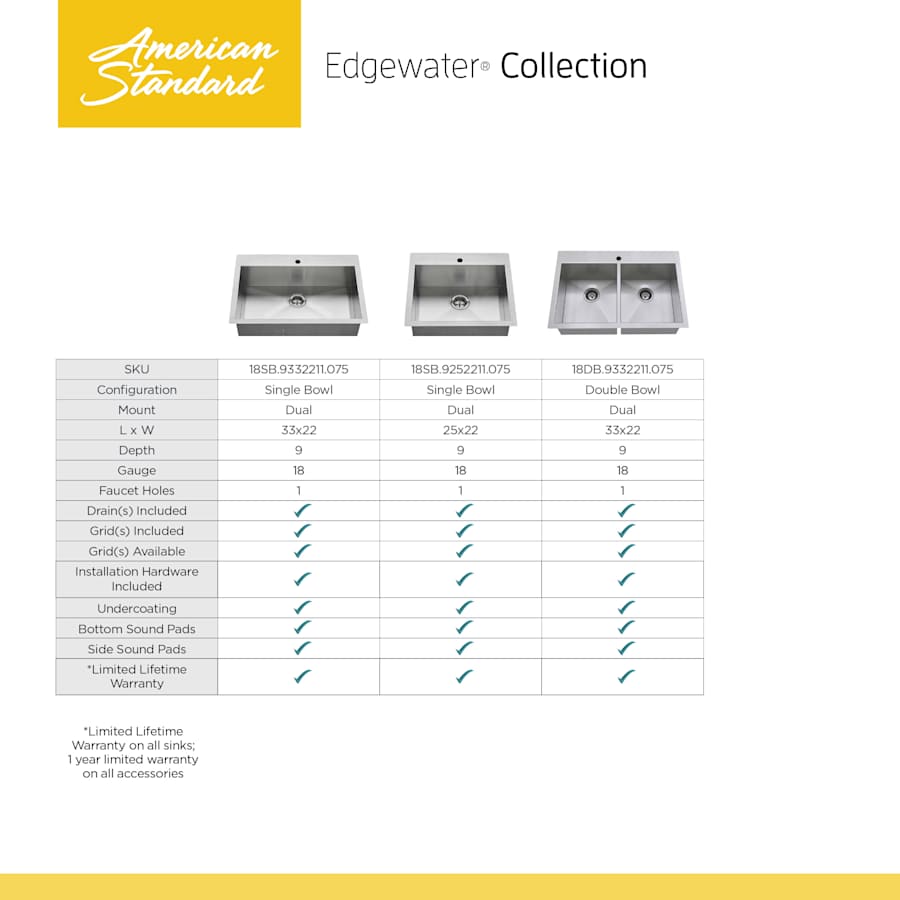

American Standard Edgewater Collection
Specifications
| Height | 9 in. |
| Width | 22 in. |
| Backplate Depth | 9 in. |
| Faucet Centers | 0 in. |
| Length | 33 in. |
| Nominal Length | 33 in. |
| Nominal Width | 22 in. |
| Drain Connection | 3.563 in. |
| Faucet Hole Size | 1.375 in. |
| Gauge | 18 |
| Sink Length | 33 in. |
| Minimum Cabinet Size | 36 in. |
| Basin Depth (Left) | 9 in. |
| Basin Depth (Right) | 9 in. |
| Basin Length (Left) | 14.625 in. |
| Basin Length (Right) | 14.625 in. |
| Basin Width (Left) | 16.625 in. |
| Basin Width (Right) | 16.625 in. |
| Material | Stainless Steel |
| Thermostat | Modern |
| Drain Placement | Rear |
| Faucet Holes | 1 |
| Insulation Type | Drop In, Undermount |
| Number Of Bathers | 2 |
| Overflow | No |
| Sink Shape | Rectangular |
| Apron Front | No |
| Basin Split | 50/50 |
| Farmhouse | No |
| Sound Dampening | Yes |
| Undercoating | Yes |
| Faucet Included | No |
| Installation Hardware Included | Yes |
| Basin Rack Included | Yes |
| Basket Strainer Included | No |
| Colander Included | No |
| Cutting Board Included | No |
| ADA | No |
| Certifications | ASME |
| Manufacturer Warranty | Limited Lifetime |
| ASSE Code | A112.19.3 |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
