American Standard 20SB.8252283C Features:

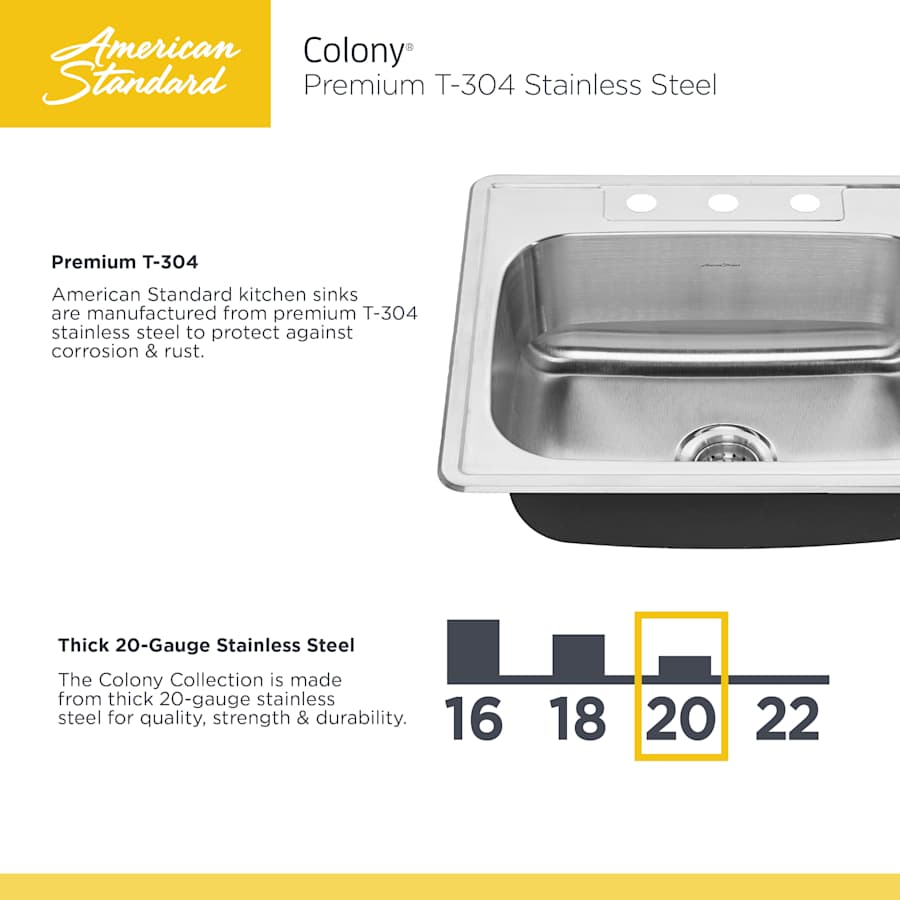

Made of 20 gauge stainless steel
Drop-in installation
Single basin design provides maximum workspace

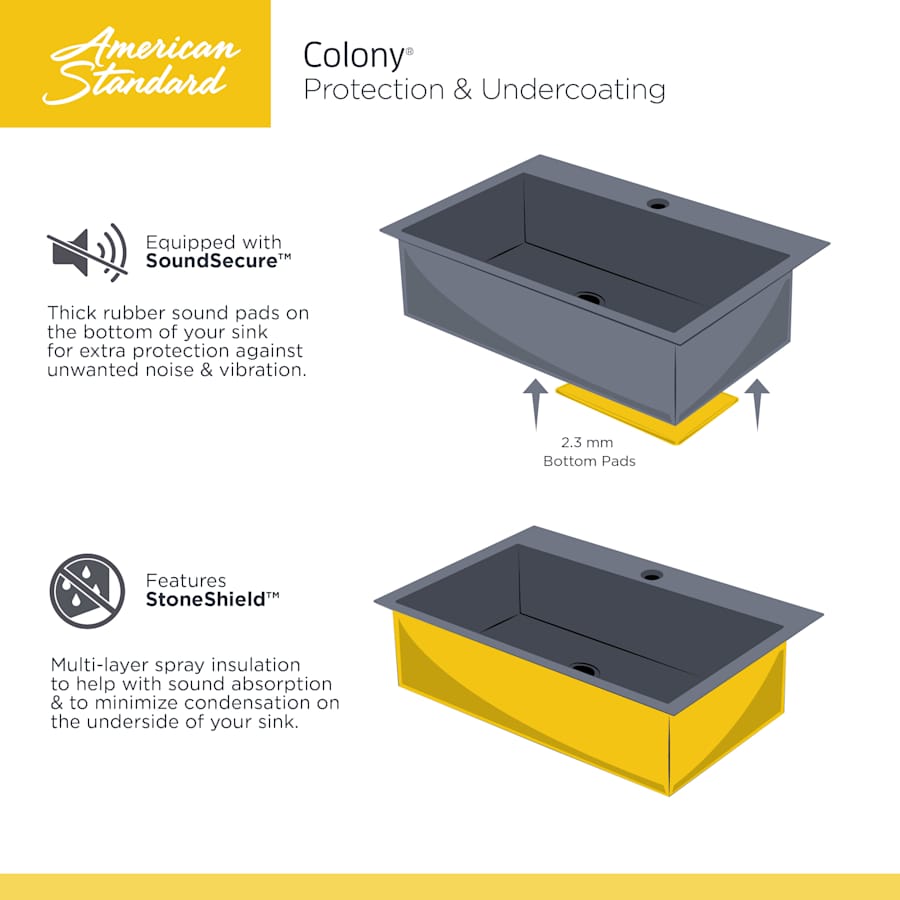

Sound absorbing pads prevents dish clatter and undercabinet condensation
Colony Pro Stainless Steel faucet with single lever handle and deck plate included
Includes drain fitting with strainer
Installation hardware and cut out template included
American Standard 20SB.8252283C Sink Specifications:
Length: 25″ (left to right of the sink)
Width: 22-1/16″ (front to back of the sink)
Height: 8″ (top to bottom of the sink)
Basin Length: 21-3/8″ (left to right of the basin)
Basin Width: 15-15/16″ (front to back of the basin)
Drain Location: Center
Drain Connection Size: 3-9/16″
Faucet Hole Size: 1-1/2″
Number of Faucet Holes: 3
Minimum Cabinet Size: 27″ (minimum left to right cabinet dimension)
American Standard 20SB.8252283C Faucet Specifications:
Overall Height: 6-1/2″ (counter top to highest point of faucet)
Spout Height: 4-9/10″ (counter top to water outlet)
Spout Reach: 8-1/2″ (center of faucet base to center of water outlet)
Flow Rate: 1.5 gallons-per-minute
Faucet Centers: 8″ (distance between handle installation holes)
Faucet Holes: 3 (number of holes required)
Maximum Deck Thickness: 1″
Escutcheon Width: 10-3/8″
Why Buy American Standard From Us:
We are an American Standard Preferred Authorized Online Dealer
We Only Ship Showroom Quality products vs Builder Grade quality found at big box retailers
All metal parts, not plastic like some of our competitors
Customer Care Experts Available 7 Days a Week to Serve You Before & After Purchase
A Showroom Experience from the Comfort of Your Home or Office
Â
Additional American Standard Links
View the Manufacturer Warranty
Browse all American Standard Products
American Standard Colony Collection
Specifications
| Width | 22.063 in. |
| Backplate Depth | 8 in. |
| Bar Length | 21.375 in. |
| Base Width | 15.938 in. |
| Faucet Centers | 8 in. |
| Length | 25 in. |
| Nominal Length | 25 in. |
| Nominal Width | 22 in. |
| Drain Connection | 3.563 in. |
| Flow Rate (GPM) | 1.5 |
| Faucet Hole Size | 1.5 in. |
| Max Deck Thickness | 1 in. |
| Spout Height | 4.9 in. |
| Spout Reach | 8.5 in. |
| Water Connection | 1/2" |
| Escutcheon Width | 10.375 in. |
| Handle Height | 6.5 in. |
| Gauge | 20 |
| Sink Length | 25 in. |
| Spout Swivel | 360 Degrees |
| Minimum Cabinet Size | 27 in. |
| Faucet Height | 6.5 in. |
| Sink Height | 8 in. |
| Sink Width | 22.063 in. |
| Material | Stainless Steel |
| Thermostat | Traditional |
| Drain Placement | Center |
| Faucet Holes | 3 |
| Insulation Type | Drop In |
| Number Of Bathers | 1 |
| Overflow | No |
| Sink Shape | Rectangular |
| Handle Material | Metal |
| Handle Style | Lever |
| Number Of Handles | 1 |
| Spout Type | Swivel |
| Apron Front | No |
| Faucet Type | Kitchen Faucet |
| Farmhouse | No |
| Sound Dampening | Yes |
| Undercoating | Yes |
| Pullout Spray | No |
| Faucet Material | Brass |
| Sink Material | Stainless Steel |
| Drain Assembly Included | Yes |
| Faucet Included | Yes |
| Handshower Included | Yes |
| Installation Hardware Included | Yes |
| Escutcheon Included | Yes |
| Basin Rack Included | No |
| Basket Strainer Included | No |
| Colander Included | No |
| Cutting Board Included | No |
| Sidespray | No |
| ADA | No |
| Certifications | NSF, ASME, CSA |
| Manufacturer Warranty | Limited Lifetime |
| ASSE Code | A112.18.1, A112.19.3 |
| CA Drought Compliant | Yes |
| CSA Code | B125.1 |
| Low Lead Compliant | Yes |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
