Electronic Touchpad with Handleset: The electronic touchpad allows you to lock and unlock the handleset without the use of a key. It has the versatility of keyless operation while still retaining the functionality of keyed entry, having both a touchpad and lock cylinder on the outside and a thumb turn on the interior. It’s perfect for front doors, side or back doors, and garage entry doors.
Â
Features:
Tested to exceed ANSI/BHMA Grade 2 security requirements
Constructed of solid forged brass for durability and dependability
Covered by Baldwin’s 1 year electronics, 5 year finish, and limited lifetime mechanical manufacturer warranties

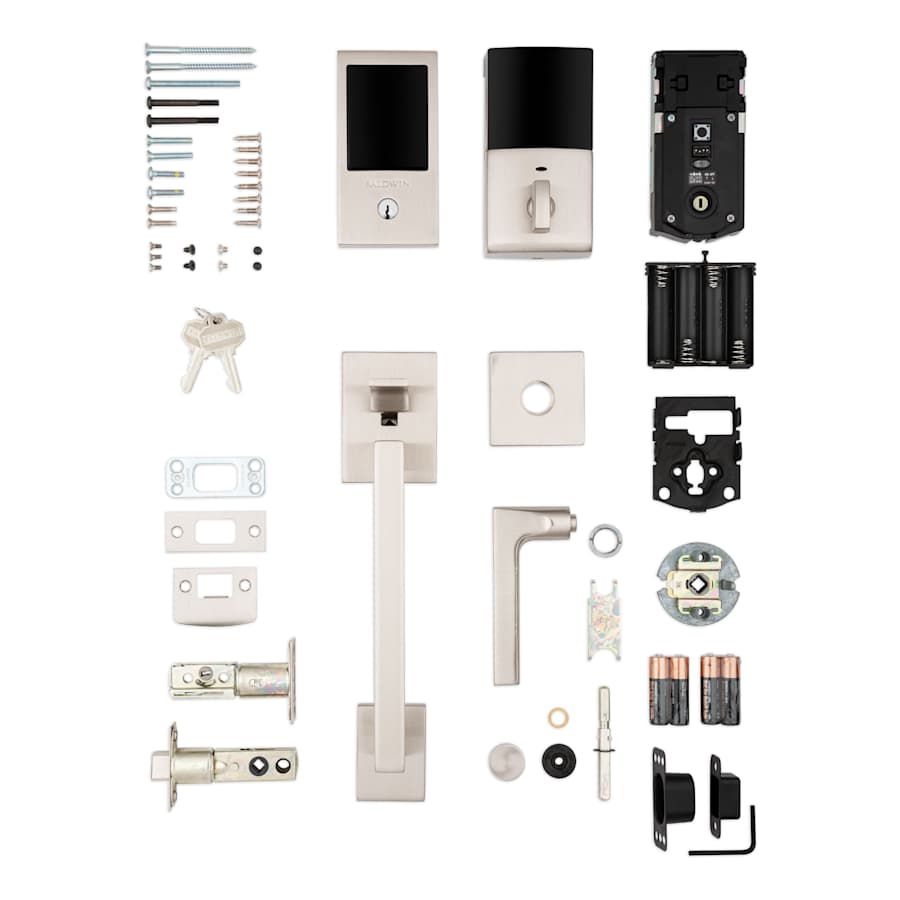

Installs easily with all necessary mounting hardware included
4 AA batteries required for deadbolt operation included
Up to 16 customizable user codes with 4-8 digits each

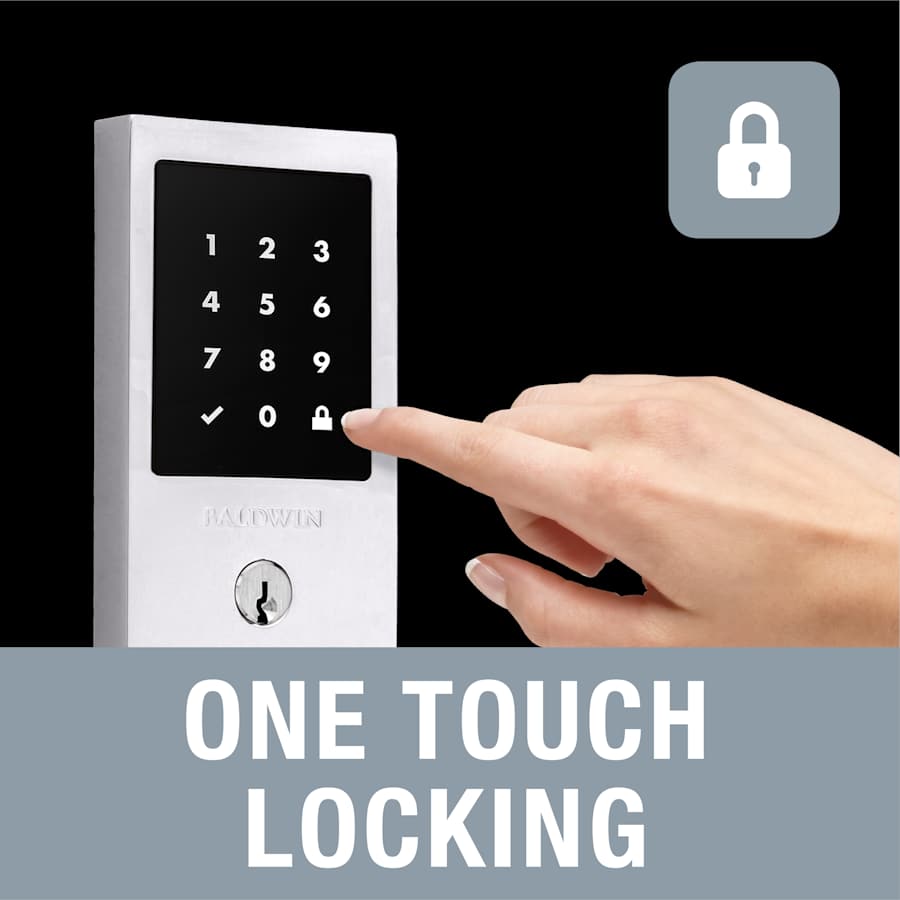

One touch locking allows for you to secure your door quickly without need of key or code
20 minute UL rated deadbolt
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Mounting Center to Center: 5-1/2″
Grip Center to Center: 8″
Door Thickness: 1-3/4″
Handing: Left
Cylinder: 5 Pin C
Latch Faceplate: Square Corner
Overall Height: 17-3/16″
Handle Height: 11-15/16″
Handle Width: 2-5/8″
Handle Projection: 2-3/4″
Trim Height: 11-15/16″
Trim Width: 2-3/4″
Interior Handle Length: 4-1/2″
Interior Handle Projection: 2-7/16″
Interior Trim Height: 8-1/4″
Interior Trim Width: 3″
Material: Brass
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Minneapolis Collection
Specifications
| Product Weight | 10, 9.35 lbs. |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4" |
| Edge Bore | 1" |
| Handle Projection | 2.72, 2.71875 in. |
| Center to Center | 5.5 in. |
| Grip Center to Center | 8 in. |
| Interior Handle Length | 4.47, 4.46875 in. |
| Interior Handle Projection | 2.4375, 2.44 in. |
| Interior Trim Height | 8.25 in. |
| Interior Trim Width | 2.96875, 2.97 in. |
| Overflow Height | 17.19, 17.1875 in. |
| Trim Height | 11.90625, 11.91 in. |
| Trim Width | 2.78, 2.78125 in. |
| Handle Height | 11.90625, 11.91 in. |
| Handle Width | 2.625 in. |
| Material | Brass |
| Thermostat | Contemporary |
| Shape | Flat, Straight |
| Cylinder | 5 Pin |
| Cylinder Type | Single Cylinder |
| Handshower | Left |
| Keyway | C |
| Latch Faceplate | Square Corner |
| Trim Design | Minneapolis |
| Handle Style | Grip, Lever |
| Battery Quantity | 4 |
| Handle Material | Metal |
| Concealed Screws | Yes |
| Function | Keyless Entry, Electronic Keyless Entry |
| Handle Design | Minneapolis |
| Interconnected | No |
| Mounting | Sectional |
| Adjustable Throughbolt | No |
| Interior Handle Style | Lever |
| Solid Construction | Solid Brass |
| Smart Home | No |
| Lock Style | Single Point |
| Insulation Type | Touchscreen |
| Lit Keypad | Yes |
| Number of Codes | 16 |
| Usage Monitoring | No |
| Auto-Lock Capable | Yes |
| Motorized Deadbolt | Yes |
| Remote Access | No |
| Temporary Access | Yes |
| Power Source | Battery |
| Battery Size | AA |
| ADA | No |
| Certifications | ANSI, UL |
| Collection | Estate Pre-Configured, Touchscreen, Estate |
| Country Of Origin | Mexico |
| Manufacturer Warranty | 1 Year Electronics, 1 Year Finish, 5 Year Finish, Limited Lifetime Mechanical |
| Approved for Commercial Use | No |
| Series | Minneapolis |
| ANSI Certification | A156.36 |
| BHMA Certification | Grade 2 |
| Interior Included | Yes |
| Battery Included | Yes |
| Cylinder Included | Yes |
| Color | Antique Nickel |
| Color Tone | Nickel Tones |
