Westcliff Single Cylinder Handleset with Traditional Round Rose and Round Knob on Interior
Single Cylinder: Baldwin’s single cylinder handleset has a keyed cylinder on the exterior and a thumbturn on the interior. Unlocking and locking the deadbolt is done by either a key on the exterior or via the thumbturn on the interior. This handleset includes both the interior and the exterior for a complete entrance solution.
Features:
Solid forged brass construction built to last a lifetime.
Baldwin 5-pin SmartKey Re-Key Technology
Versatility and Easy Installation:
Adjustable Latch for both 2-3/8″ and 2-3/4″ backset
Round Corner, Square Corner and Drive-In Latch Plates
Includes both Round Corner and Square Corner Strike Plates
Guide Post for Easy Installation
Accommodates door thickness 1-3/8″ to 2″.
2-1/8″ cross bore and 1″ edge bore for latch.
Tested to exceed ANSI/BHMA Grade 2 security.
Solid brass deadbolt latch with hardened steel roll pin for additional strength and security.

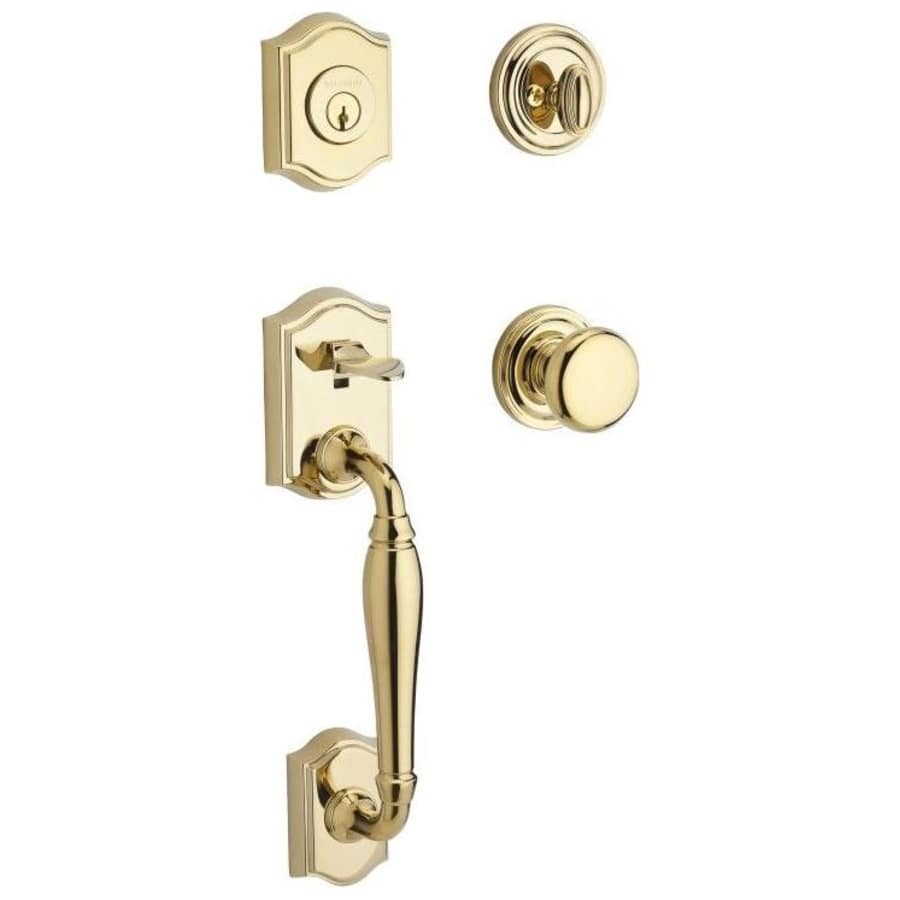

Shown with Round Knob and Traditional Round Rose. See Baldwin SC.WES to completely customize this handleset with more finish and interior options.
Limited Lifetime Mechanical Warranty and Limited 25 Year Finish Warranty.
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Baldwin Reserve combines Baldwin’s legacy of quality and craftsmanship with advanced technology to deliver a personalized blend of styles that are more accessible to builders, designers and homeowners. Baldwin Reserve offers a range of Baldwin’s most traditional, contemporary and rustic styles as well as new authentic Baldwin designs inspired by today’s design trends. Mix and match Baldwin Reserve. Personalize your home with a custom configuration that combines Baldwin’s legacy of craftsmanship with a custom look for every architectural style.
Additional Baldwin Links
View the Manufacturer Warranty
Browse all Baldwin Products
Baldwin Westcliff Collection
Specifications
| Collection | Reserve |
| Approved for Commercial Use | No |
| BHMA Certification | Grade 2 |
| Series | Westcliff |
| Material | Brass |
| Thermostat | Traditional |
| Cylinder | SmartKey 5 Pin |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Handshower | Left, Right, Reversible |
| Keyway | KW1 |
| Latch Faceplate | Drive-In, Square Corner, Round Corner |
| Mounting | Sectional |
| Solid Construction | Solid Brass |
| Lock Style | Single Point |
| Backset | 2-3/4", Adjustable 2-3/8" or 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Door Thickness | 2", 1-7/8", 1-3/4" |
| Grip Center to Center | 8.40625 in. |
| Handle Projection | 3.0625 in. |
| Trim Height | 12.0625 in. |
| Trim Width | 2.6875 in. |
| Interior Trim Height | 2.5625 in. |
| Interior Trim Width | 2.5625 in. |
| Interior Handle Width | 2.1875 in. |
| Interior Included | Yes |
| Cylinder Included | Yes |
| Color | Polished Brass |
| Color Tone | Brass Tones |
