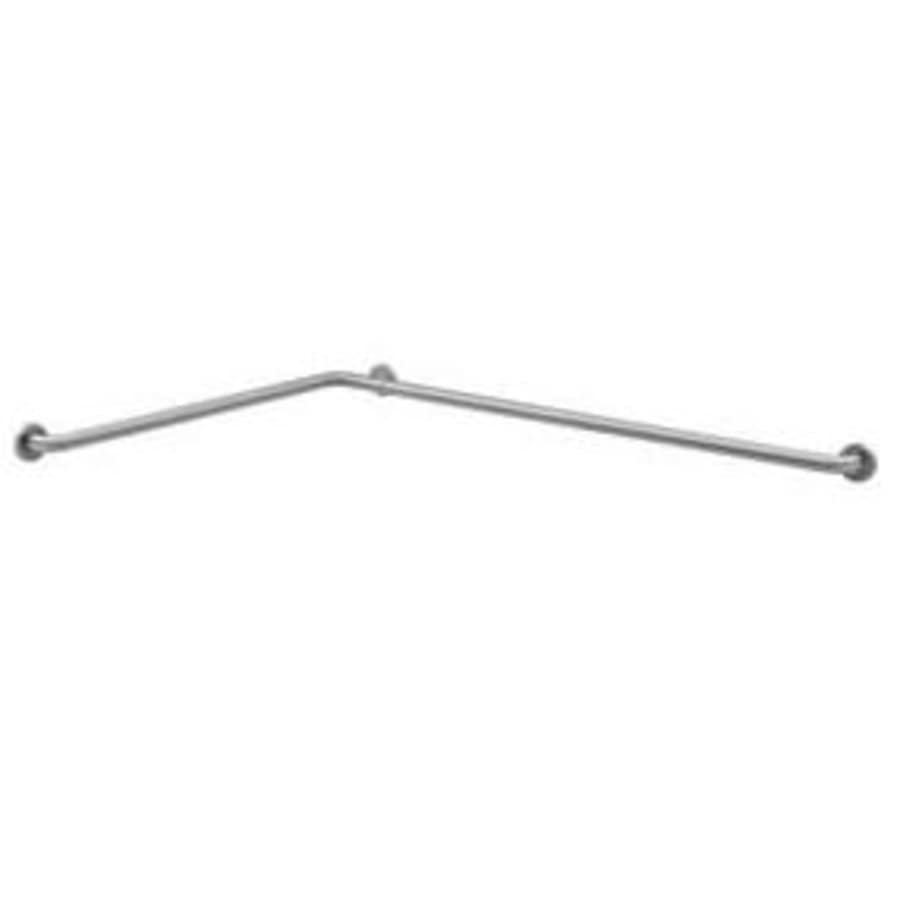

42″ W x 54″ D (107 x 137cm), 1-1/4″ (32mm) dia. Constructed of 18-gauge (1.2mm), type 304 satin-finish stainless steel tubing. Concealed mounting flange 1/8″ (3mm) thick, type 304 stainless steel plate, 2″ W x 3 1/8″ H (50 x 80mm), with screw holes for concealed anchors. Cover is 22-gauge (0.8mm), type 304 stainless steel with satin finish, 3 1/4″ (85mm) diameter. Cover snaps over mounting flange to conceal screws.
Additional Bobrick Links
Browse all Bobrick Products
Specifications
Characteristics and Features
| Shape | L-Shaped |
Warranty and Product Information
| Approved for Commercial Use | Yes |
| Color | Satin Stainless Steel |
