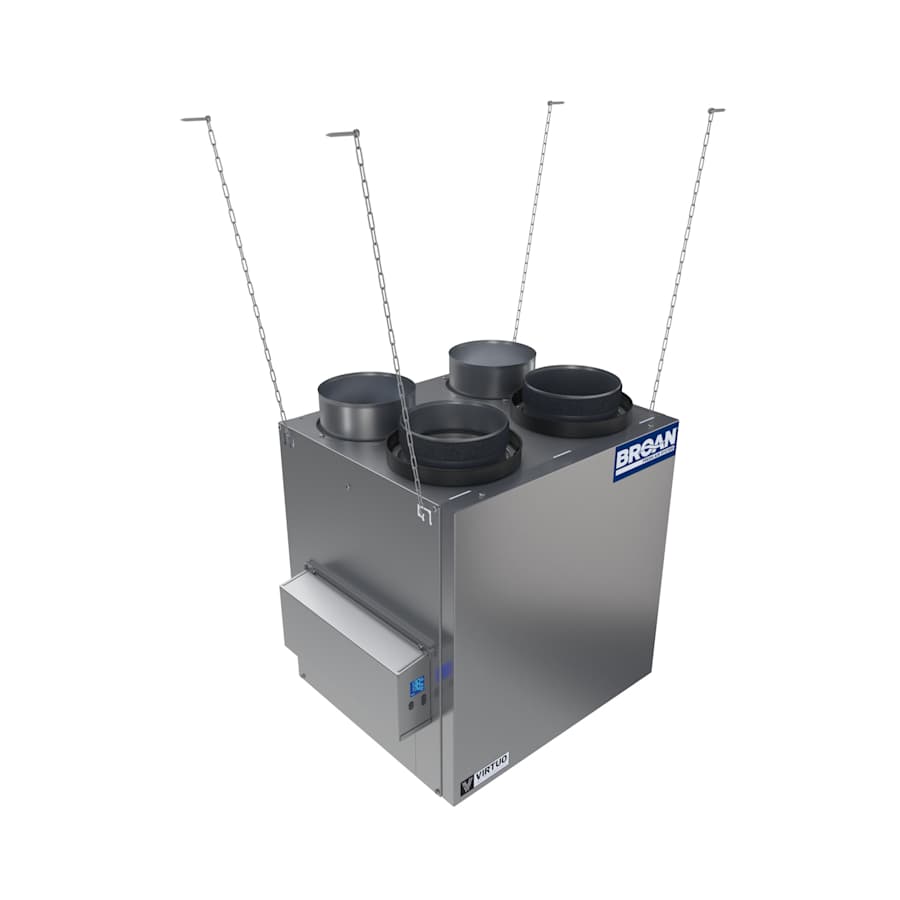

The Broan AI series is the most advanced residential fresh air system on the market. This unit features their VIRTUO™ Air Technology which is specifically designed to provide fresh air in any season and in any installation situation. Easy installation combined with auto-balancing means fresh, filtered, and comfortable air without the need for specialized measurement tools or added install time.
Features:

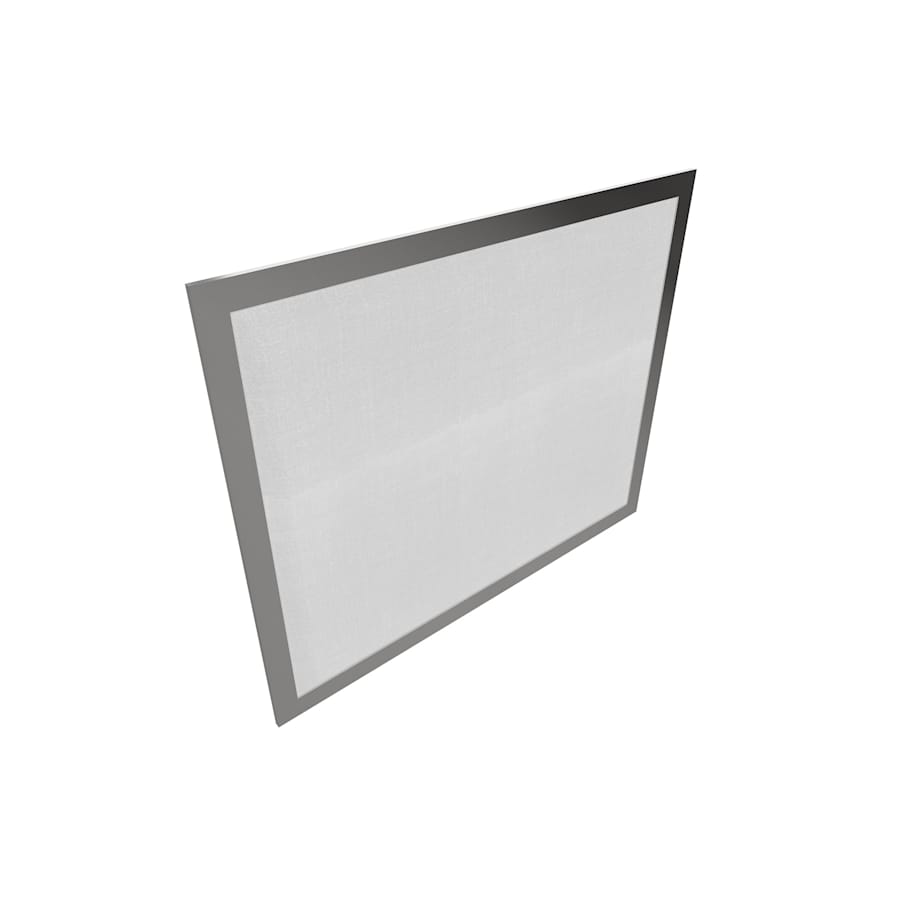

MERV 8 filters are installed, capturing lint, dust, pollen, dust mites, debris and spores for superior air quality and comfort. Even more powerful filtration is available with an optional MERV 13 filter upgrade
Powerful, reliable and quiet PMSM ECM fan motors provide up to 60% energy savings compared to other units on the market
Developed on a compact, universal platform with several mounting options to save space and reduce install time
With a selectable airflow speed range from 35-133 CFM, this AI Series model will meet the needs of a medium-large size home
Unit setup, balancing and diagnostics are made easy with complete control using the integrated LCD screen providing real-time airflow measurements, automatic system balancing and simple diagnostic codes

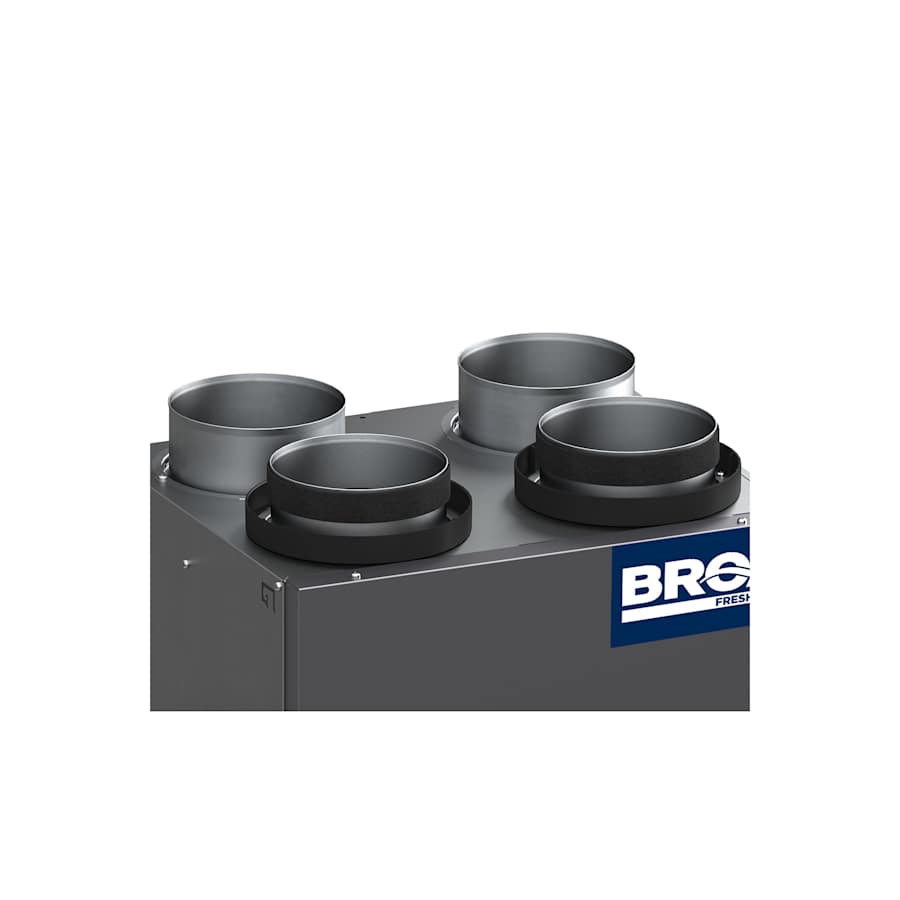

This product is equipped with top port configurations
Product Technologies:
VIRTUO™ Air Technology: Continuously monitors the changing indoor and outdoor conditions to provides fresh, filtered and healthy air throughout the home
Specifications:
CFM: 35, 133
Duct Size: 5″ Round
Height: 21-1/2″
Width: 21″
Depth: 16-3/10″
Amperage: 1.36A
Voltage: 120V
Wattage: 163W
Additional Broan Links
View the Manufacturer Warranty
Browse all Broan Products
Broan AI Collection
Specifications
| Height | 21.5 in. |
| Width | 21 in. |
| Depth | 16.3 in. |
| Product Weight | 37 lbs. |
| Duct Size | 5" Round |
| CFM | 35 |
| CFM (High) | 133 |
| Certifications | HVI, UL |
| Collection | AI |
| Approved for Commercial Use | No |
| Country Of Origin | Canada |
| Manufacturer Warranty | 5 Year Energy Recovery Core |
| Title 20 Compliant | Yes |
| Fire Rated | No |
| Wattage | 163 |
| Amperage | 1.36 |
| Voltage | 120 |
| Power Source | Plug-In |
| Energy Recovery | Yes |
| Heat Recovery | No |
| Insulation Type | Ceiling Mounted, Wall Mounted |
| Material | Galvanized Steel |
| Duct Discharge | Vertical |
| Humidity Sensing | No |
| Fresh Air | Yes |
| Air Filter Type | Washable Air Filters |
| Ductless | No |
