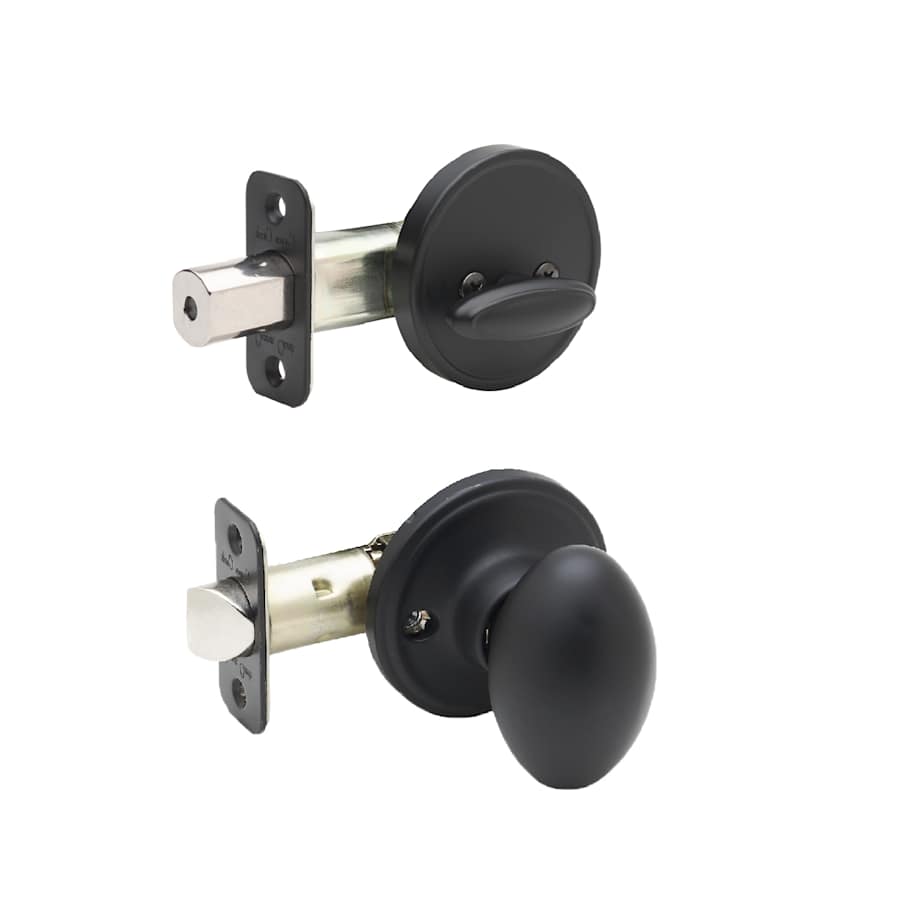

Interior Pack (Single Cylinder) Function: Single cylinder interior packs complete the interior mounting of a working mechanical lock set, and require an associated exterior single cylinder trim for installation. Includes a thumbturn for the interior side of the deadbolt and a knob or lever for the inside of the door.
Features:
Exceeds criteria for BHMA Grade 3 certification
Durable construction and high attention to detail
Premium finish maintains its appearance over time
Designed for both left and right hand door configurations
Includes square corner, round corner, or drive-in latch faceplate
Complies with standards of the Americans with Disabilities Act (ADA)
Covered under Limited Lifetime Mechanical and 5 Year Finish Warranty
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″ to 1-3/4″
Handing: Reversible Left or Right
Trim Height: 2-5/8″
Trim Width: 2-5/8″
Handle Height: 2-1/2″
Handle Projection: 2-1/2″
Latch Faceplate: Round Corner, Square Corner or Drive-In
Cylinder: 5 Pin KW1
Material: Brass, Steel, Zinc
Product Variations:
EK2890: Dummy Handleset Interior Pack
EK2810 (This Model): Single Cylinder Handleset Interior Pack
Additional Copper Creek Links
View the Manufacturer Warranty
Browse all Copper Creek Products
Copper Creek Colonial Collection
Specifications
| Thermostat | Contemporary |
| Material | Brass, Steel, Zinc |
| Handle Material | Metal |
| Handle Style | Knob |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Square Corner, Drive-In, Round Corner |
| Style | Contemporary/Modern |
| Concealed Screws | No |
| Cylinder | 5 Pin KW1 |
| Cylinder Type | Single Cylinder |
| Function | Keyed Entry |
| Keyway | KW1 |
| Rosette Shape | Round |
| Locking Mechanism | Thumbturn |
| Panic Proof | No |
| Shape | Egg |
| Lock Style | Single Point |
| Interconnected | No |
| Handle Design | Erin |
| ADA | No |
| Country Of Origin | Taiwan |
| Manufacturer Warranty | Limited Lifetime Mechanical, 5 Year Finish |
| Approved for Commercial Use | No |
| Collection | Colonial |
| Series | Erin |
| Certifications | ANSI, UL |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 3 |
| Fire Rated | No |
| Edge Bore | 1" |
| Handle Height | 2.5 in. |
| Backset | 2-3/4", Adjustable 2-3/8" or 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/8", 1-5/8", 1-3/4", 1-1/2" |
| Handle Projection | 2.5 in. |
| Trim Height | 2.625 in. |
| Trim Width | 2.625 in. |
| Cylinder Included | Yes |
| 28 Degree Latch | No |
| Interchangeable Core | No |
| Color | Antique Nickel |
| Color Tone | Nickel Tones |
