Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Corbin Russwin is represented by ASSA ABLOY Door Security Solutions

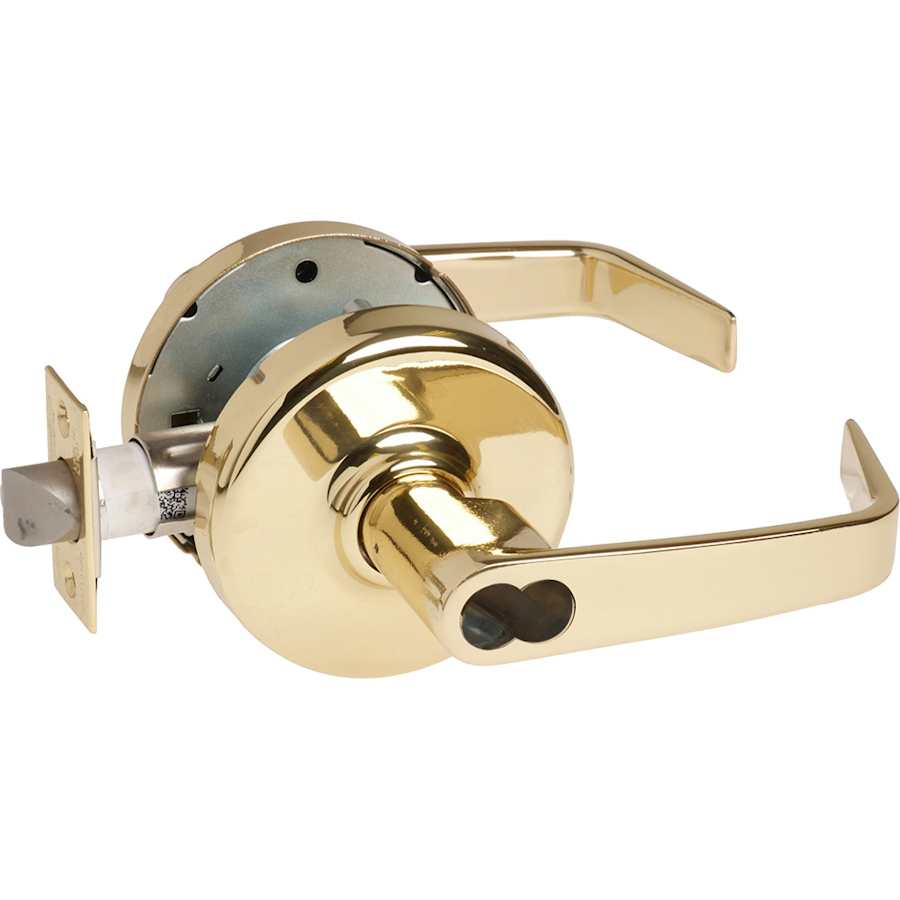

An ANSI/BHMA Grade 2 lever lockset which provides an outstanding combination of value and performance, the CL3800 Series is an ideal lever lockset for light commercial applications. It’s designed to complement the look of other Corbin Russwin bored locks, so you get a variety of performances with a similar look and feel.
Lock Function:
Latchbolt operated by handle either side, unless turn button locks outside
Inside handle always free
Turning inside handle unlocks outside handle unless button is pushed and turned
Handle is free-wheeling in locked position
Pushing and turning button locks outside handle, requiring a key at all times
Turning inside handle will not unlock outside handle until button is disengaged
Allows for free egress

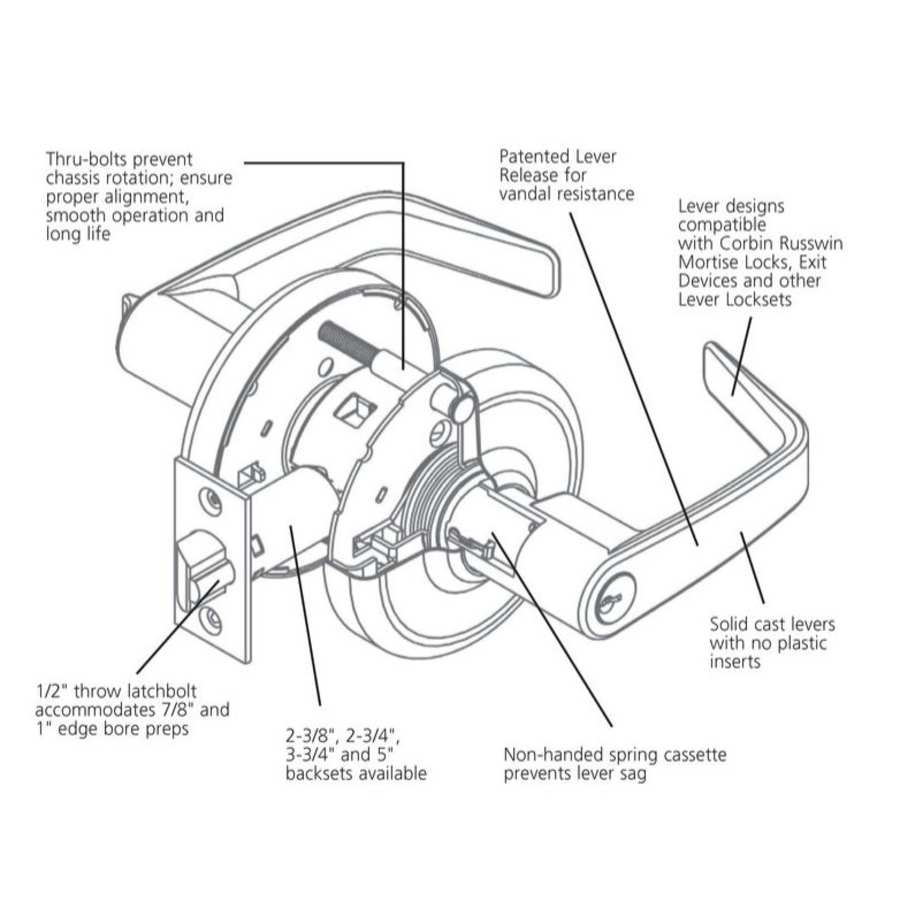

Features:
Exceeds criteria for BHMA Grade 2
All metal construction for enhanced durability and security
Reversible handing for easy installation
Includes a 1 year limited warranty
UL listed 3 hour rating
Compliant with Americans with Disabilities Act (ADA)
Specifications:
Backset: 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Handing: Reversible, Left or Right
Door Thickness: 1-3/8″ to 1-7/8″
Handle Length: 4-1/2″
Trim Projection: 2-13/16″
Trim Width: 3-1/2″
Trim Height: 3-1/2″
Interchangeable Core: Yes
Interchangeable Core Type: FSIC
Cylinder Included: No
Latch Faceplate: Square Corner
Product Weight: 3.2 lbs.
Material: Brass, Steel, Zinc
Additional Corbin Russwin Links
View the Manufacturer Warranty
Browse all Corbin Russwin Products
Corbin Russwin CL3800 Collection
Specifications
| Product Weight | 3.2 lbs. |
| Backset | 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-3/4", 1-3/8", 1-5/8", 1-7/8" |
| Edge Bore | 1" |
| Handle Length | 4.5 in. |
| Handle Projection | 2.8125 in. |
| Trim Height | 3.5 in. |
| Trim Width | 3.5 in. |
| Material | Brass, Steel, Zinc |
| Thermostat | Transitional |
| Cylinder Type | Single Cylinder |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Square Corner |
| Rosette Shape | Round |
| Concealed Screws | Yes |
| Function | Keyed Entry |
| Lever Shape | Straight |
| Panic Proof | Yes |
| Locking Mechanism | Push Button, Thumbturn |
| Interchangeable Core Type | FSIC |
| ADA | Yes |
| Certifications | ANSI, UL |
| Collection | Newport |
| Country Of Origin | USA |
| Made in America | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Approved for Commercial Use | Yes |
| Series | CL3800 |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Fire Rated | Yes |
| 28 Degree Latch | No |
| Cylinder Included | No |
| Interchangeable Core | Yes |
| Color | Polished Brass |
| Color Tone | Brass Tones |
