The new DALS Lighting LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.
Features
Complete unit, no separate housing required
Suitable for new construction or remodel applications

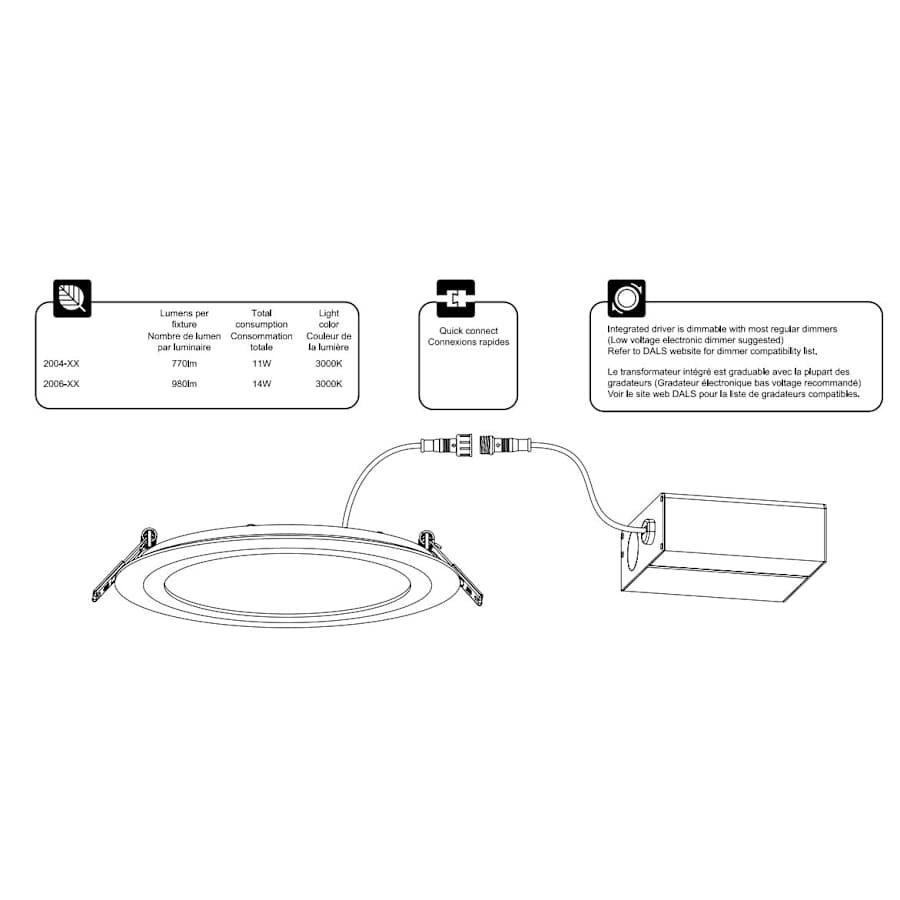

Includes a juncton box with integrated LED driver (can be daisy chained)
Smooth 360° wide spread
Durable aluminum construction with a frosted lens
Insulated ceiling rated and airtight
Dimmable with most Triac and ELV dimmers (ELV recommended)
Recommended dimmers: Lutron DVELV-300P or LUTRON SELV-300P
ETL rated for damp locations
Covered under manufacturer’s 5 year warranty
Also available in 6″ Trim size

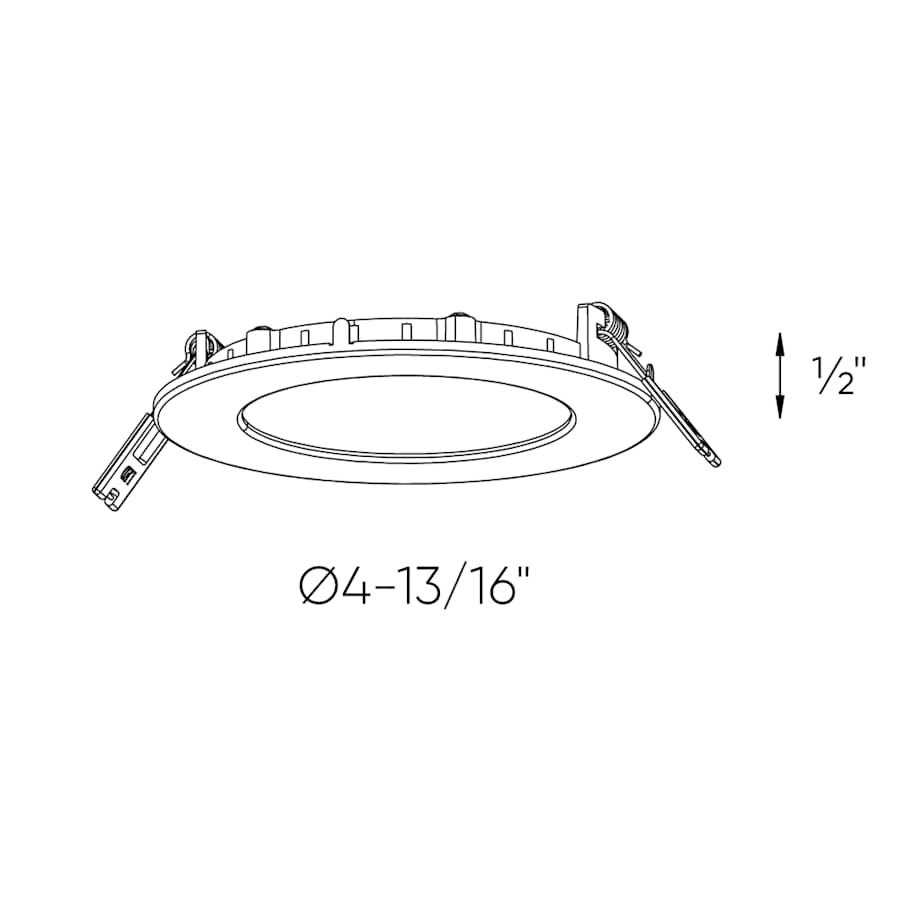

Dimensions
Trim Size: 4″
Total Width / Diameter:Â 4-13/16″
Height: 1/2″
Cutout Size: 4-1/4″
Electrical Specifications
Luminary Type: Integrated LED
Delivered Lumens: 770
Color Temperature: 3000K
Color Rendering Index: 80 CRI
Wattage: 11 watts
Average Hours: 35000
Additional DALS Lighting Links
Browse all DALS Lighting Products
Specifications
| Height | 0.5 in. |
| Width | 4.8 in. |
| Depth | 4.8 in. |
| Trim Size | 4 in. |
| Cutout Size | 4.25 in. |
| Bulb Base | Integrated LED |
| LED | Yes |
| Number of Light Source(s) | 1 |
| Shade Color | Frosted |
| Showerhead Shape | Disk |
| Thermostat | Contemporary |
| Dimmable | Yes |
| Light Direction | Down Lighting |
| Material | Aluminum |
| Bubbler Type | LED |
| Trim Style | Shower Trims, Wafer Trims |
| Airtight | Yes |
| Color Temperature | 3000K |
| Housing Type | Remodel Housing, New Construction Housing |
| Shallow Ceiling Compatible | Yes |
| Average Hours | 35000 Hours |
| Color Rendering Index (CRI) | 80 |
| Lumens | 770 |
| Wattage | 11 |
| Voltage | 120 |
| Voltage Type | Line Voltage (110-120V) |
| Certifications | ETL |
| Location Rating | Damp Location |
| Country Of Origin | China |
| Manufacturer Warranty | 5 Year |
| IC Rating | IC |
| Bulb Included | Yes |
| Shade | Yes |
| Color | White |
| Color Tone | Whites |
