The new DALS Lighting LED Panel lights are more accessible than ever before. The sleek and minimal construction allows for the easiest of installations.
Features
Switch selectable color temperatures: 2700K/3000K/3500K/4000K/5000K
Complete unit, no separate housing required
Suitable for new construction or remodel applications
Includes a juncton box with integrated LED driver (can be daisy chained)
Smooth 360° wide spread
Durable aluminum construction with a frosted lens
Insulated ceiling rated and airtight
Dimmable with most Triac and ELV dimmers (ELV recommended)
Recommended dimmers: Lutron DVELV-300P, Lutron DVCL-153P, or Lutron CTCL-153P
ETL rated for wet locations
Covered under manufacturer’s 5 year warranty
Also available in 3″ & 4″ Trim sizes

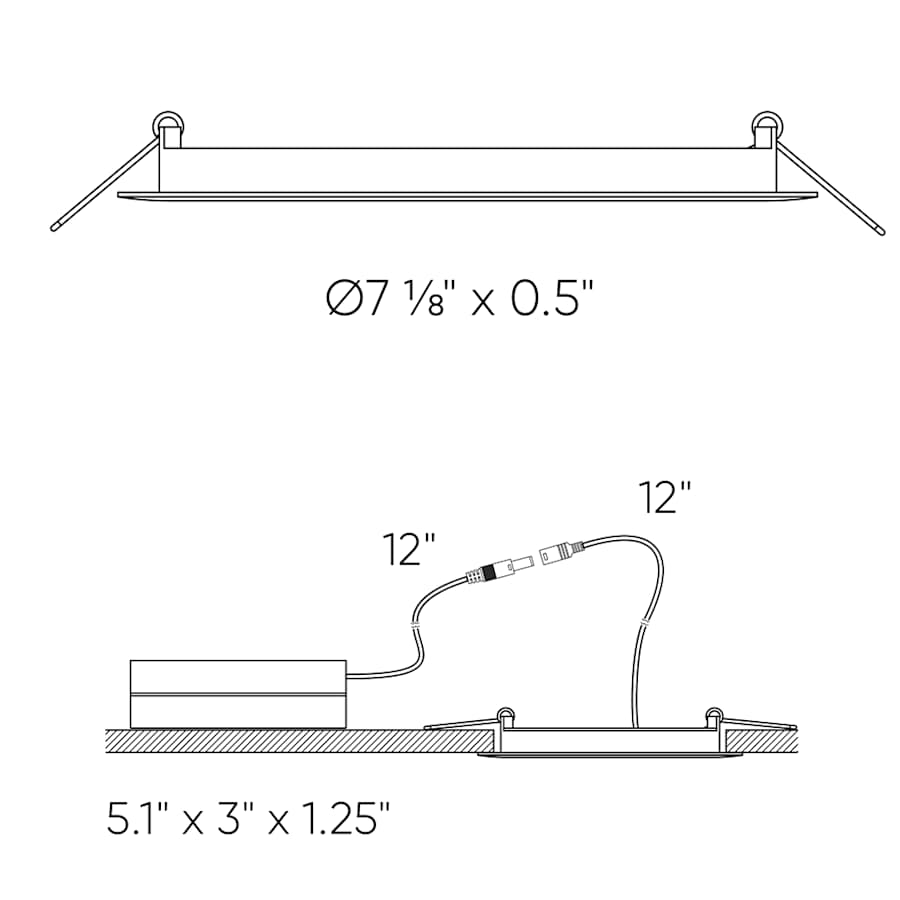

Dimensions
Trim Size: 6″
Total Width / Diameter: 7-1/8″
Height: 1/2″
Cutout Size: 6-1/2″
Electrical Specifications
Luminary Type: Integrated LED
Delivered Lumens: 980
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
Color Rendering Index: 80 CRI
Wattage: 14Â watts
Average Hours: 35000
Additional DALS Lighting Links
Browse all DALS Lighting Products
DALS Lighting LED Panel Collection
Specifications
| Depth | 7.125 in. |
| Height | 0.5 in. |
| Width | 7.125 in. |
| Trim Size | 6 in. |
| Cutout Size | 6.5 in. |
| Material | Aluminum |
| Thermostat | Contemporary |
| Bulb Base | Integrated LED |
| Bubbler Type | LED |
| Color Temperature | 2700K, 3000K, 3500K, 4000K, 5000K |
| Dimmable | Yes |
| LED | Yes |
| Light Direction | Down Lighting |
| Number of Light Source(s) | 1 |
| Shade Color | Frosted |
| Showerhead Shape | Disk |
| Adjustable Color Temperature | Yes |
| Trim Style | Shower Trims, Wafer Trims |
| Airtight | Yes |
| Housing Type | Remodel Housing, New Construction Housing |
| Certifications | ETL |
| Country Of Origin | China |
| Manufacturer Warranty | 5 Year |
| Location Rating | Wet Location |
| IC Rating | IC |
| Bulb Included | Yes |
| Shade | Yes |
| Average Hours | 35000 Hours |
| Color Rendering Index (CRI) | 80 |
| Lumens | 980 |
| Voltage | 120 |
| Voltage Type | Line Voltage (110-120V) |
| Wattage | 14 |
| Color | Black |
| Color Tone | Blacks |
