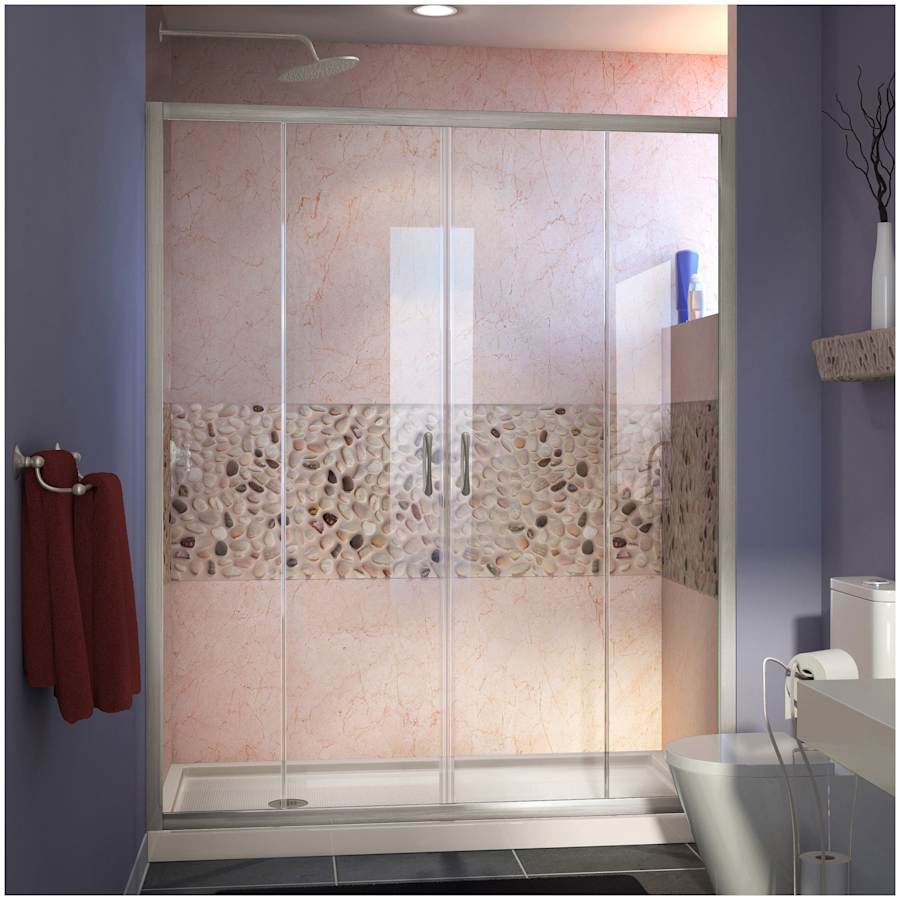

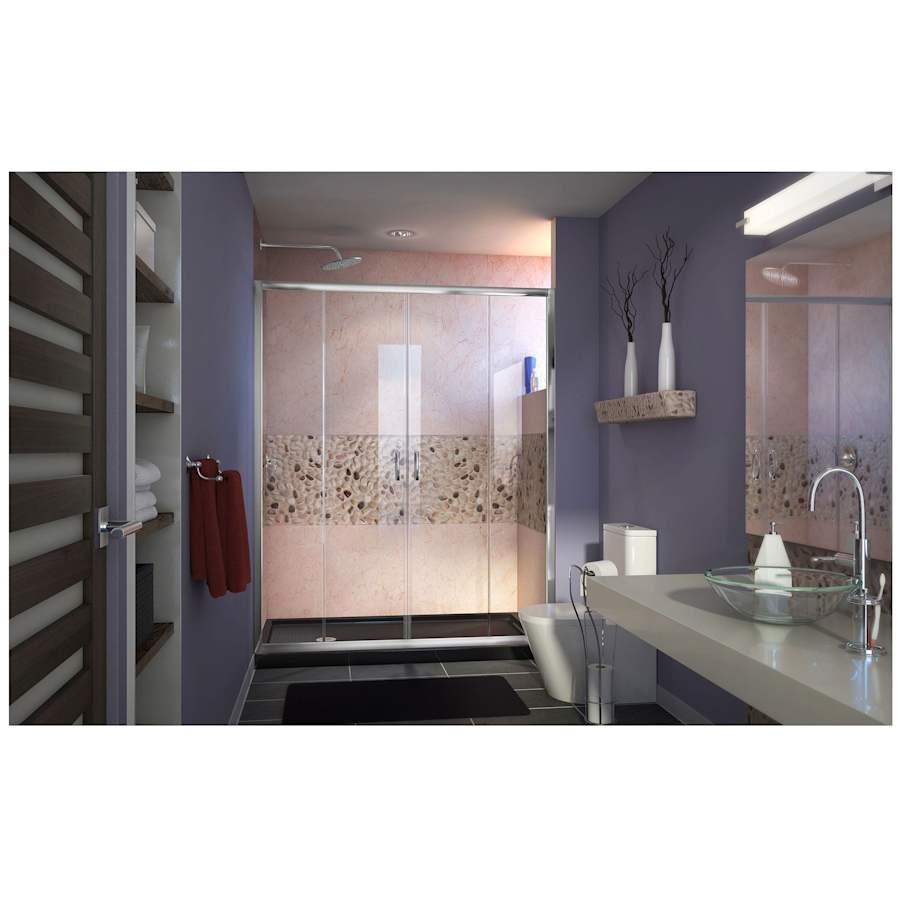

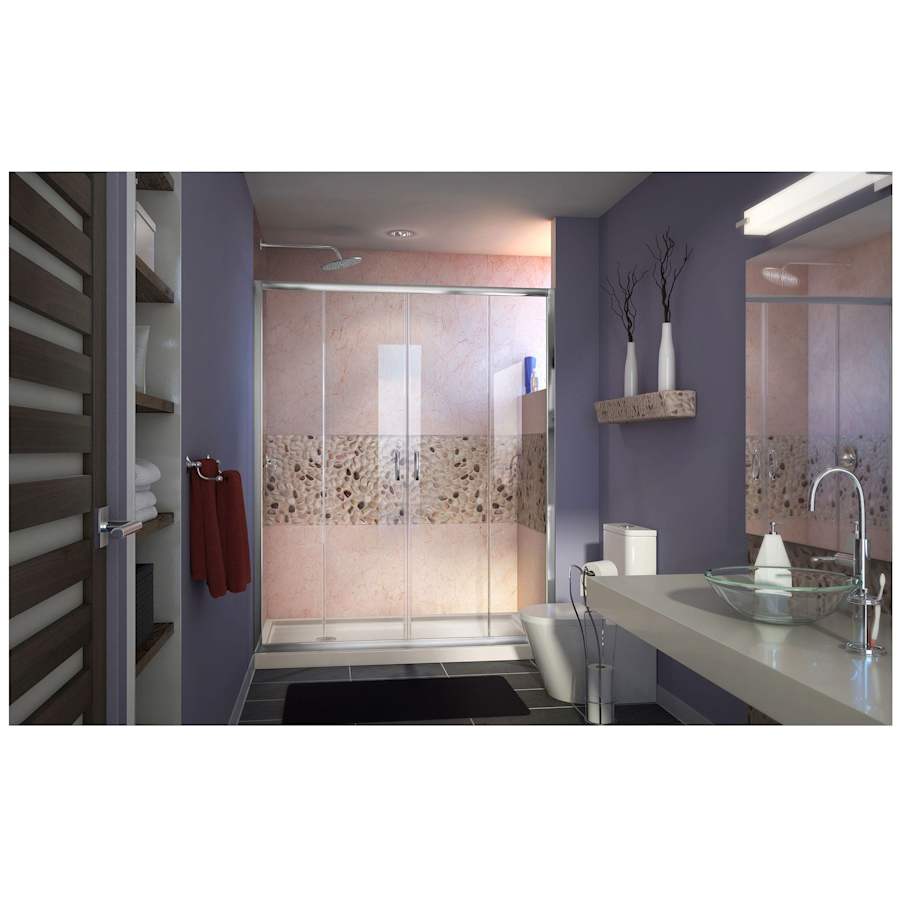

The DreamLine Visions shower or tub door offers breathtaking style for your shower area. Visions features a unique design with two stationary glass panels and two sliding glass panels that open to create an ample center point of entry. Fast release wheels make cleaning the glass and track a cinch.
DreamLine DL-6962L Features:
Kit Includes: Visions Shower Door and SlimLine™ Shower Base
Kit Size: 34″ D x 60″ W x 74 3/4″ H
Walk-In Opening: 22 7/8 – 26 7/8″

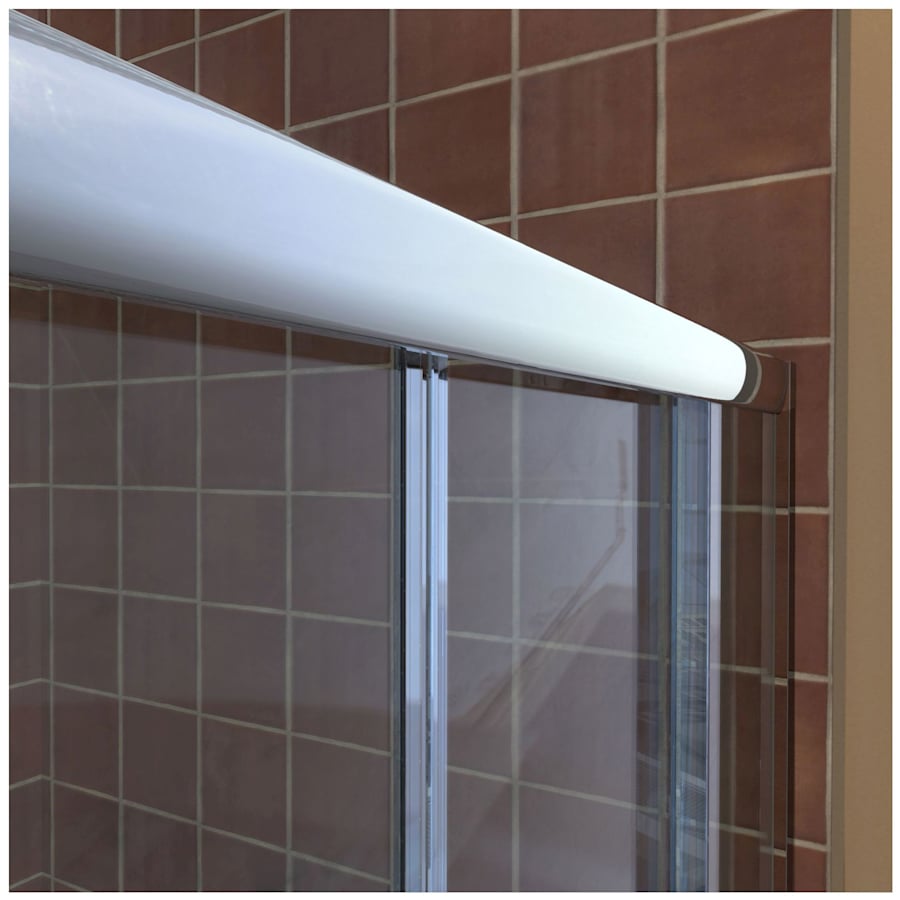

Visions Shower Door: Center opening dual sliding door design allows substantial entry area

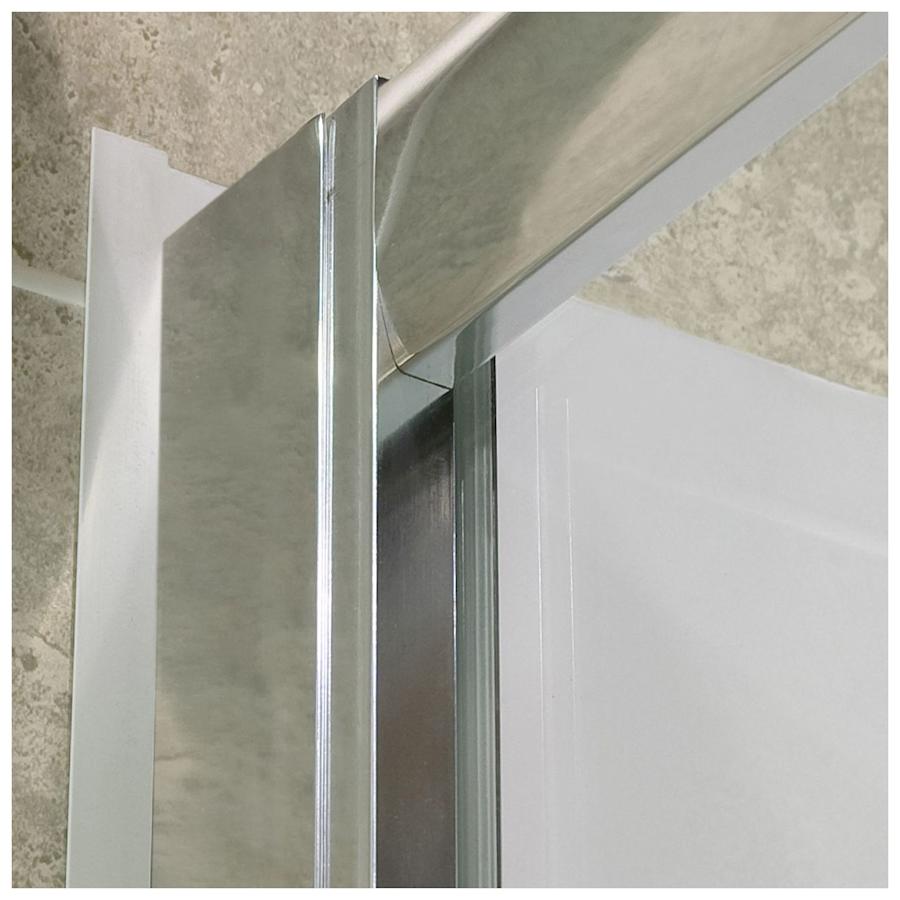

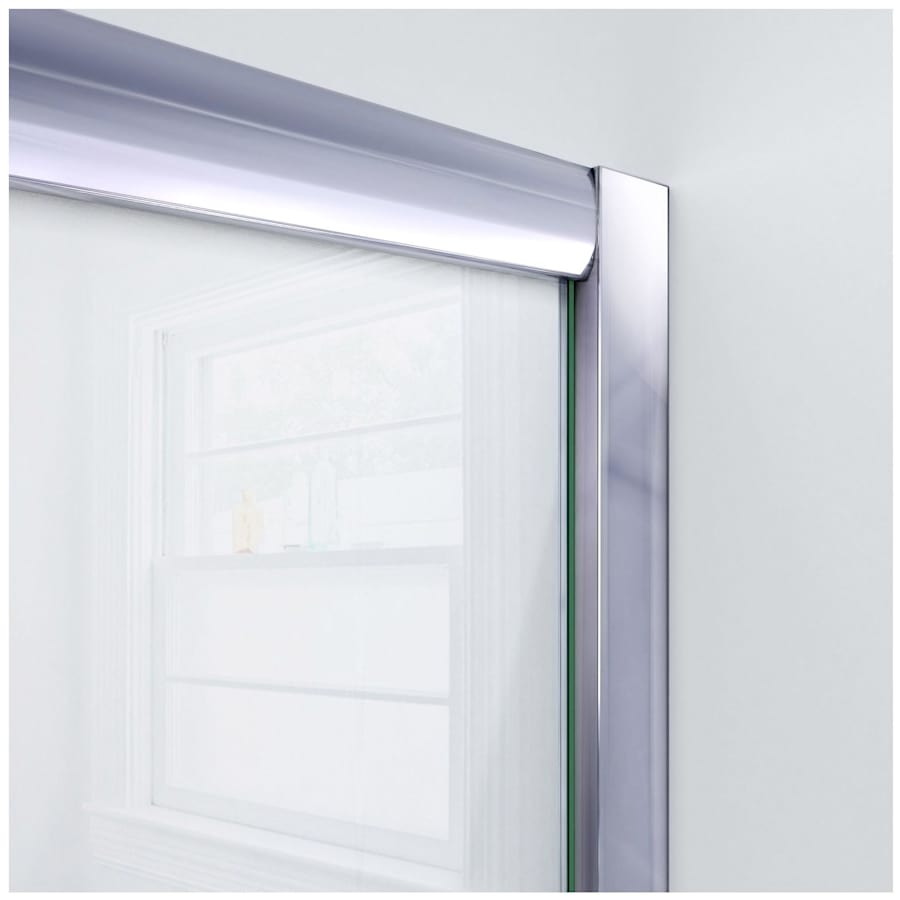

Anodized aluminum wall profiles allow up to 1″ adjustment per side for out-of-plumb (uneven walls)
Guide rails can be trimmed up to 4″ for width adjustment
1/4″ (6mm) thick clear tempered glass

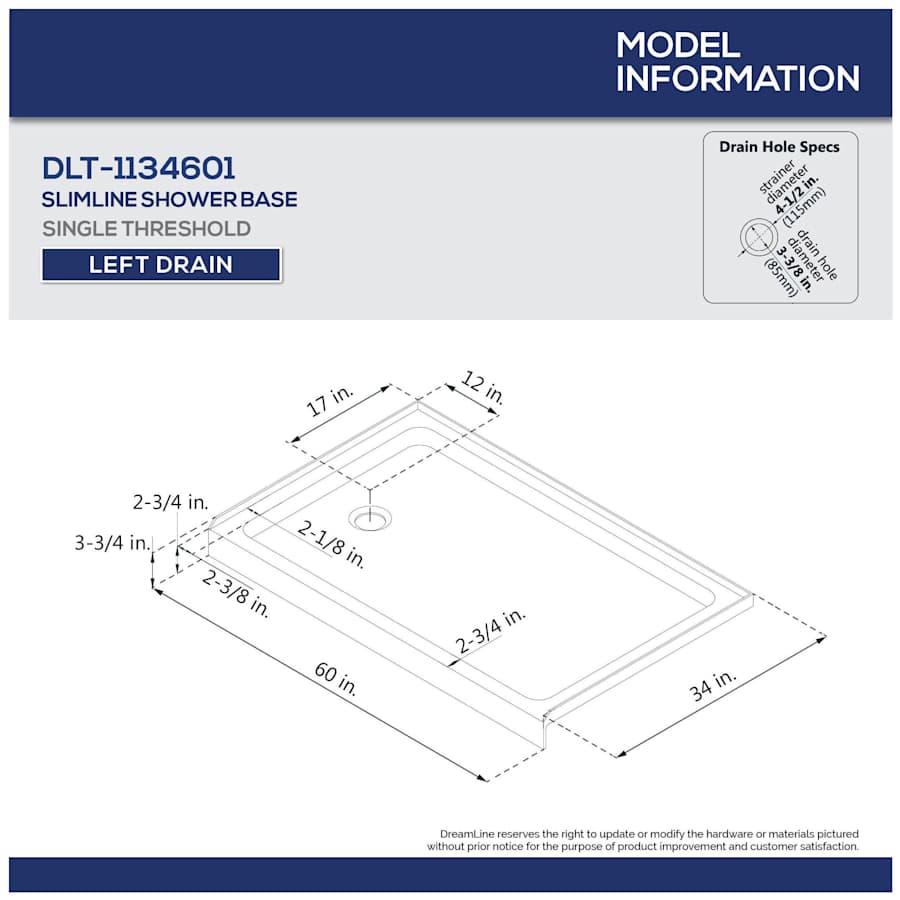

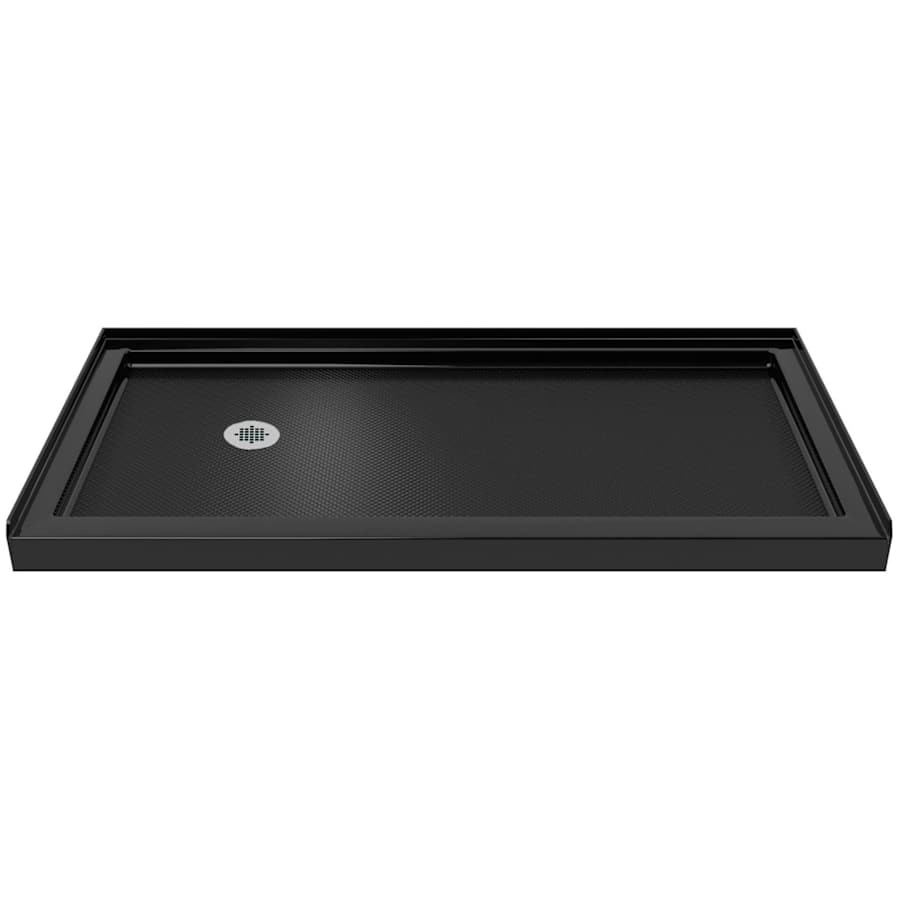

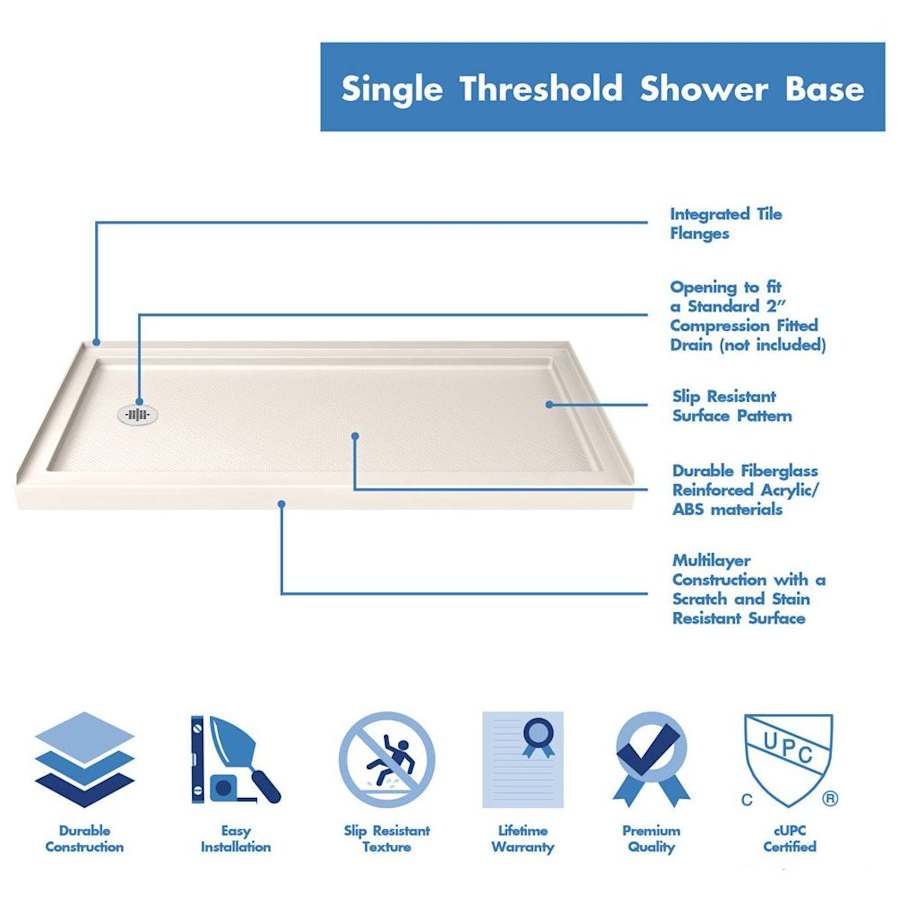

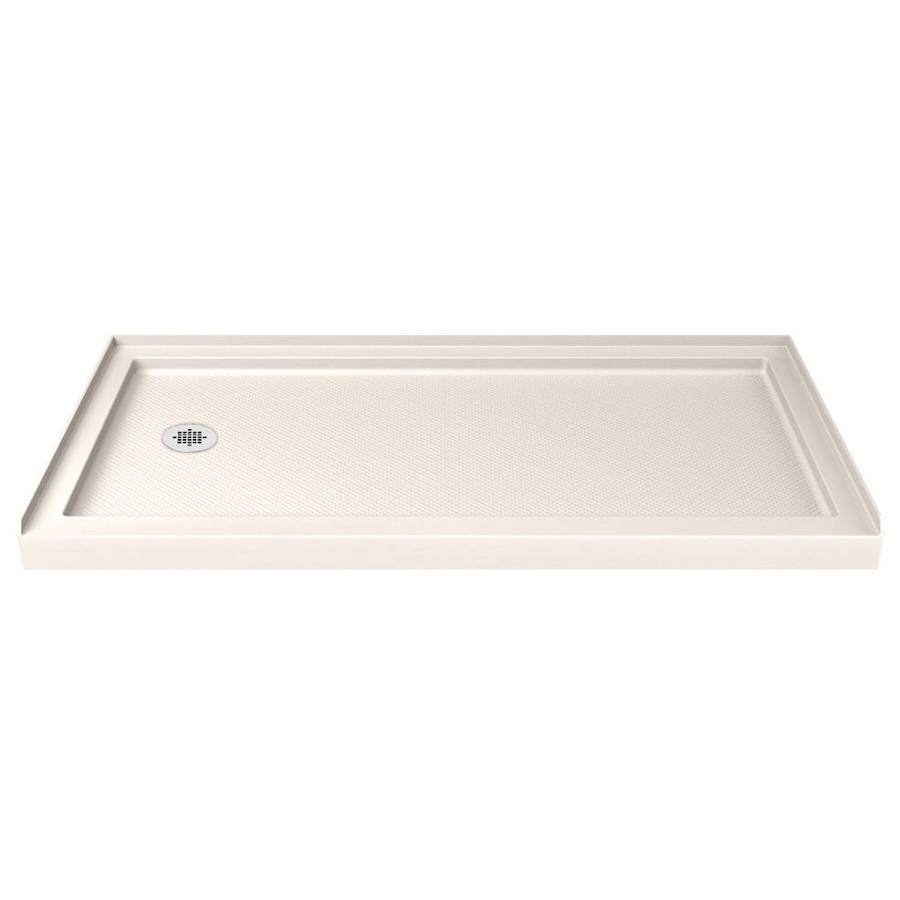

SlimLine™ Single Threshold Shower Base: Low profile threshold design for easy entry and exit

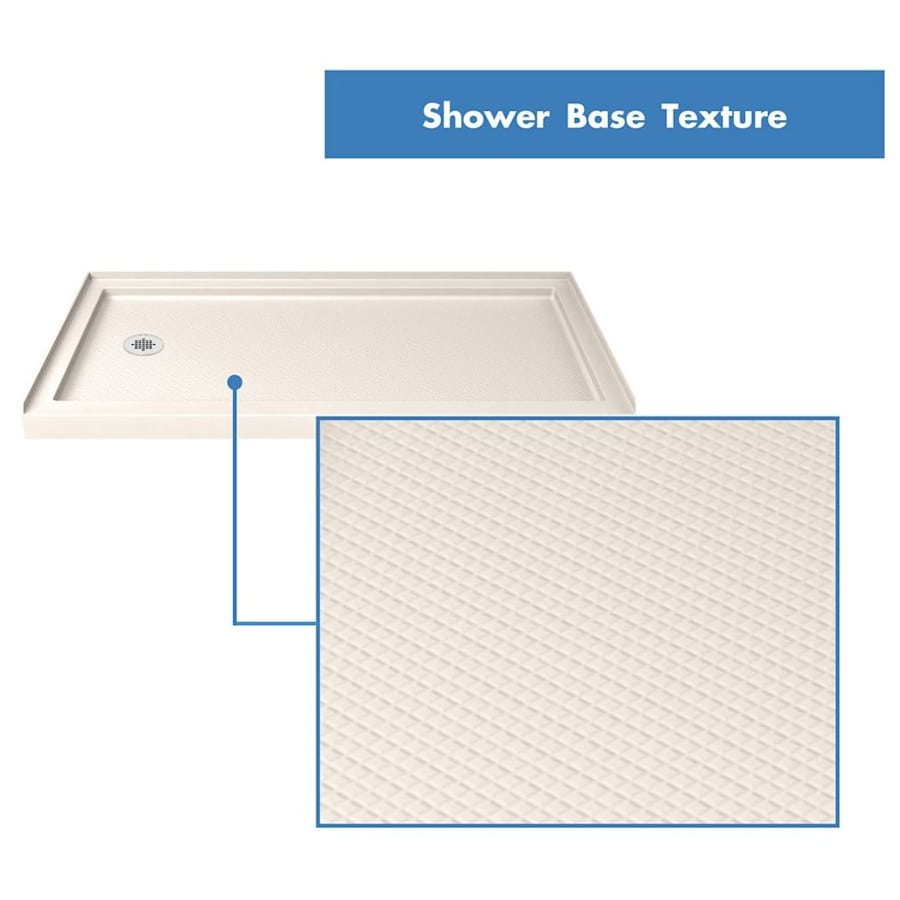

Slip-resistant textured floor pattern for safe showering
Integrated tile flange for water leak prevention

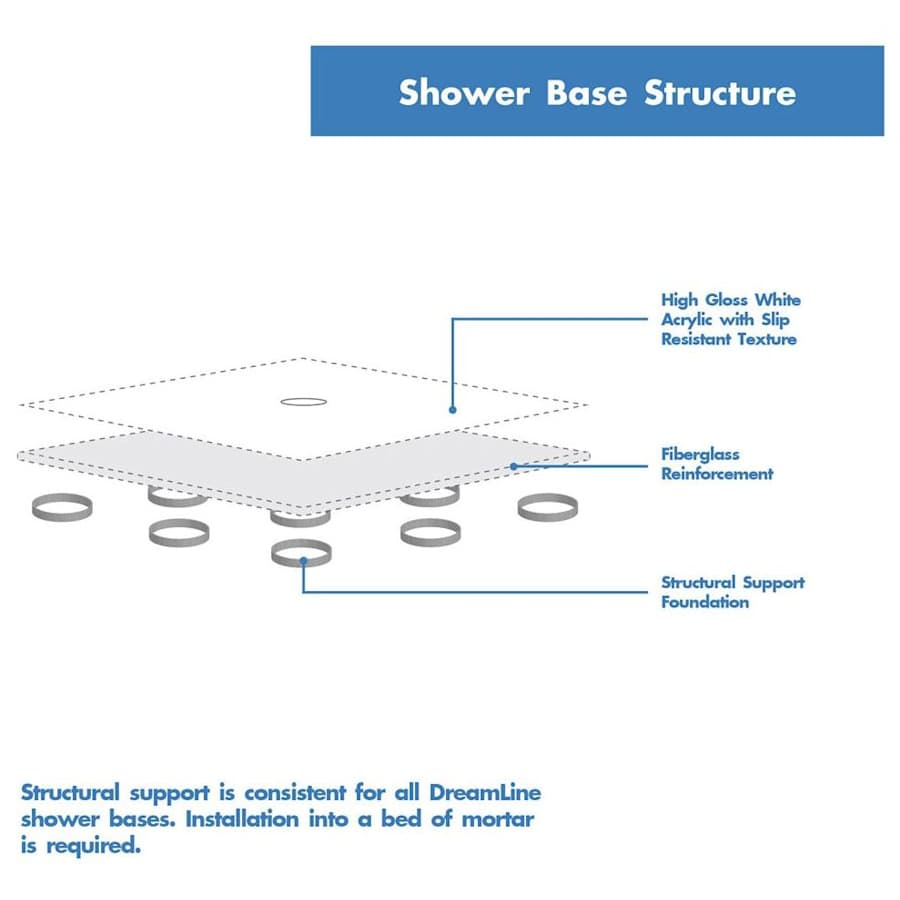

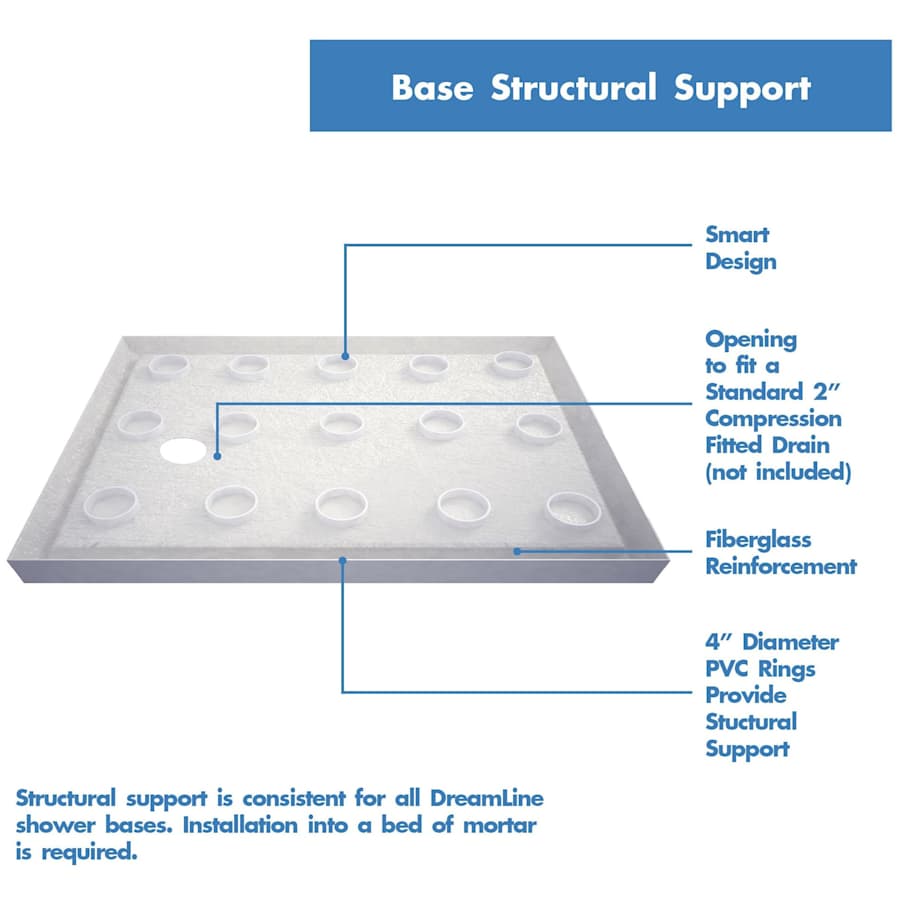

Reinforced with fiberglass for durability
Left drain configuration
Drain opening fits any standard 2″ compression fitted drain (Drain not included)
cUPC certified
Glossy acrylic finish is scratch and stain resistant
Direct to stud installation
Plumbing codes vary by state(DreamLine is not responsible for code compliance)
Professional installation recommended
Limited Lifetime Manufacturer Warranty. (Oil Rubbed Bronze and Satin Black finishes limited to 1 (one) year warranty)
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Visions Collection
Specifications
| Depth | 34 in. |
| Height | 74.75 in. |
| Nominal Width | 60 in. |
| Product Weight | 171.52 lbs. |
| Width | 60 in. |
| Base Width | 34 in. |
| Door Width | 26.875 in. |
| Glass Thickness | 0.25 in. |
| Panel Width | 34 in. |
| Bar Length | 60 in. |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Thermostat | Contemporary |
| Configuration | Shower Door |
| Insulation Type | Three Wall Alcove |
| Glass Features | Clear Glass |
| Curb Location | Front |
| Drain Placement | Left |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Shape | Rectangular |
| Door Swing | Right, Left |
| Door Type | Sliding |
| Frame Type | Framed |
| Number Of Doors | 2 |
| Certifications | UPC, ANSI |
| Collection | Visions |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime, 1 Year Limited |
| Approved for Commercial Use | Yes |
| Commercial Warranty | 1 Year Limited |
| Installation Hardware Included | Yes |
| Tile Flange | Yes |
| Base Included | Yes |
| Color | Brushed Nickel with Biscuit Base |
| Color Tone | Nickel Tones |
