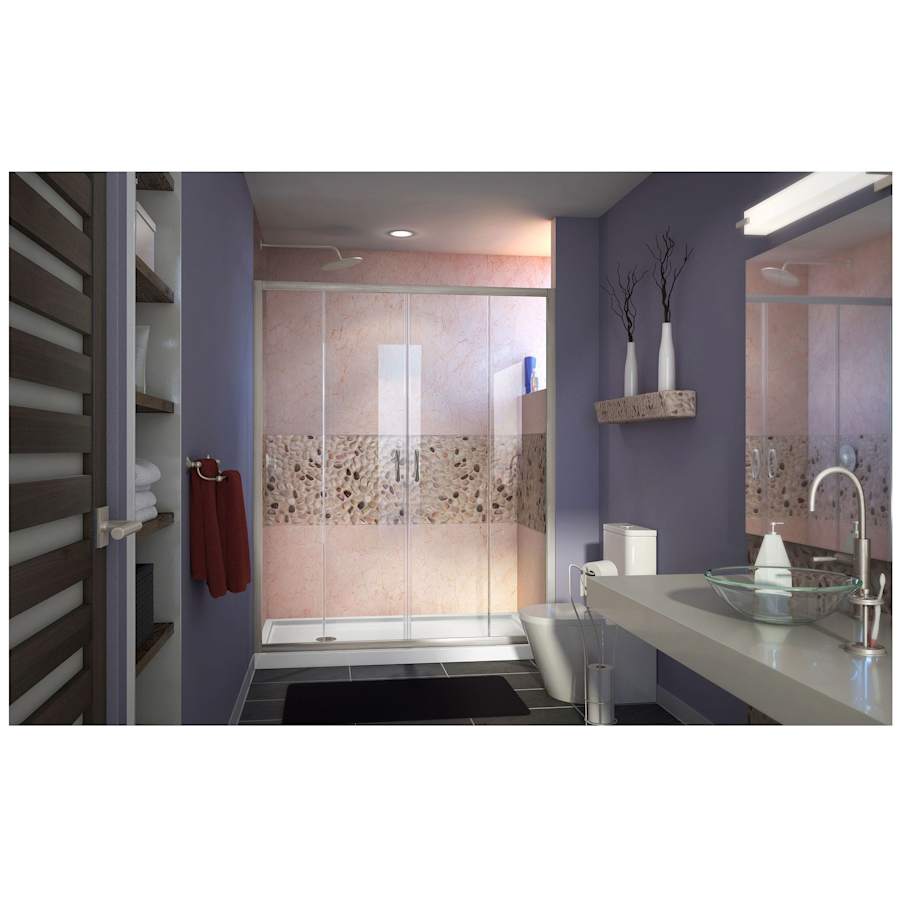

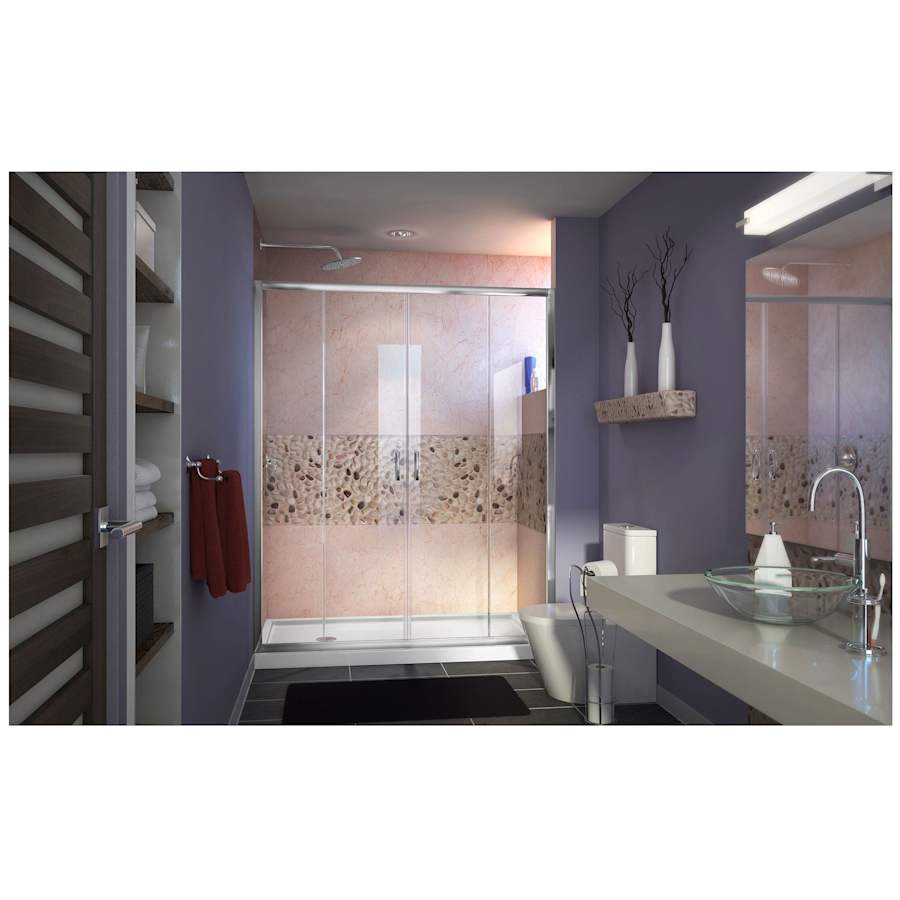

The DreamLine Visions shower or tub door offers breathtaking style for your shower area. Visions features a unique design with two stationary glass panels and two sliding glass panels that open to create an ample center point of entry. Fast release wheels make cleaning the glass and track a cinch.
DreamLine DL-6963L-CL Features:
IMPORTANT! All measurements should be taken only AFTER walls are finished (tile, acrylic back walls, etc.)
Items included: Visions Shower Door and 36″ x 60″ Single Threshold Shower Base
Overall Kit Dimensions: 36″ D x 60″ W x 74-3/4″ H
Visions Shower Door:
56 – 60″ W x 72″ H
Frameless glass design

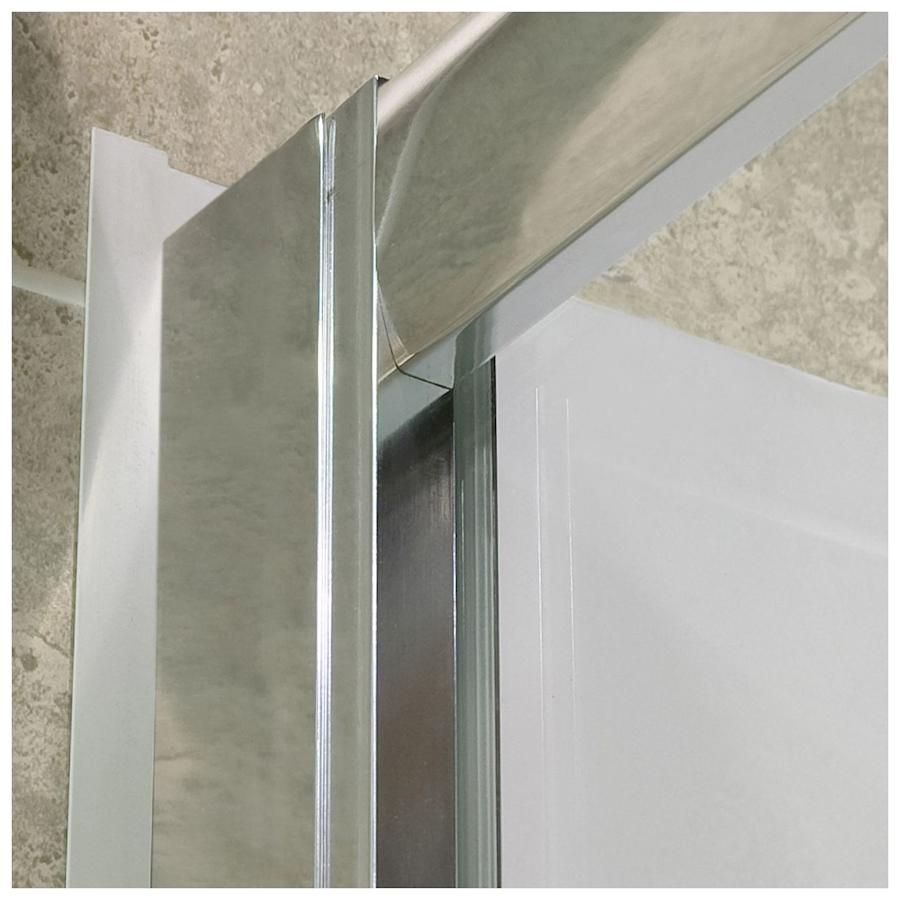

Anodized aluminum wall profiles allow up to 1″ out-of-plumb (vertical) adjustment on each side
Anodized aluminum top and bottom guiderails can be trimmed 4″ for width (horizontal) adjustment
Two sliding panels flanked by two stationary panels create a center walk-in opening
1/4″ (6mm) thick clear tempered glass
Door Walk-In: 22 – 26″
Stationary Panel: Two 12-3/4″ panels
Professional installation recommended
Limited lifetime manufacturer warranty

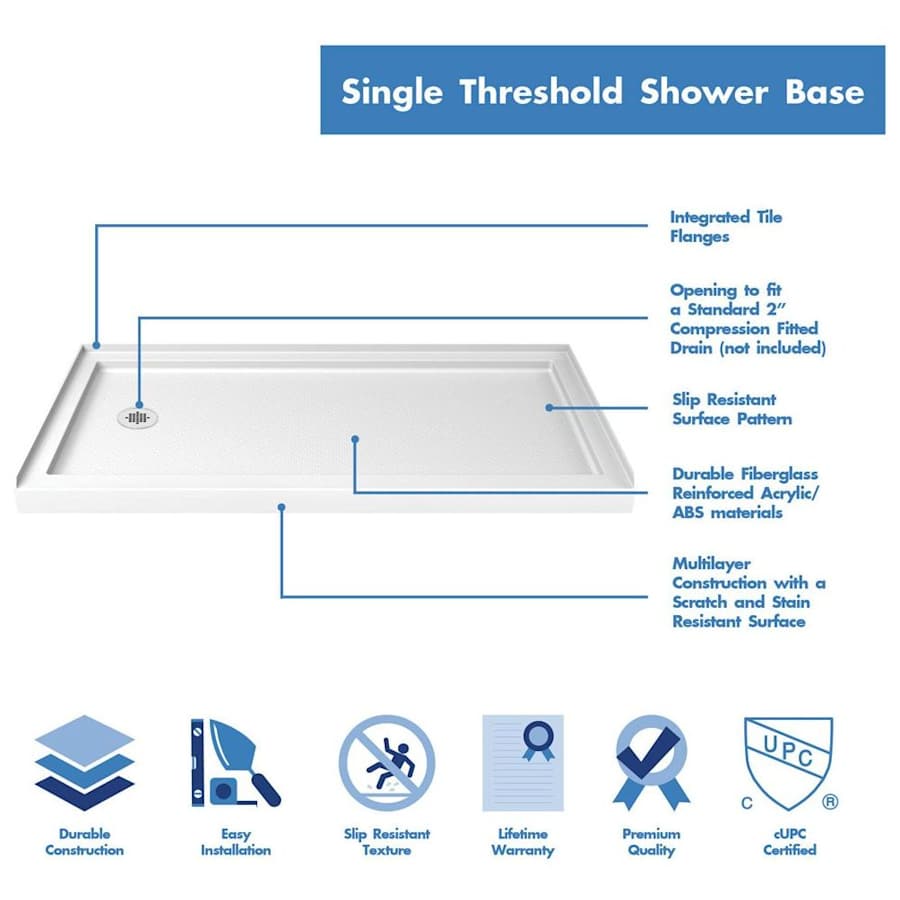

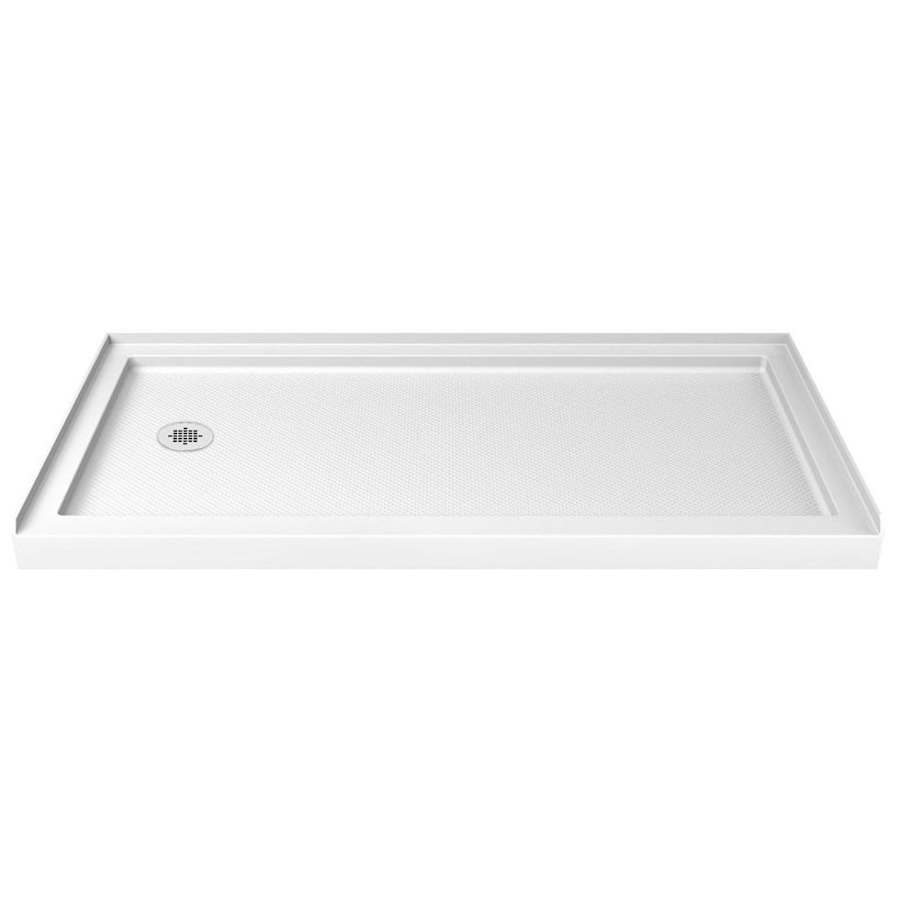

36″ x 60″ Single Threshold Shower Base:
High quality scratch and stain resistant acrylic

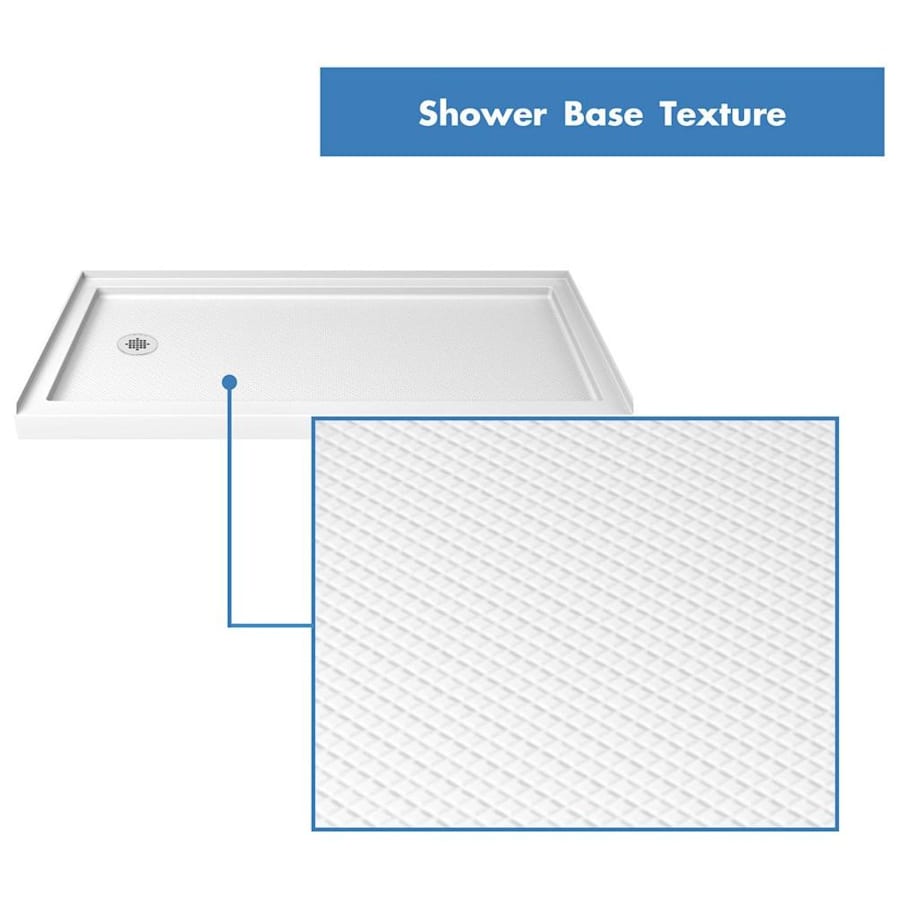

Slip-resistant textured floor for safe showering
Integrated tile flange for easy installation and waterproofing

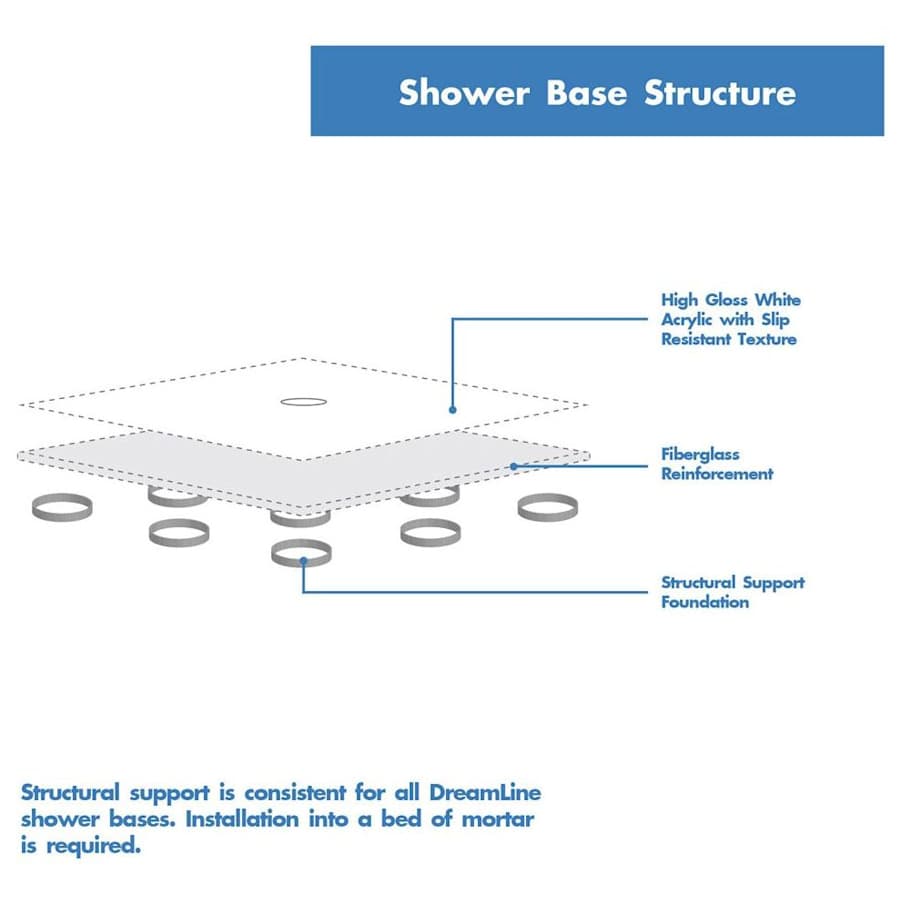

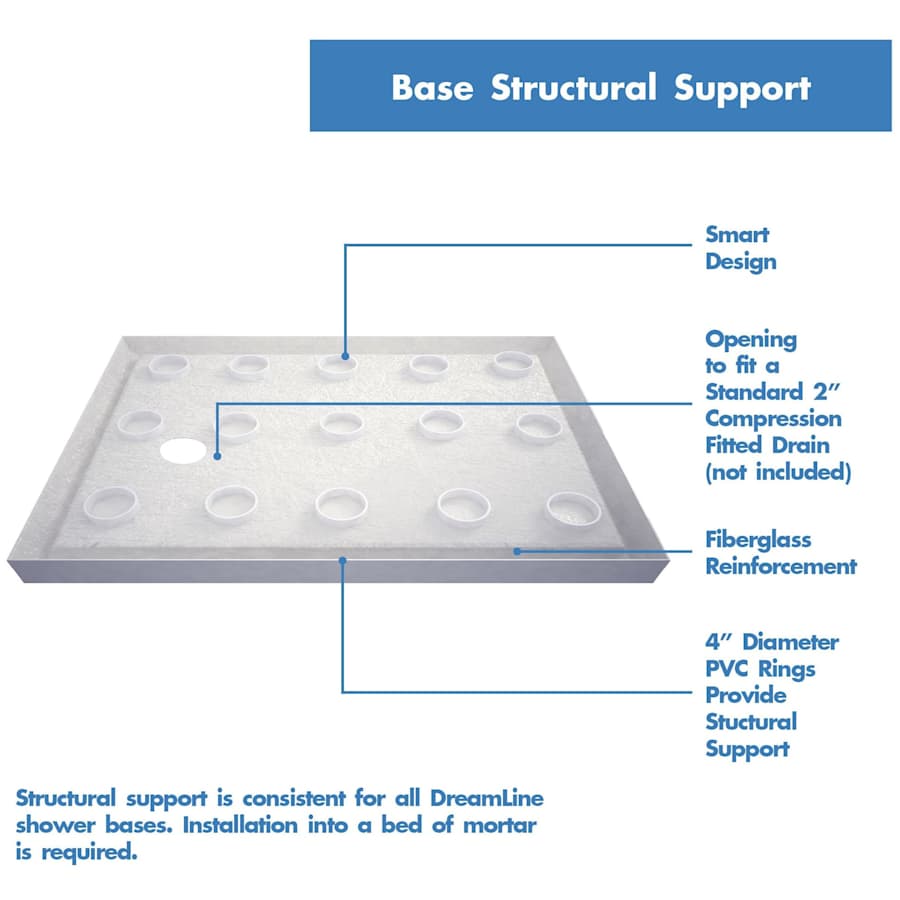

Fiberglass reinforcement for durability
cUPC certified
Drain is not included

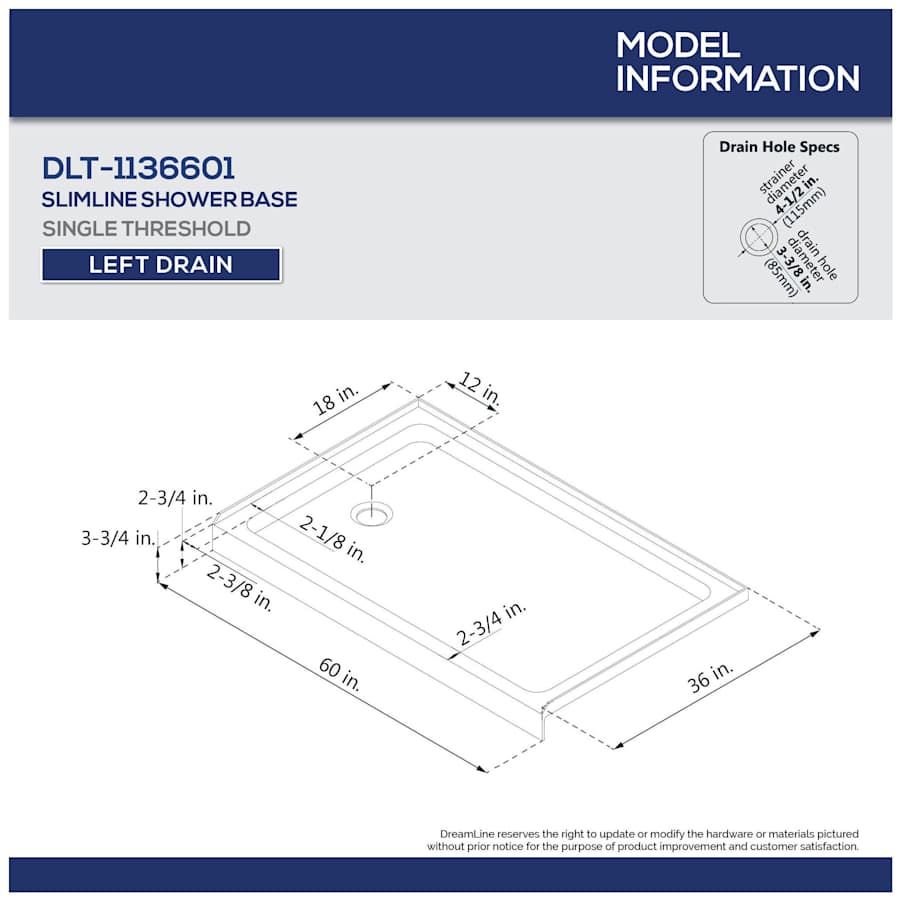

Left drain configuration. Please review the technical drawing for exact drain location
Limited lifetime manufacturer warranty
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Visions Collection
Specifications
| Product Weight | 152 lbs. |
| Depth | 36 in. |
| Height | 74.75 in. |
| Width | 60 in. |
| Base Width | 36 in. |
| Nominal Width | 60 in. |
| Drain Connection | 3.25 in. |
| Door Width | 26 in. |
| Glass Thickness | .25 in. |
| Maximum Width | 60 in. |
| Minimum Width | 56 in. |
| Panel Width | 12.75 in. |
| Shower Door Width | 26 in. |
| Bar Length | 60 in. |
| Insulation Type | Three Wall Alcove |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Shape | Rectangular |
| Thermostat | Modern |
| Configuration | Shower Door |
| Glass Features | Clear Glass |
| Number Of Doors | 2 |
| Curb Location | Front |
| Drain Placement | Left |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Slip Resistant | Yes |
| Door Type | Sliding |
| Frame Type | Framed |
| Number of Tile Flanges | 3 |
| Approved for Commercial Use | Yes |
| Manufacturer Warranty | Limited Lifetime |
| Collection | Visions |
| Country Of Origin | China |
| Certifications | UPC, ANSI |
| Commercial Warranty | 1 Year Limited |
| Drain Assembly Included | No |
| Tile Flange | Yes |
| Base Included | Yes |
| Color | Brushed Nickel |
| Color Tone | Nickel Tones |
