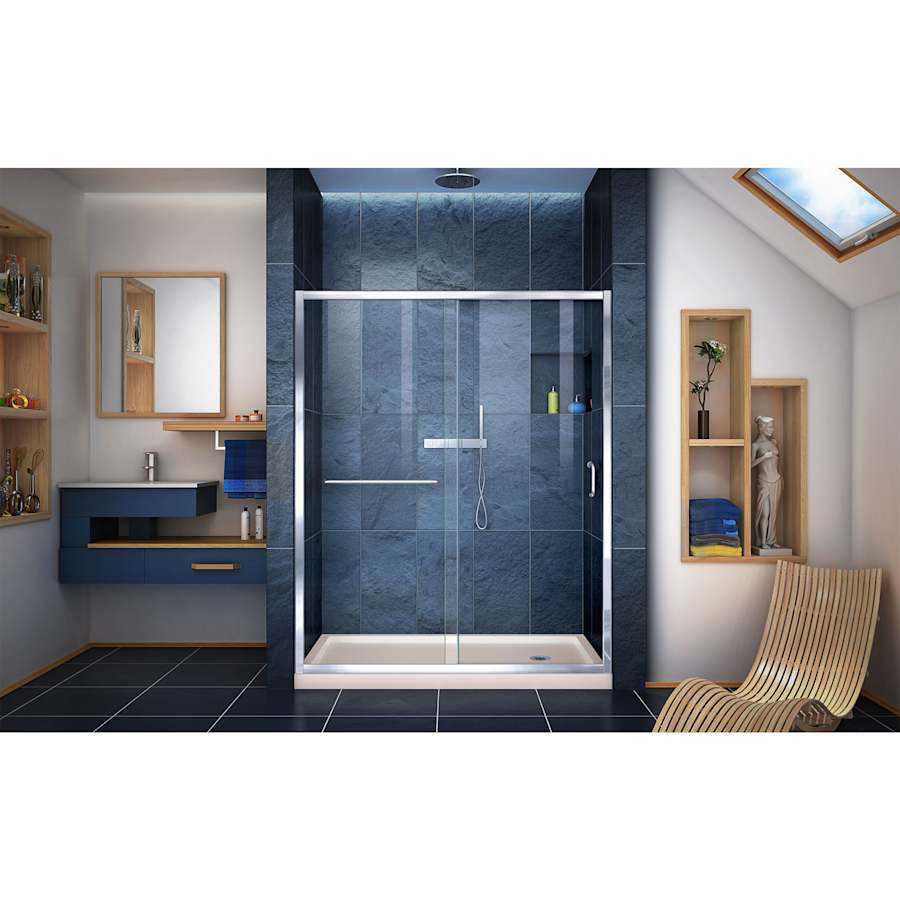

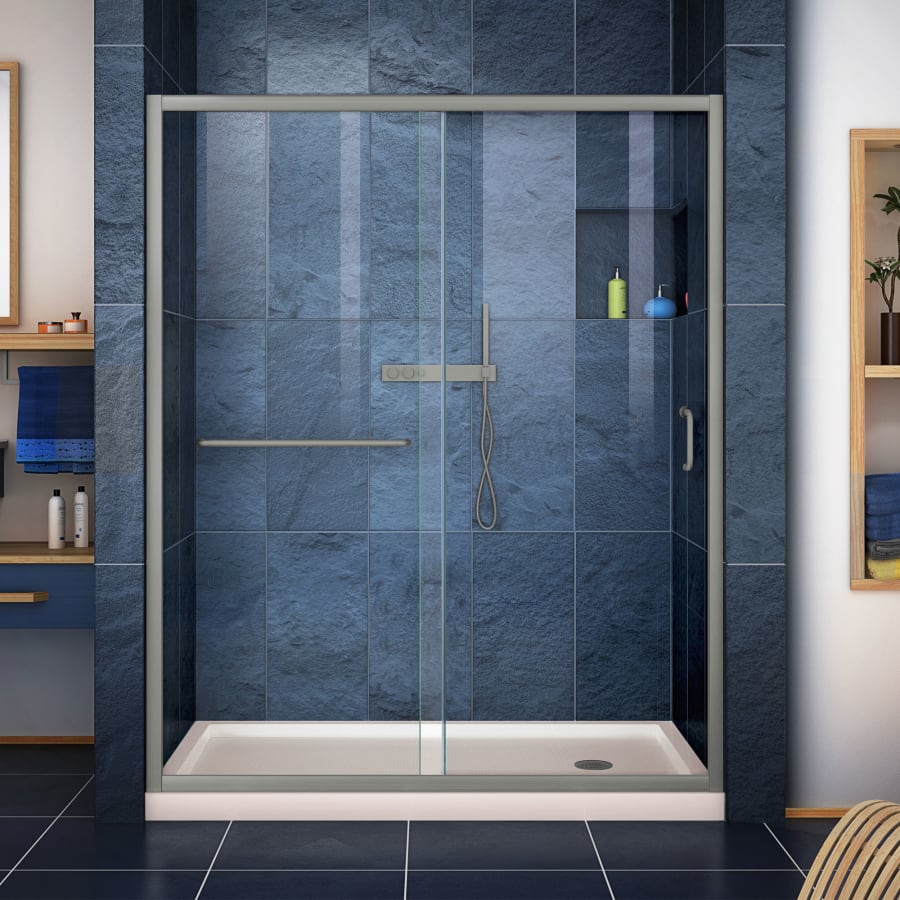

The DreamLine Infinity-Z sliding shower or tub door offers classic style with a modern touch. The Infinity-Z will transform your bathroom with a beautiful balance of functionality, elegance, and sophistication. A variety of finishes and glass options will match any bathroom decor. The SlimLine shower base completes the look with a low profile design for a sleek modern look. Choose the DreamLine Infinity-Z Kit for the ultimate solution to your shower project.
DreamLine DL-6971R Features:
Kit Includes: Infinity-Z Shower Door and SlimLine Shower Base
Kit Size: 32″ D x 60″ W x 74 3/4″ H
Walk-in Opening: 21 3/8 – 25 3/8″
Infinity-Z Shower Door Configuration: Sliding Door and a Stationary Panel
Reversible for a right or left door opening to fit your specific layout
Quality 1/4″ (6mm) thick Clear tempered glass
Convenient towel bar on the Stationary Panel
Up to 1″ out-of-plumb (uneven walls) adjustment on each side
Model can be trimmed up to 4″ for width adjustment

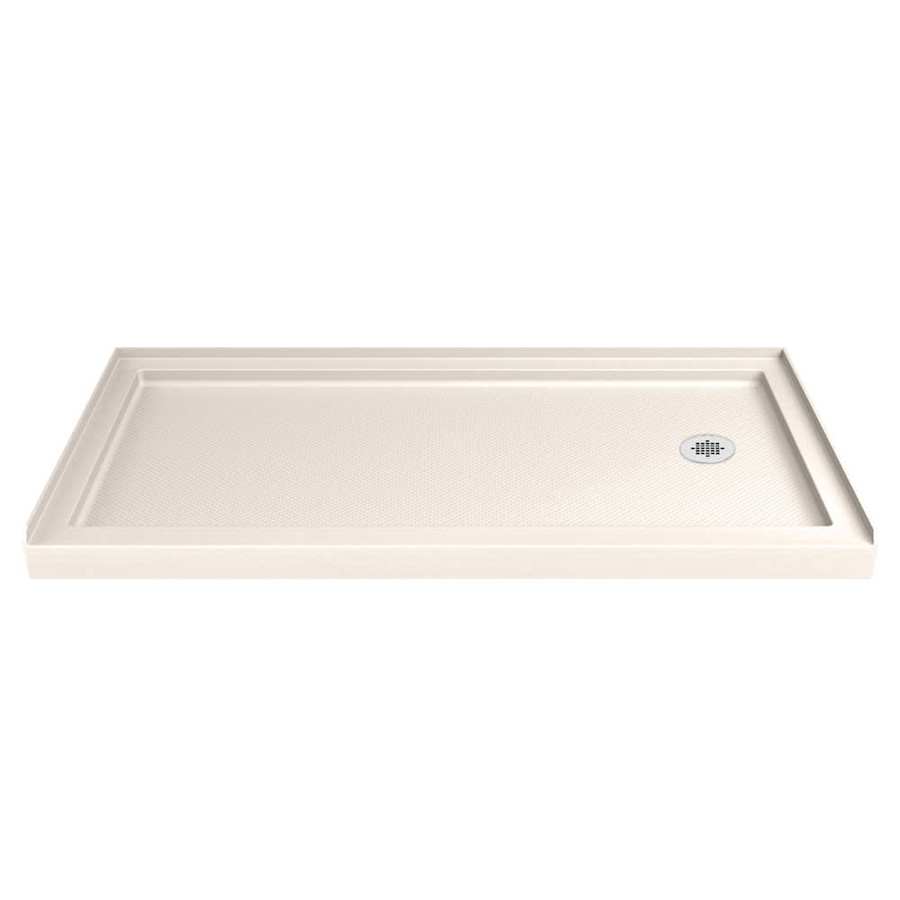

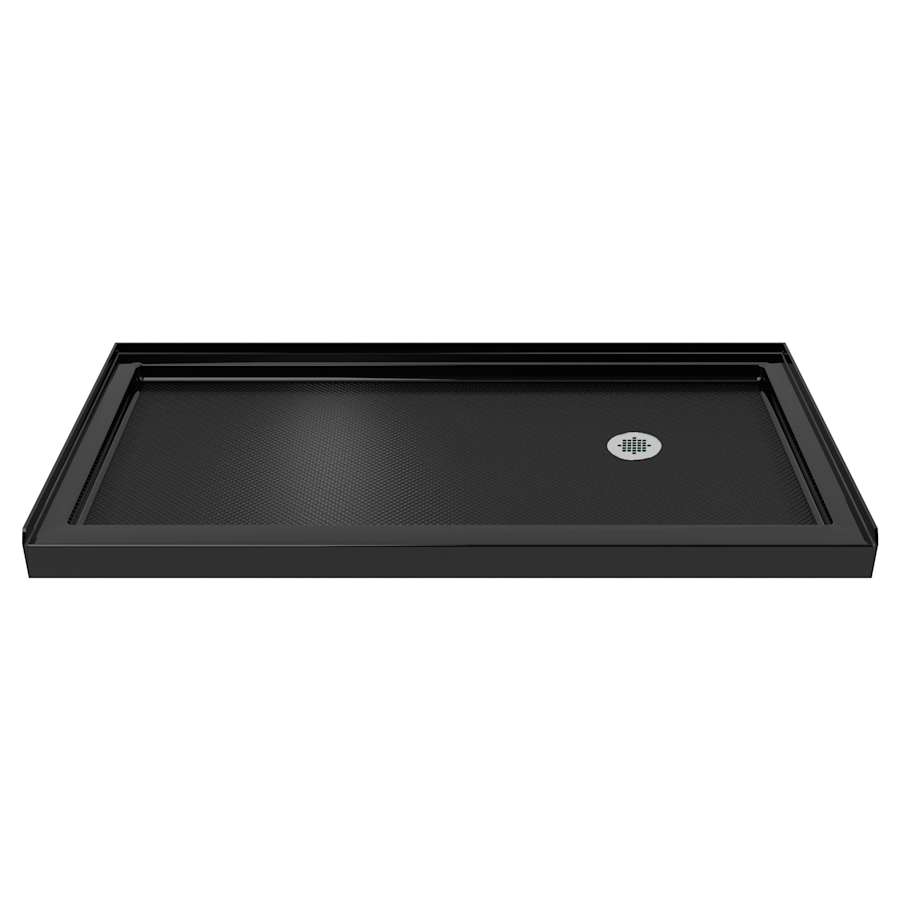

SlimLine Single Threshold Shower Base: Low profile threshold design for easy entry and exit
Slip-resistant textured floor pattern for safe showering
Integrated tile flange for water leak prevention

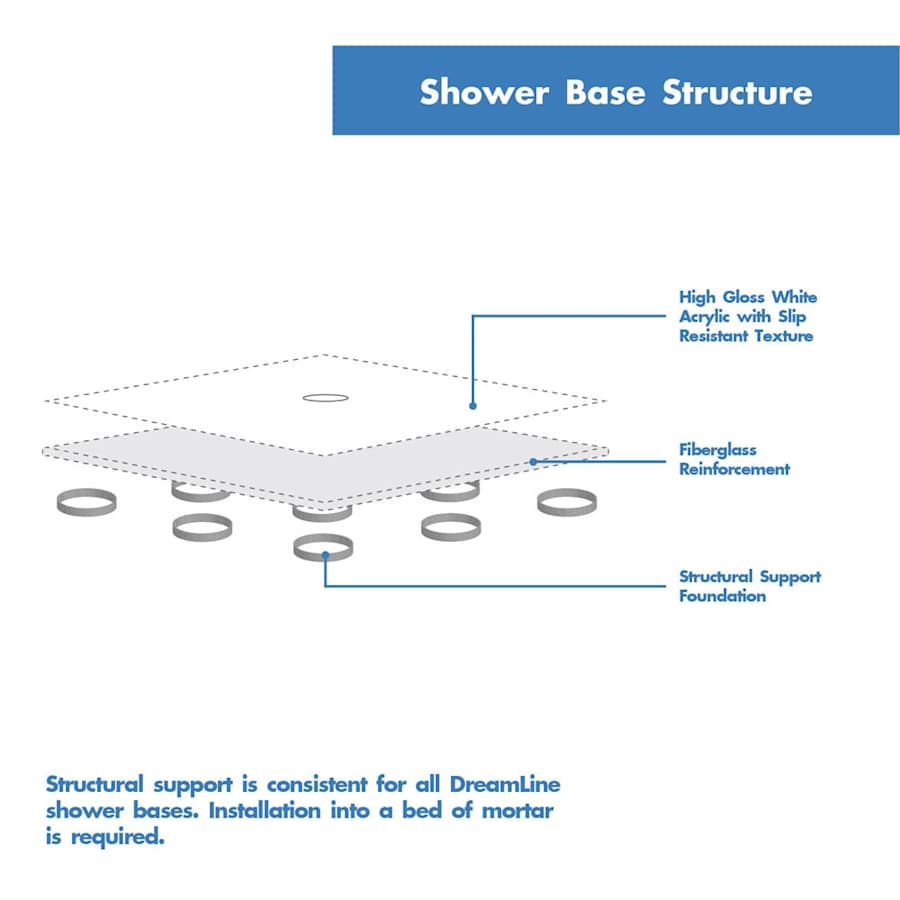

Reinforced with fiberglass for durability
Drain opening fits any standard 2″ compression fitted drain (not included)
cUPC certified
Glossy acrylic finish is scratch and stain resistant
Direct to stud installation
Plumbing codes vary by state(DreamLine is not responsible for code compliance)
Drain Location: Right
Glass Type: Clear
Professional installation recommended
Limited Lifetime Manufacturer Warranty. (Oil Rubbed Bronze and Satin Black finishes limited to 1 (one) year warranty)
Additional DreamLine Links
View the Manufacturer Warranty
Browse all DreamLine Products
DreamLine Infinity-Z Collection
Specifications
| Height | 74.75 in. |
| Width | 60 in. |
| Depth | 32 in. |
| Nominal Width | 60 in. |
| Product Weight | 173.28 lbs. |
| Door Width | 25.375 in. |
| Glass Thickness | 0.25 in. |
| Panel Width | 32 in. |
| Base Width | 32 in. |
| Bar Length | 60 in. |
| Thermostat | Modern |
| Glass Features | Clear Glass |
| Material | ABS, Acrylic, Aluminum, Tempered Glass |
| Drain Placement | Right |
| Insulation Type | Three Wall Alcove |
| Shape | Rectangular |
| Configuration | Shower Door |
| Curb Location | Front |
| Number Of Curbs | 1 |
| Number of Thresholds | 1 |
| Number of Tile Flanges | 3 |
| Door Swing | Right, Left, Reversible |
| Door Type | Sliding |
| Frame Type | Framed |
| Number Of Doors | 1 |
| Collection | Infinity-Z |
| Certifications | UPC, ANSI |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime, 1 Year Limited |
| Approved for Commercial Use | Yes |
| Commercial Warranty | 1 Year Limited |
| Installation Hardware Included | Yes |
| Tile Flange | Yes |
| Base Included | Yes |
| Color | Brushed Nickel with Biscuit Base |
| Color Tone | Nickel Tones |
