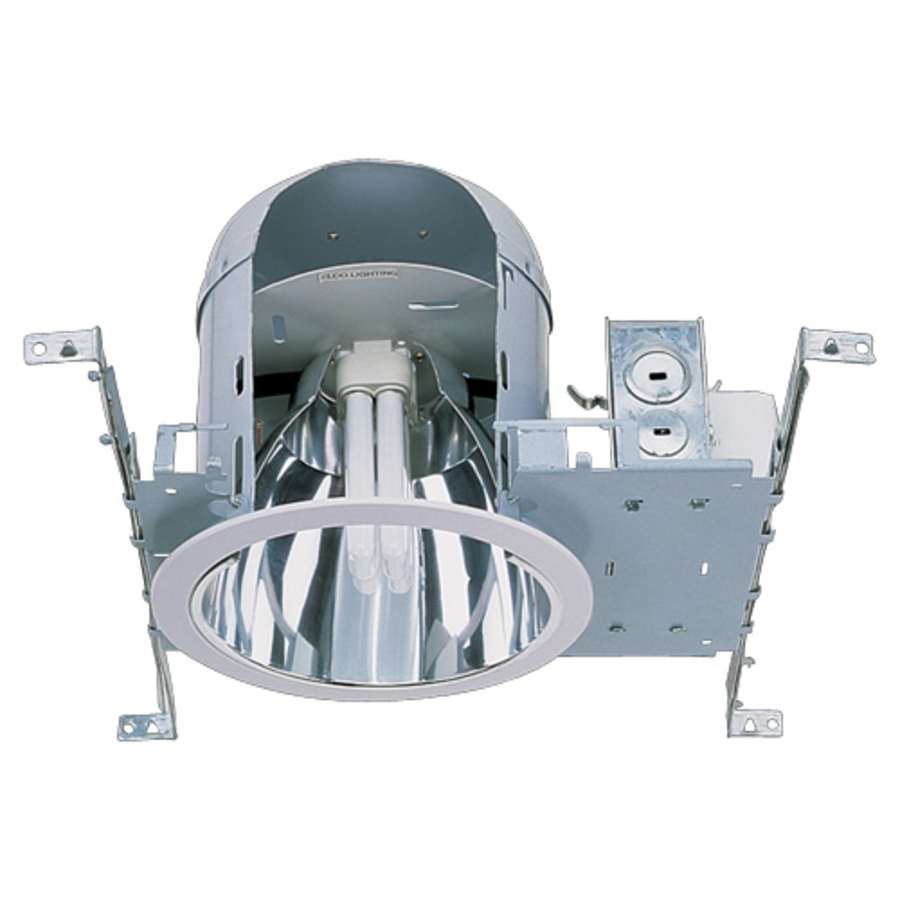

Elco 6″ 32W Single Light Vertical CFL Downlight with 120V/277V Electronic Ballast

Elco EL27HE32 6″ 32W Single Light Vertical CFL Downlight with 120V/277V Electronic Ballast

Advances in compact fluorescent lighting (CFL), have made CFL the preferred choice in both residential and commercial applications. The increased energy savings and efficiency of CFL recessed lighting have also made its immediate benefit widely popular over traditional incandescent lighting. Elco has been on the forefront with a large selection of recessed CFL lighting options available. Elco uses only brand name all American ballasts included in their compact fluorescent housings.

Features:

Energy efficient
Single wall construction
Integral thermal protector guards against improper lamping
Adjustable socket bracket allows for different lamp types/sizes and aids in consistent lamp positioning
Includes captive hanger bars
Hanger bars span 24″ joists and can be repositioned 90°
Pre-wired junction box provided with 0.5″ and 0.75″ knockouts
Maximum (8) No. 12 AWG branch-circuit conductors (4 in, 4 out)
Junction box provided with removable access plates
Housing adjusts 1.375″ to accommodate different ceiling material thicknesses
Dual voltage: 120V/277V
Electronic ballast

Specifications:

Dimensions: 7.5″H x 7.5″D x 10.5″W
Ceiling cutout: 6.25″
UL damp location listed
UL feed-through listed
Compatible with the following Elco trims: EL112 (CFL), EL113 (CFL), EL116 (CFL), EL119SH (CFL), EL12 (CFL), EL122 (CFL), EL123W (CFL), EL124W (CFL), EL13 (CFL), EL16 (CFL), EL19SH (CFL), EL22 (CFL), EL23 (CFL), EL24 (CFL), EL319 (CFL), EL319W (CFL), ELA101 (CFL), ELA102 (CFL), ELA105 (CFL), ELA95S (CFL), ELA99S (CFL), ELM300 (CFL), ELM301W (CFL), ELM412W (CFL), ELM422W (CFL), ELM427 (CFL), ELM46 (CFL), ELM47 (CFL), ELS30 (CFL), ELS310C (CFL), ELS311 (CFL), ELS40 (CFL), ELS42 (CFL), ELS426 (CFL)
