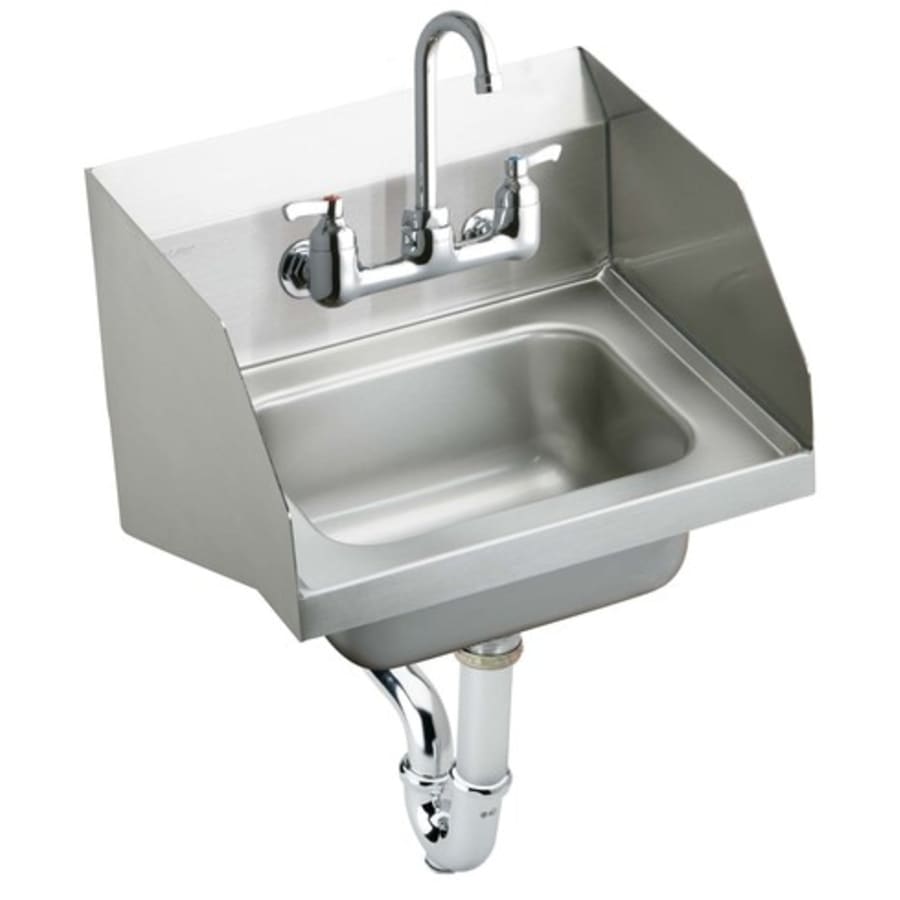

Elkay Wall Mount 18 Gauge Stainless Steel Handwash Sink with Side Splashes and Sensor Faucet

Elkay Wall Mount 18 Gauge Stainless Steel Handwash Sink with Side Splashes and Sensor Faucet

Product Features:

Wall mounted
Hand wash-up sink with 7″ high right and left side splashes
Stainless steel
1-3/4″ radius coved corners
Full length 7″ high backsplash
Exposed surfaces have a brushed finish
Furnished with a wall hanger and integral Stainless steel support brackets
Faucet:
Sensor-operated
Non-mixing
Backsplash-mounted gooseneck faucet
Adjustable sensor eyes
Chrome-plated Solid brass construction
2.0gpm laminar flow control on spout end
Includes water-resistant sensor control module and power cables
Features dual power options: AC plug-in and battery holder with four AA batteries
Slow-closing piston operated solenoid valve
In-line filter with clean out trap and flexible supply hose
Control circuit is solid state, has adjustable sensor range of 7/8″ to 6.75″
Shut off delay preset at 1 second and field adjustable to 2 seconds
Drain:
Fits 2″ opening
Polished finish
Type 304 Stainless steel 1-1/2″ x 4″ tailpiece
Drain Fitting – P Trap:
Chrome plated cast brass
1-1/2″ O.D. “P” trap with cleanout plug
1-1/2″ O.D. tubing waste arm to wall and wall flange
12″ from center of drain inlet to wall

Product Specifications:

Sink:
Installation Type: Wall
Material: Stainless Steel
Number of Basins: 1
Sink Dimensions: 16-3/4″ L x 15-1/2″ W
Bowl Depth: 6″
Bowl Dimensions: 12″ L x 9-1/4″ W x 6″ D
Faucet Holes: 2
Drain Size: 2-3/16″
Faucet:
Mounting Type: Wall
Holes Required: One
Overall Height: 10-7/8″
Spout Height: 6-3/8″
Spout Reach: 7-3/16″
Material: Brass
Flow Rate: 0 GPM
Ship Wt: 29.3 lbs
