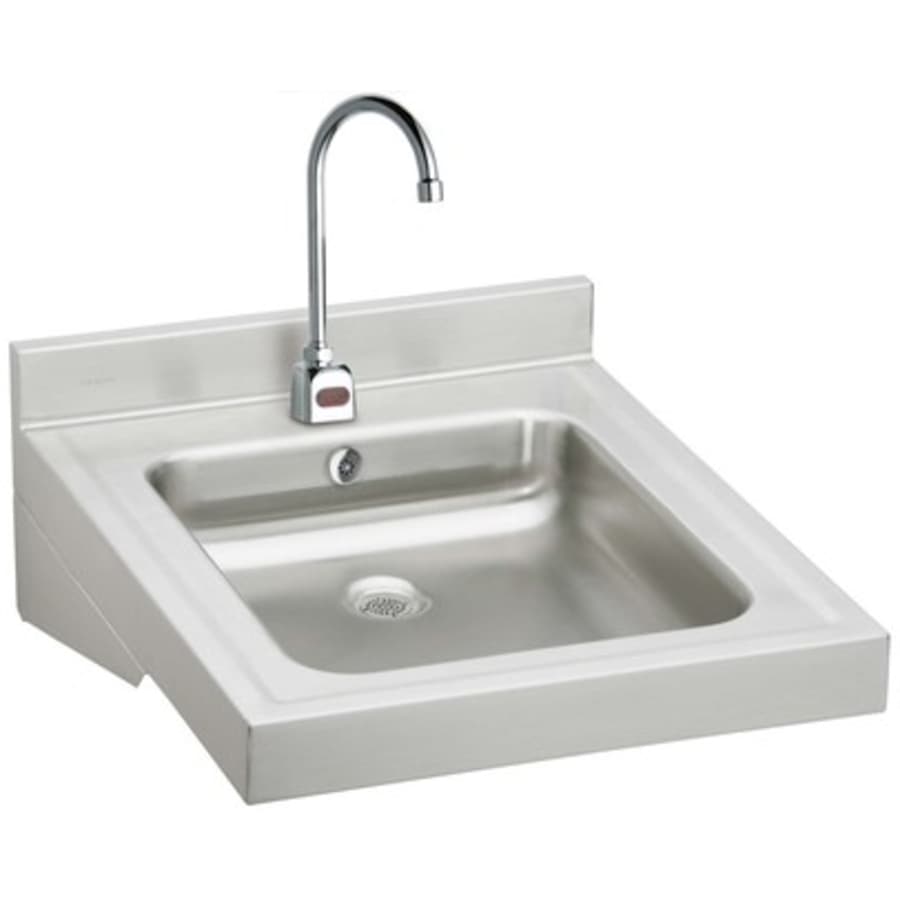

Elkay Stainless Steel 19″ x 23″ Single Basin Wheelchair Wash-Up Lavatory Sink Package with Sensor Faucet and Overflow
Highest quality sink formed of 18 gauge nickel bearing stainless steel.
Product Features:
Wall mount
Single basin
Stainless steel
Wheelchair lavatory
5/32″ raised rim
Coved corners: 1-3/4″ vertical and horizontal radius
Exposed surfaces are hand blended
Underside is fully protected by undercoating to dampen sound and prevent condensation
Furnished with separate wall hanger, integral Stainless steel support brackets and grid strainer with elbow and offset tailpiece
Includes connected overflow
Product Specifications:
Sink:
Installation Type: Wall
Mount Material: Stainless Steel
Number of Basins: 1
Sink Dimensions: 19″ L x 23″ W
Bowl Depth: 4″
Bowl Dimensions: 13-1/2″ L x 16″ W x 4″ D
Faucet Holes: 3
Drain Size: 1-5/8″
Faucet:
Mounting Type: Deck
Holes Required: One
Overall Height: 11-5/8″
Spout Height: 7-5/16″
Spout Reach: 5-5/8″
Material: Brass
Flow Rate: 0 GPM
Ship Wt: 27.4 lbs
Product Certifications and Compliances:
ADA Compliant
NSF Compliant
Additional Elkay Links
View the Manufacturer Warranty
Browse all Elkay Products
Specifications
| Height | 9 in. |
| Width | 19 in. |
| Nominal Width | 19 in. |
| Length | 23 in. |
| Faucet Centers | 0 in. |
| Nominal Length | 23 in. |
| Backplate Depth | 4 in. |
| Bar Length | 16 in. |
| Base Width | 13.5 in. |
| Flow Rate (GPM) | 2 |
| Spout Height | 8.25 in. |
| Spout Reach | 5.38 in. |
| Gauge | 18 |
| Faucet Height | 12.5 in. |
| Insulation Type | Wall Mounted |
| Material | Stainless Steel |
| Faucet Holes | 1 |
| Faucet Mounting Type | Single Hole |
| Overflow | Yes |
| Sink Shape | Rectangular |
| Drain Placement | Rear |
| Number Of Bathers | 1 |
| Sink Material | Stainless Steel |
| Electronic | Yes |
| ADA | Yes |
| Approved for Commercial Use | Yes |
| Certifications | NSF |
| CA Drought Compliant | No |
| Faucet Included | Yes |
| Drain Assembly Included | No |
| Color | Stainless Steel |
| Color Tone | Stainless Steel |
