All Emtek items are made to order. Please allow 1 to 2 weeks processing time.
Â
Â

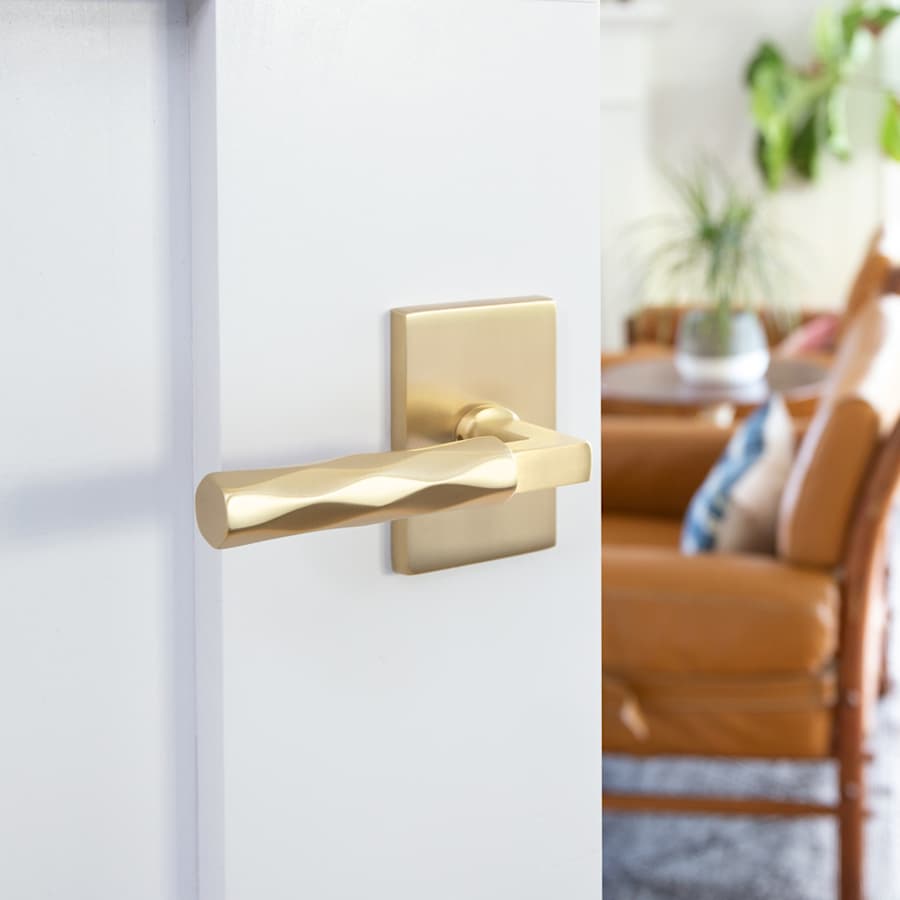

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.
Â
Features:

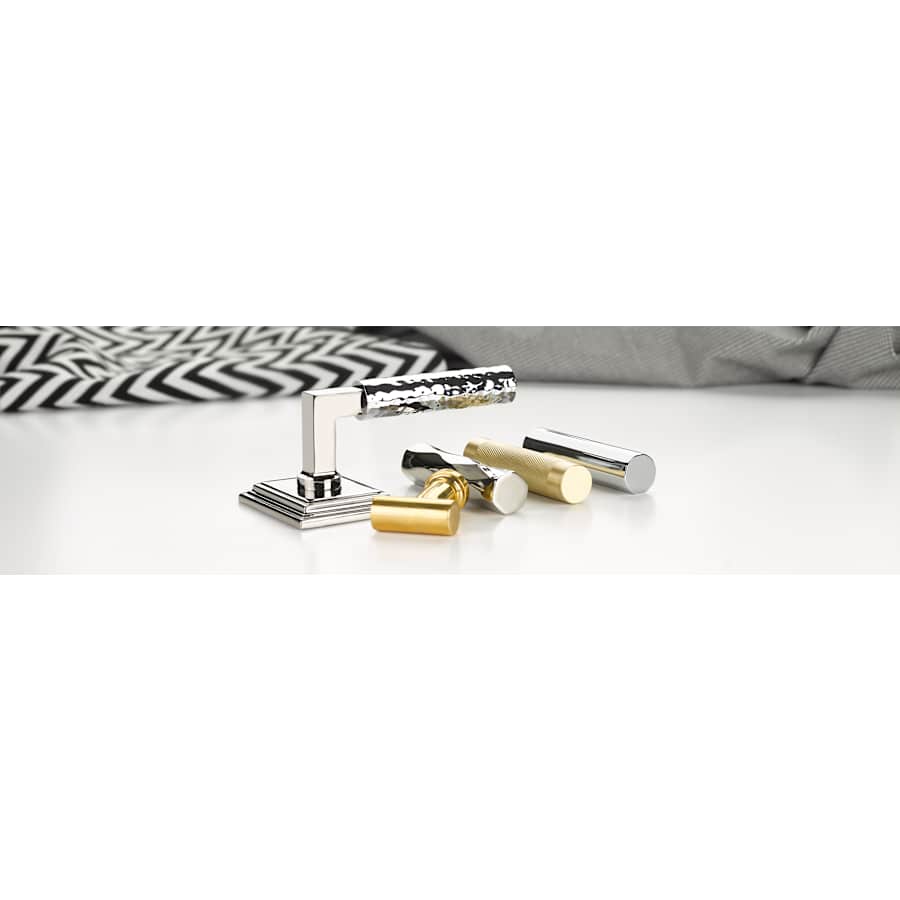

Emtek SELECT allows to fully customize your lever set

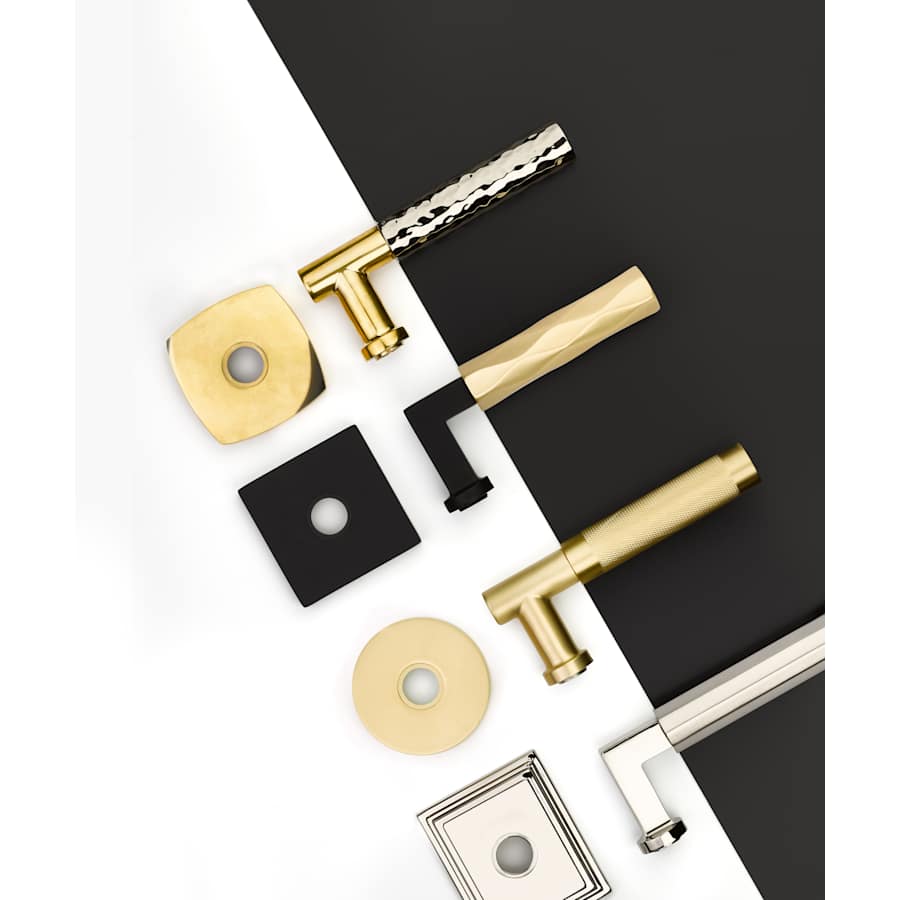

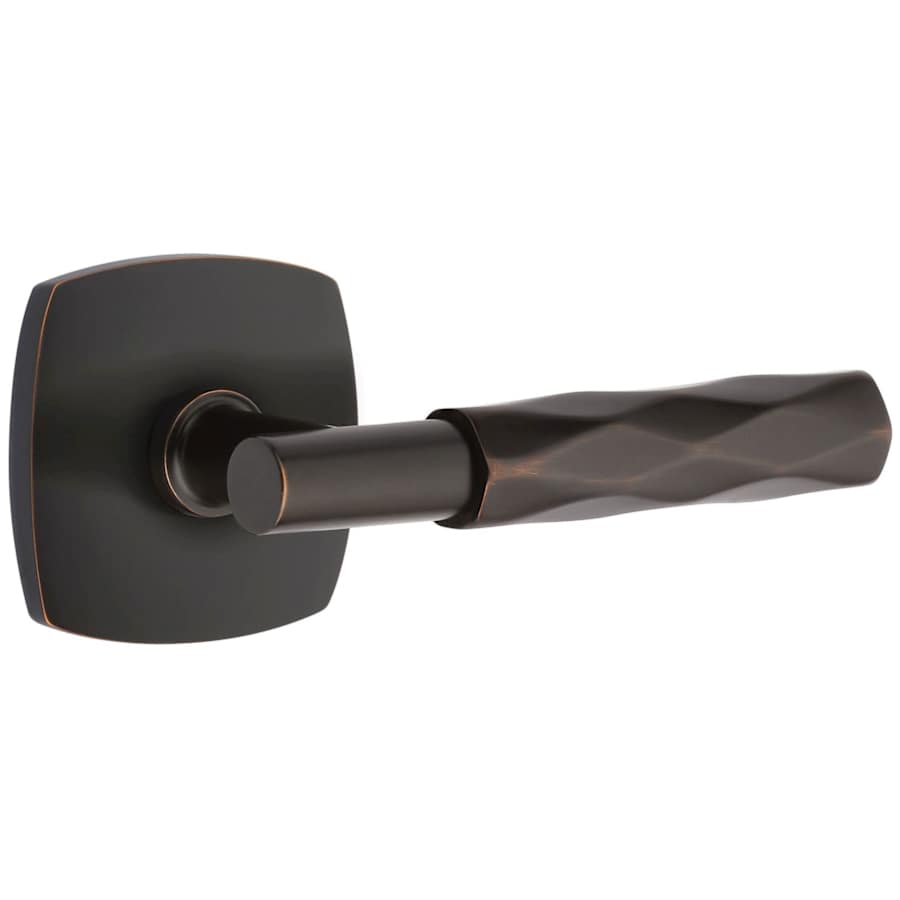

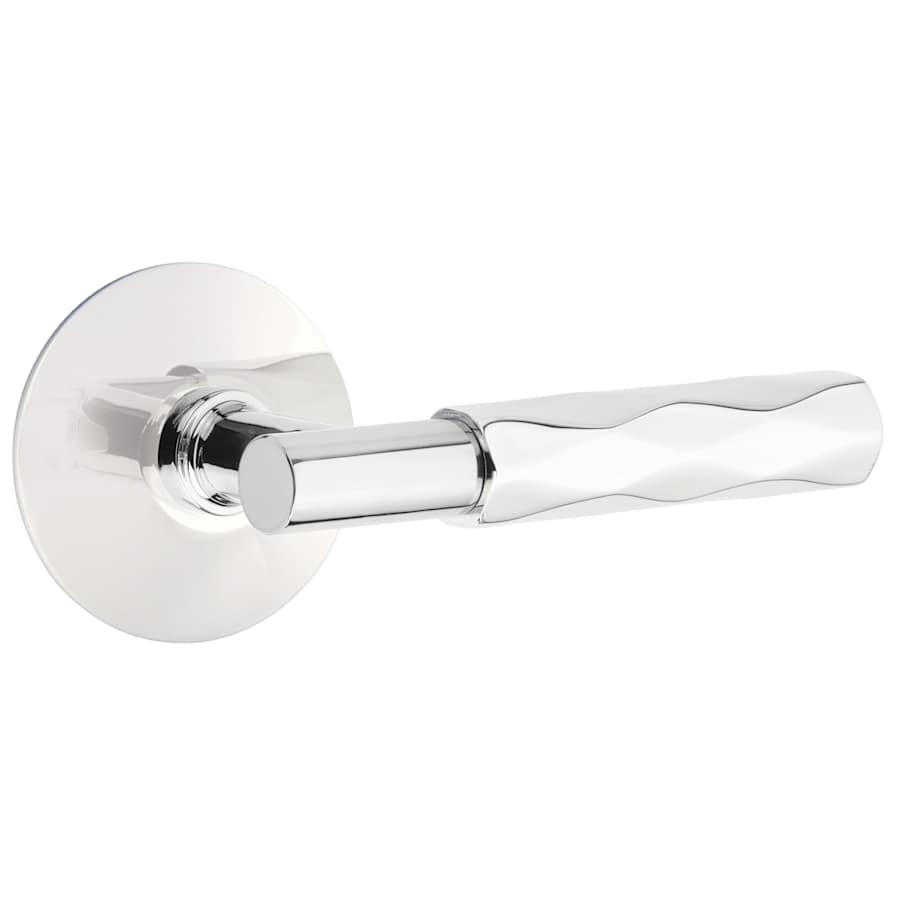

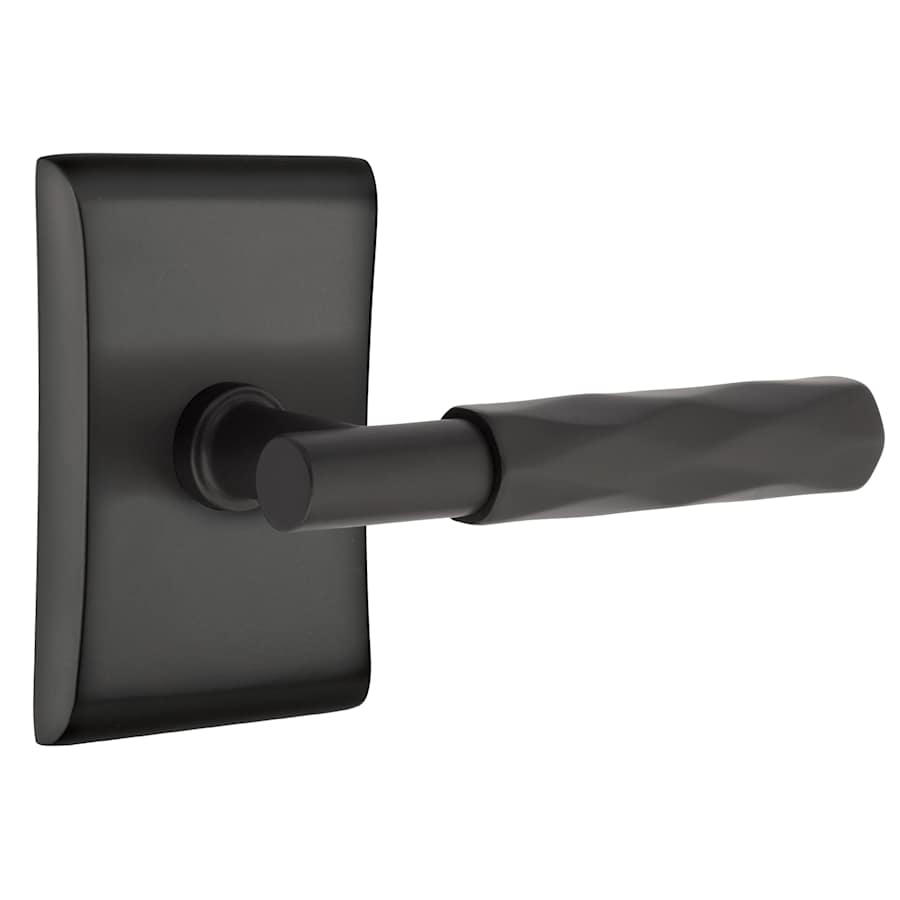

Multiple finishes and stem options create unique combinations
Steam and handle will be permanently affixed
Crafted from solid brass for a premium feel
Handing can be selected for left or right handed doors
Includes a round or square corner latch faceplate
Installs on doors with 1-1/4″ to 3″ thickness
Covered under a Limited Lifetime Mechanical and 5 Year Finish Warranty
All necessary mounting hardware is included
Unlacquered Brass (US3NL) finish is available for an additional $40 to MSRP. Please contact Sales Representative to order
Product Technologies:
Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
28 Degree Premium Latch: Incorporates a unique chassis design that significantly shortens the rotation and creates a more crisp and ergonomic function.
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/4″ to 3″
Handing: Left or Right
Handle Length: 4-5/8″
Handle Projection: 2-1/4″
Latch Faceplate: Round Corner or Square Corner
Product Weight: 2 lbs.
Material: Brass
Product Variations:
505TR: Dummy Lever Set

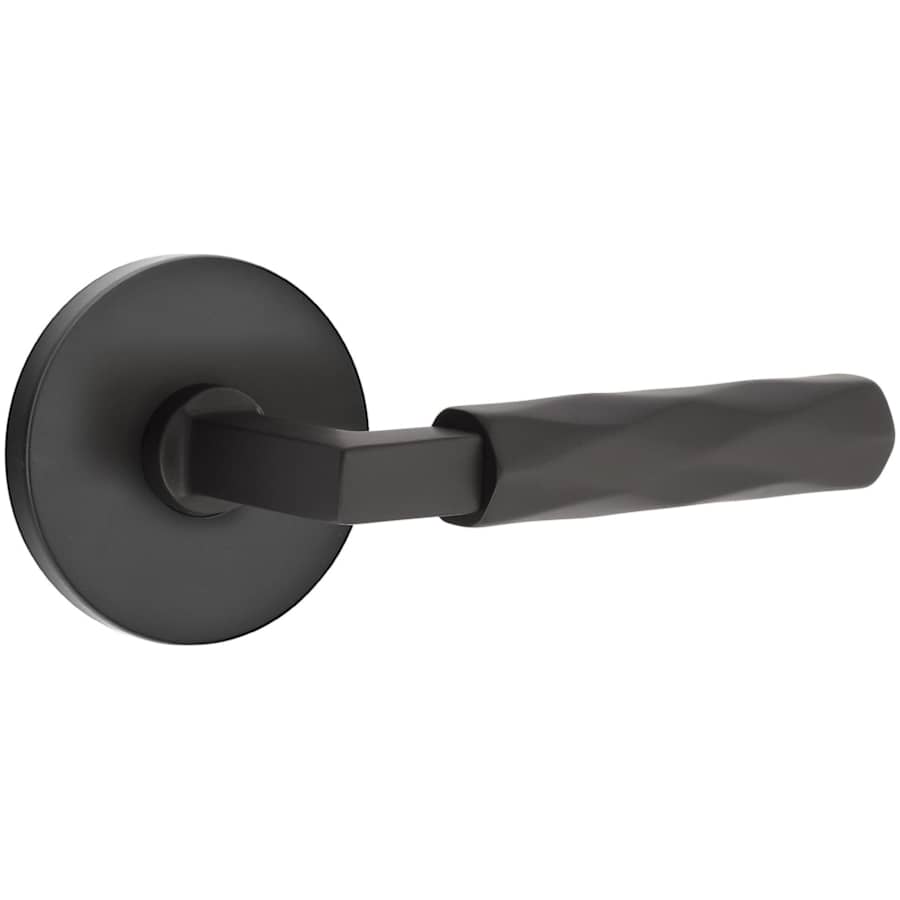

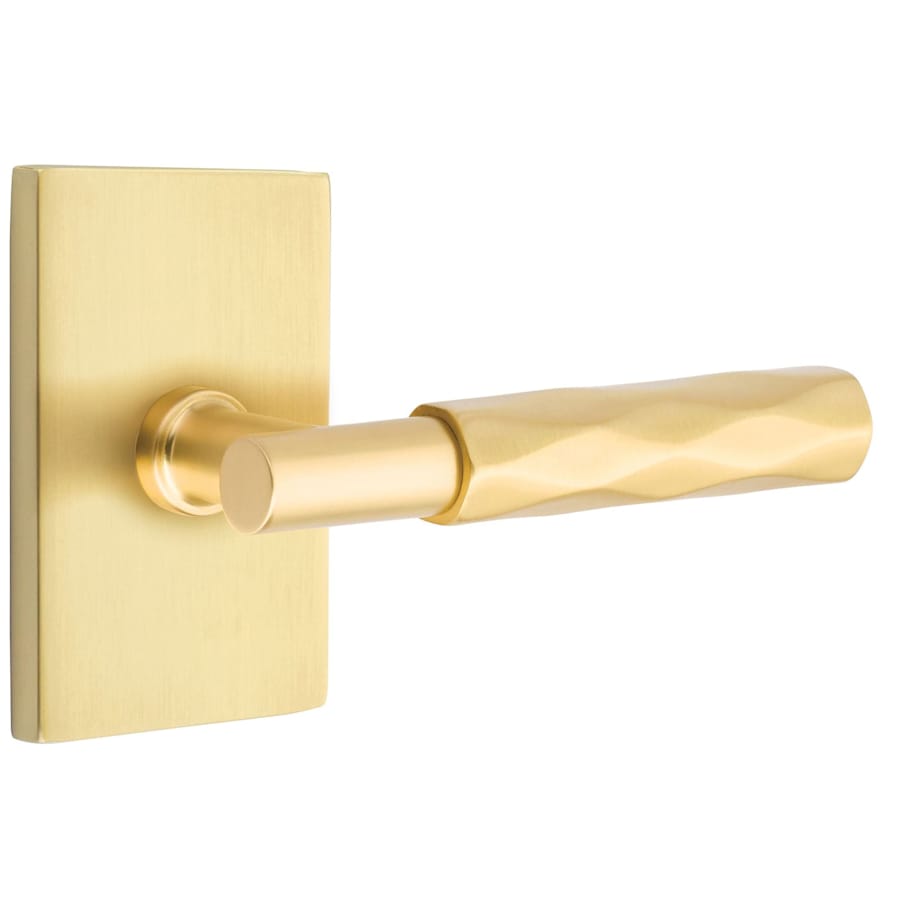

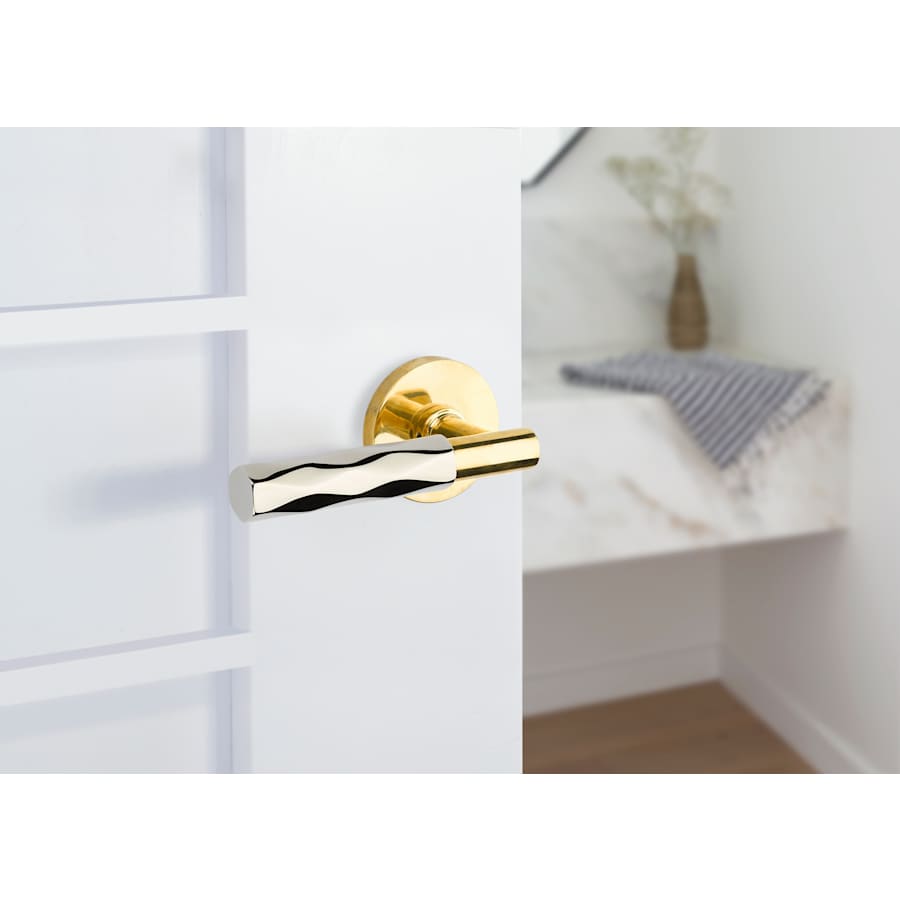

510TR (This Model): Passage Lever Set
520TR: Privacy Lever Set
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Tribeca Collection
Specifications
| Product Weight | 2 lbs. |
| Door Thickness | 1-1/2", 1-1/4", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-5/8", 2-7/8", 3" |
| Backset | 2-3/4", 2-3/8" |
| Cross Bore | 2-1/8" |
| Edge Bore | 1" |
| Handle Projection | 2.25 in. |
| Handle Length | 4.625 in. |
| Material | Brass |
| Thermostat | Transitional |
| Solid Construction | Solid Brass |
| Function | Passage |
| Handshower | Left, Right |
| Handle Design | Tribeca |
| Latch Faceplate | Round Corner, Square Corner |
| Concealed Screws | No |
| Rosette Shape | Rectangle, Round, Square |
| Lever Shape | Round, Straight |
| Collection | SELECT |
| Country Of Origin | USA |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| Approved for Commercial Use | No |
| Series | Tribeca |
| ADA | No |
| Made in America | Yes |
| Fire Rated | No |
| 28 Degree Latch | Yes |
| Color | Flat Black |
| Color Tone | Blacks |
