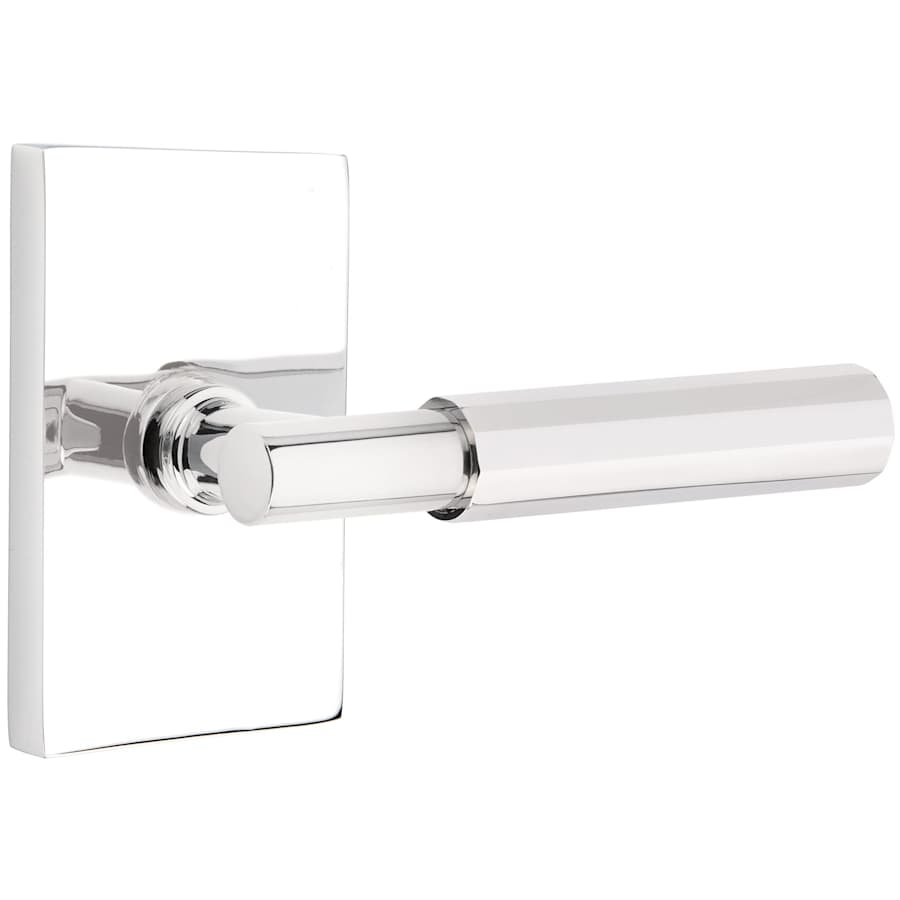

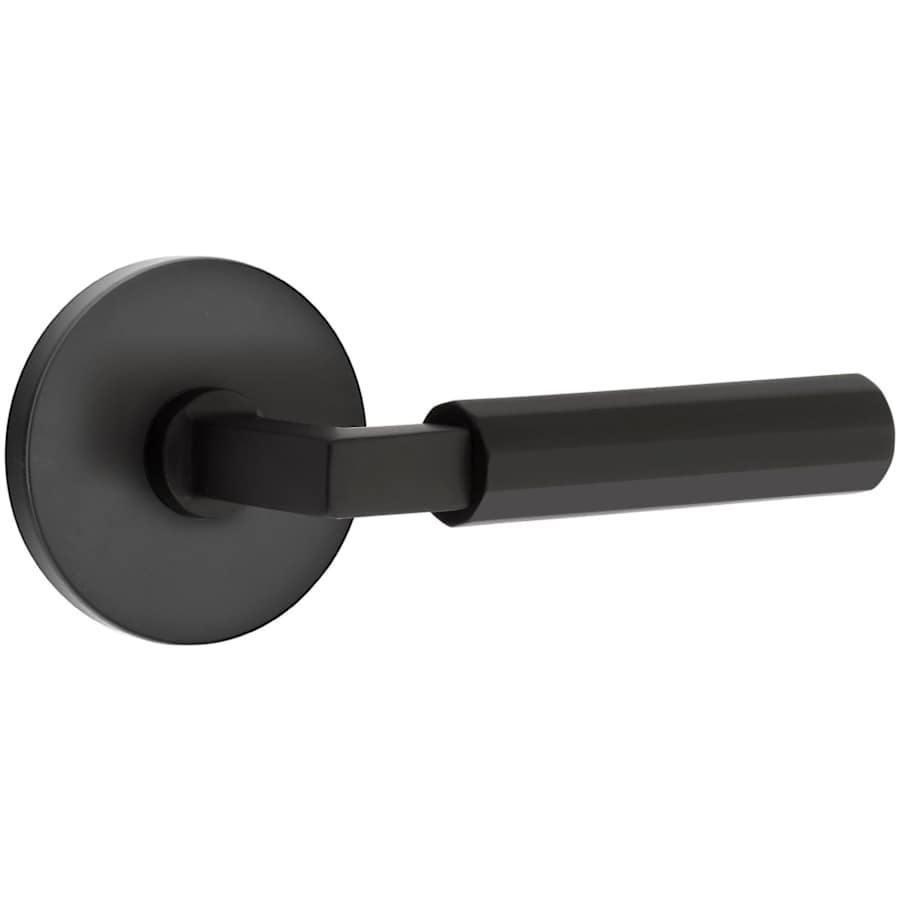

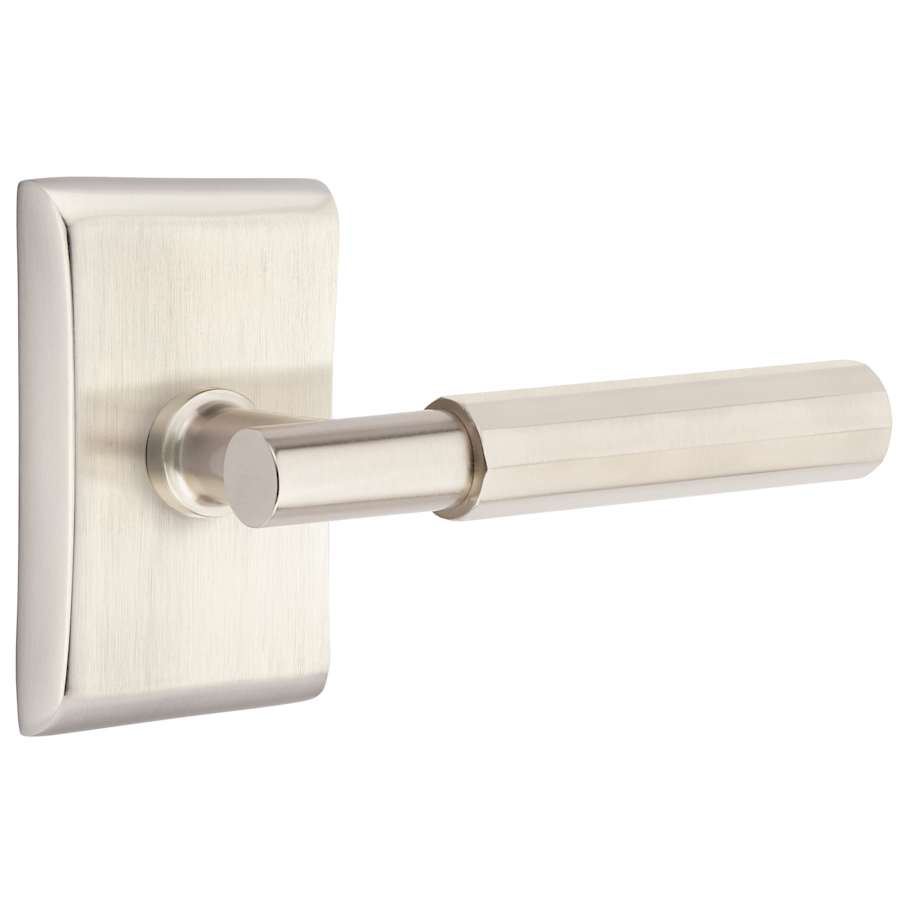

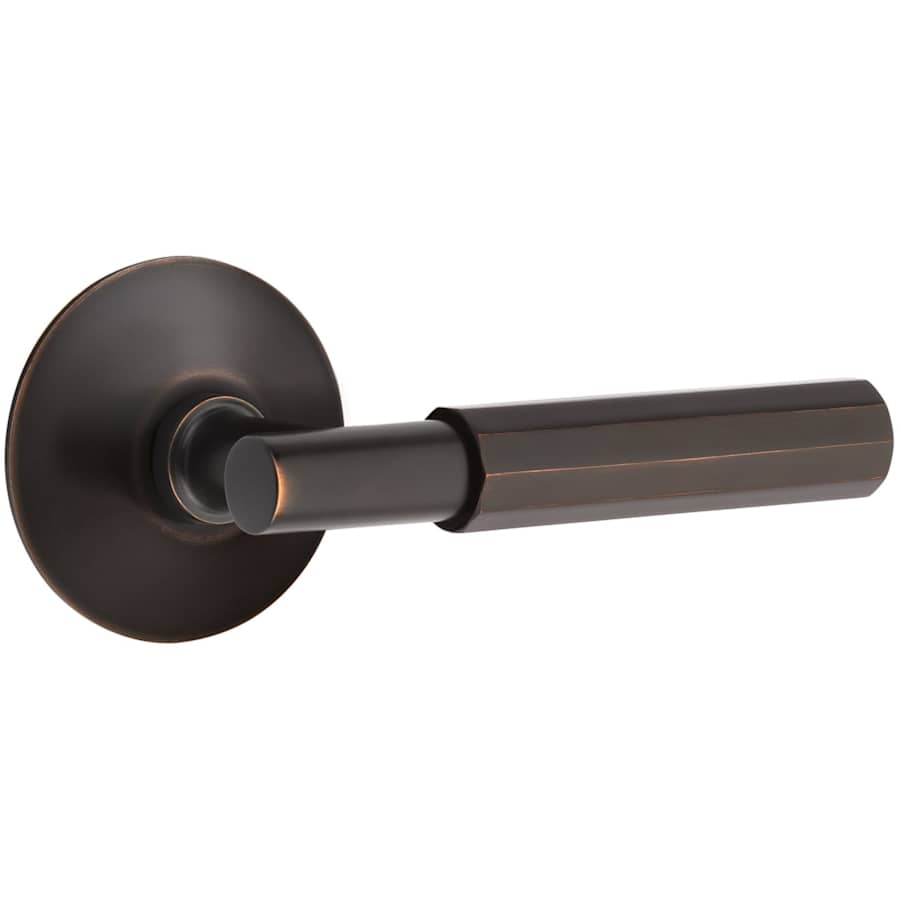

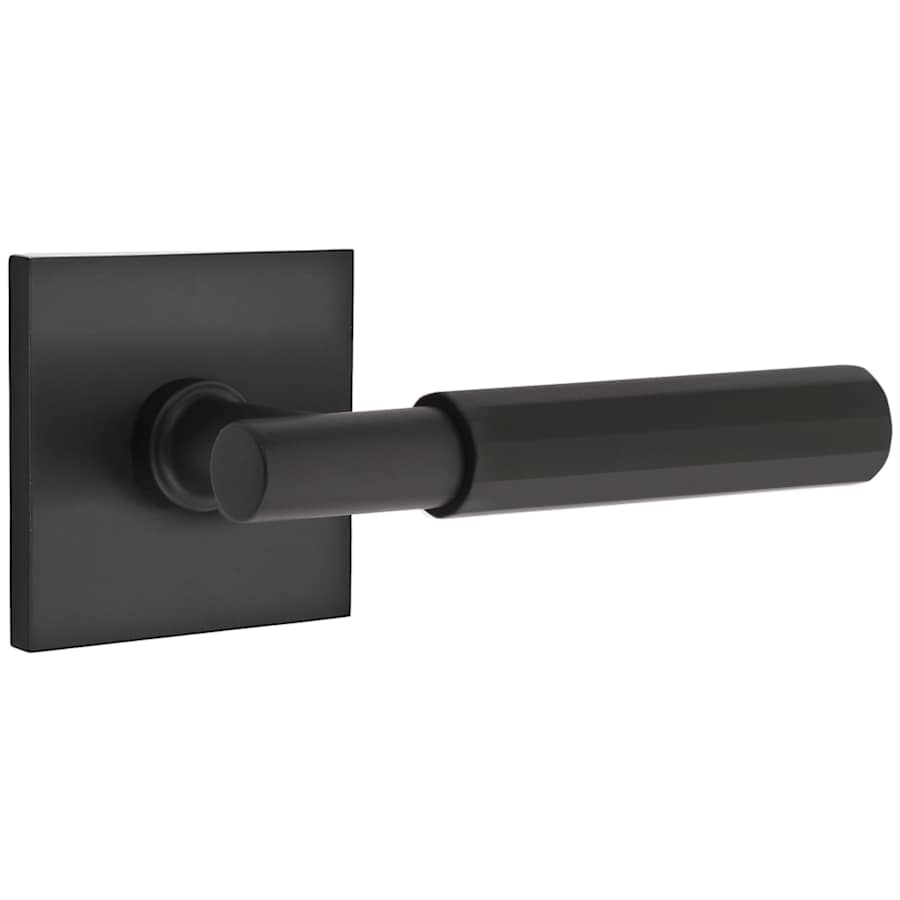

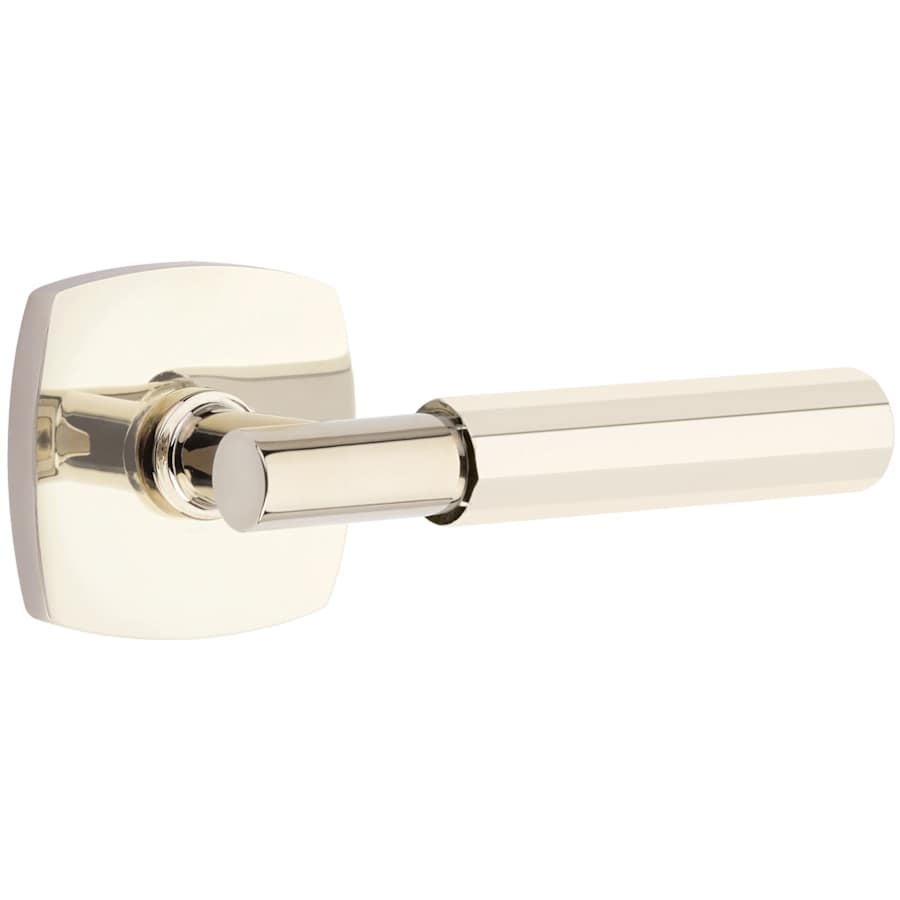

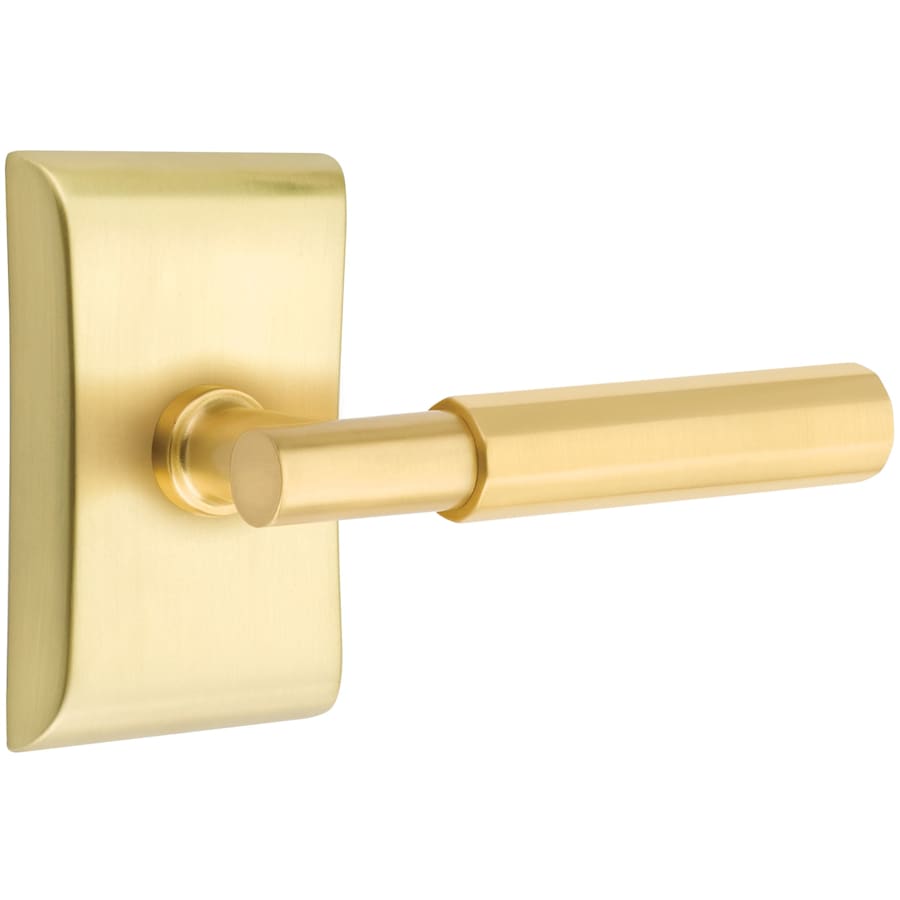

Emtek Faceted Passage Door Lever Set from the SELECT Brass Collection with Concealed Screws

All Emtek items are made to order. Please allow 1 to 2 weeks processing time.

Passage Function: Passage door hardware has no locking mechanism. Both the interior and exterior handles are always free making it perfect for hallways, closet doors, and anywhere else a lock isn’t needed. Passage door hardware can also be used in conjunction with a deadbolt to secure a back door or entrance.

Features:

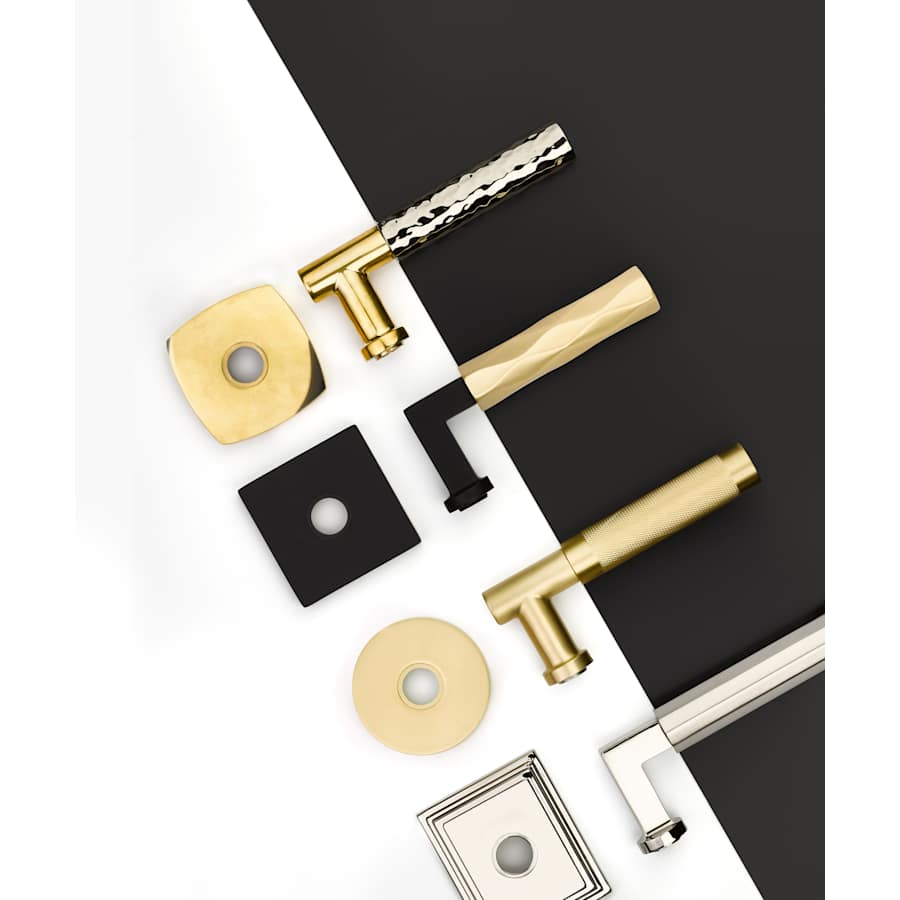

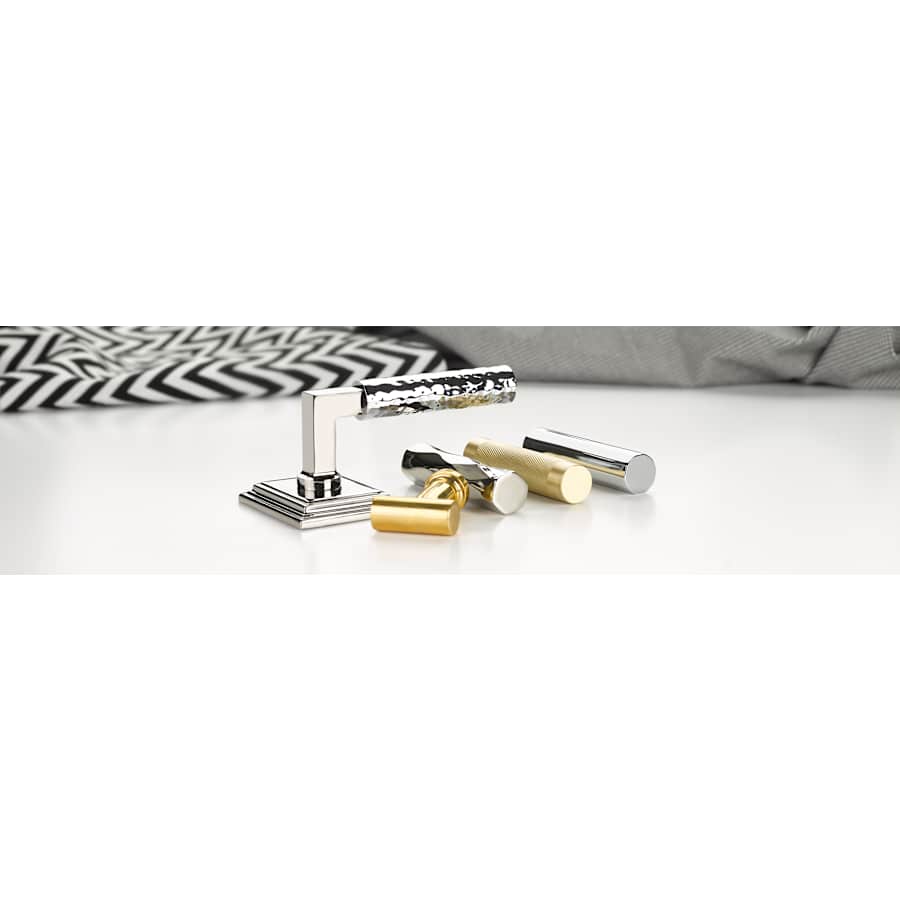

Emtek SELECT allows to fully customize your lever set
Multiple finishes and stem options create unique combinations
Steam and handle will be permanently affixed
Crafted from solid brass for a premium feel
Reversible handing installs on left or right handed doors
Includes a round or square corner latch faceplate
Installs on doors with 1-1/4″ to 3″ thickness
Covered under a Limited Lifetime Mechanical and 5 Year Finish Warranty
All necessary mounting hardware is included

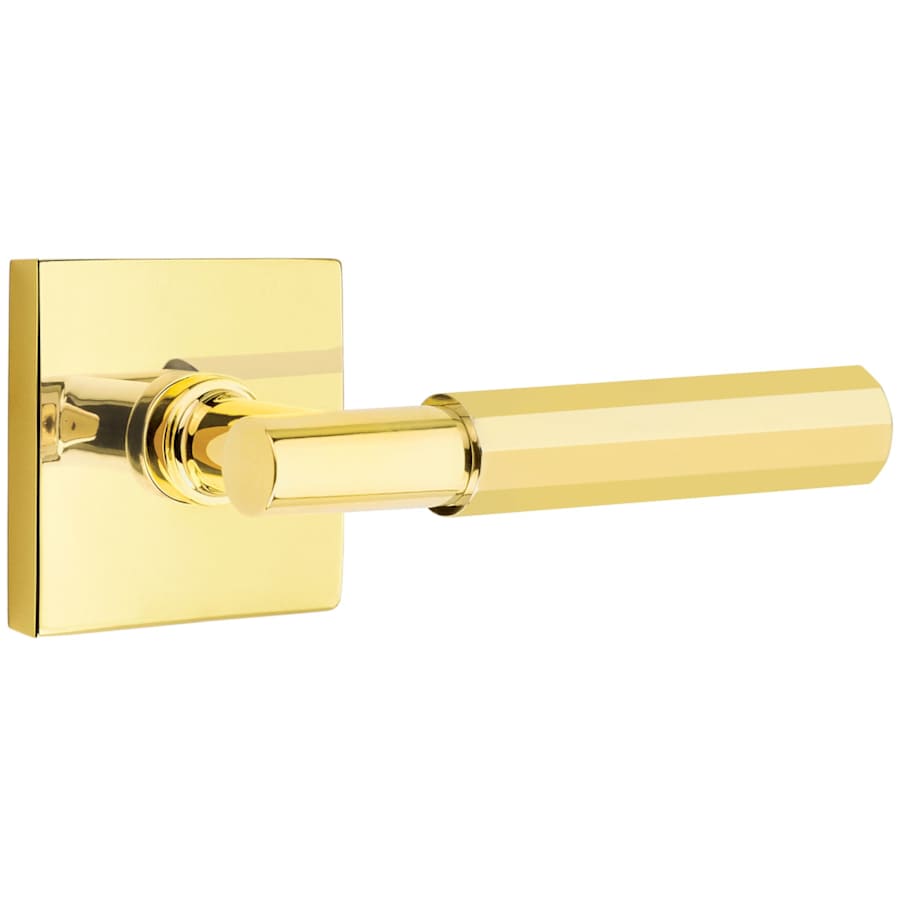

Unlacquered Brass (US3NL) finish is available for an additional $40 to MSRP. Please contact Sales Representative to order

Product Technologies:

Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
28 Degree Premium Latch: Emtek’s proprietary CF Mechanism design incorporates a unique chassis design that significantly shortens the rotation and creates a more crisp and ergonomic function.
Concealed Screws: Emtek knobs and levers that feature the CF Mechanism install cleanly on both the interior and exterior of the door, completely concealing all screws required for the installation. All you’ll ever see is the door and the hardware you’ve chosen for it—both seamlessly co-existing.

Specifications:

Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/4″ to 3″
Handing: Reversible Left or Right
Handle Length: 4-5/8″
Handle Projection: 2-1/8″
Latch Faceplate: Round Corner or Square Corner
Product Weight: 2 lbs.
Material: Brass

Product Variations:

C505FA: Dummy Lever Set
C510FA (This Model): Passage Lever Set
C520FA: Privacy Lever Set
