All Emtek items are made to order.
Â
Â
Privacy Function: Privacy door hardware features a locking mechanism on the interior for use on bedroom and bathroom doors where locking is needed. The exterior side features a small pin hole to unlock the door hardware from the outside.
Â
Features:

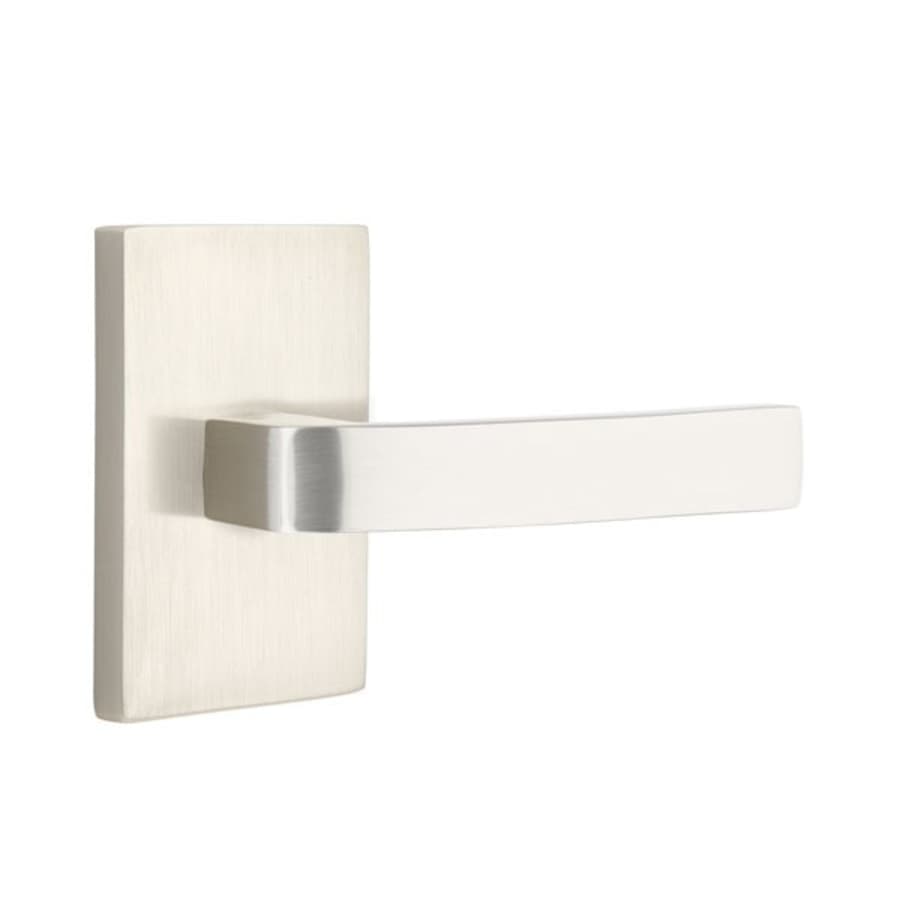

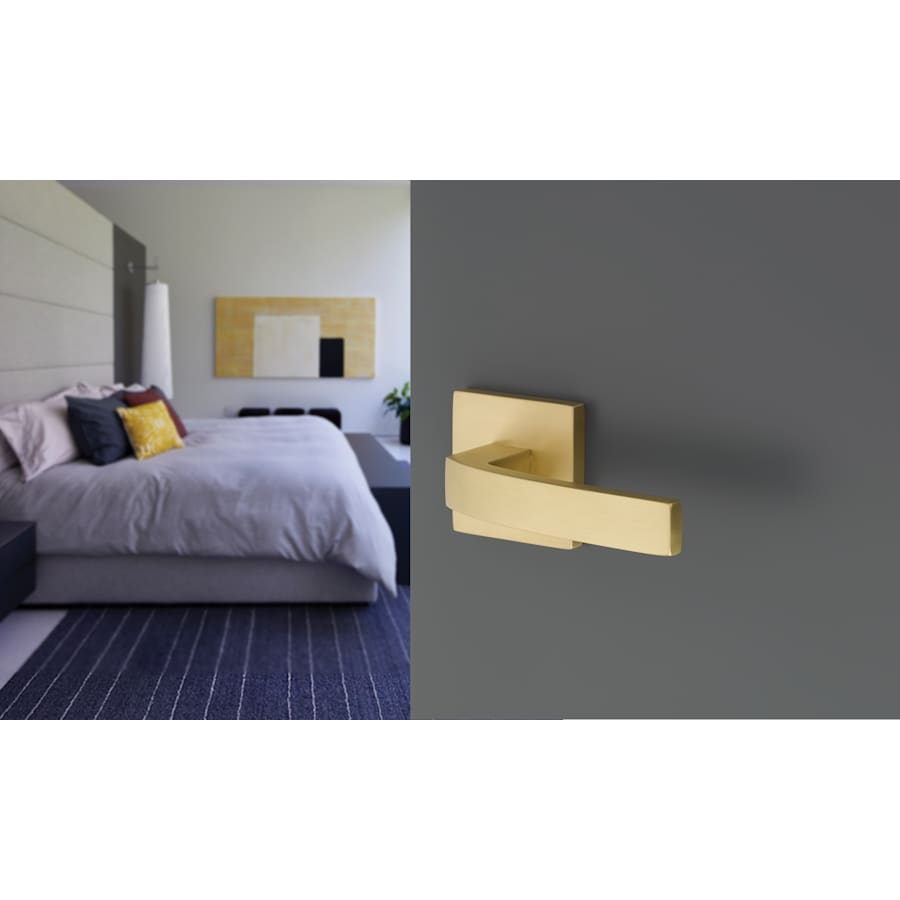

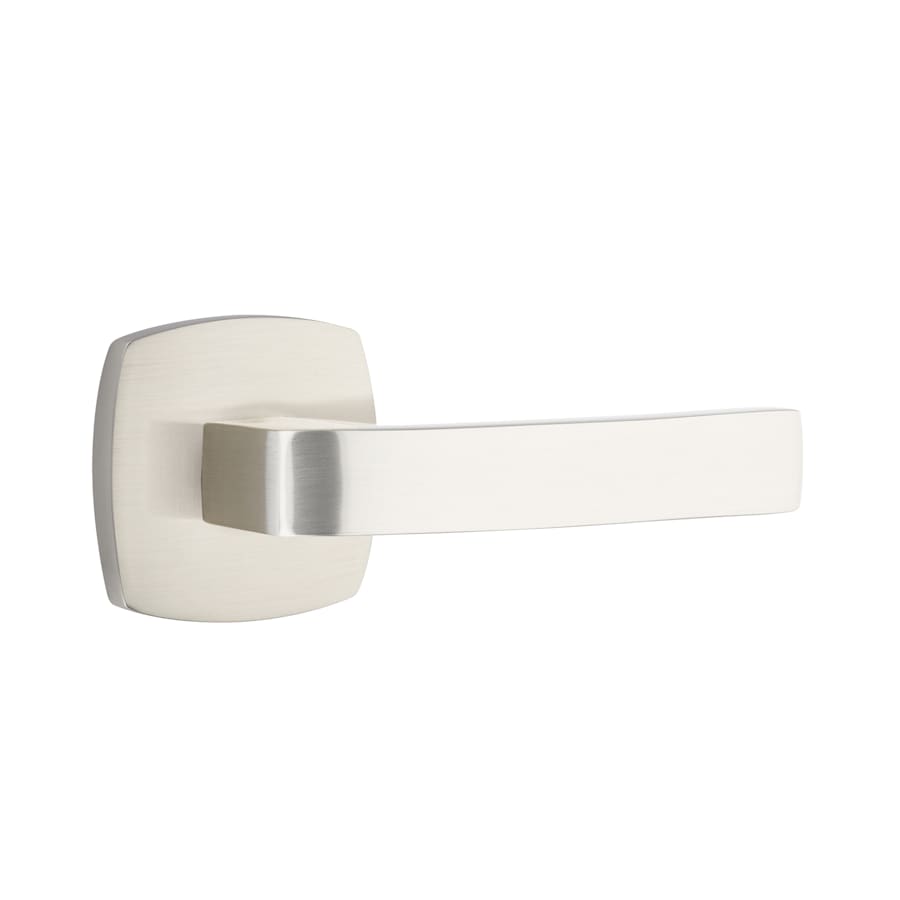

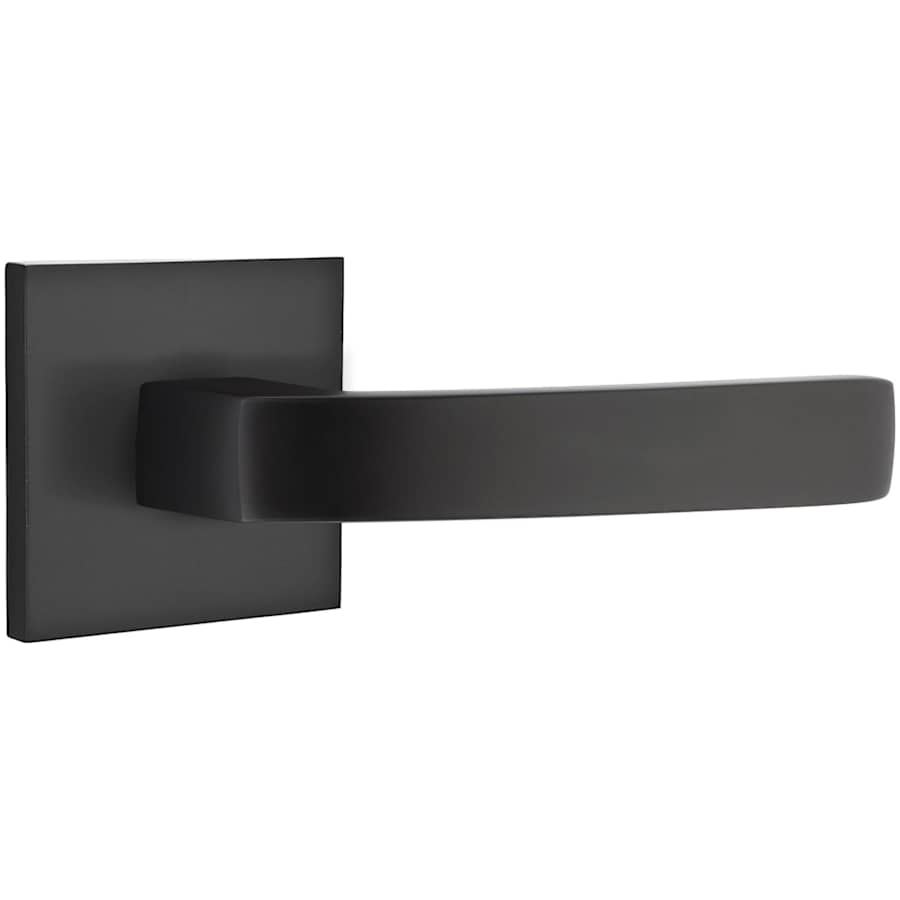

Image shows handle with square rosette, select your rosette above
Constructed of solid brass for premium feel and durability
Installs on doors with 1-1/2″ to 3″ thickness
Reversible handing installs on both left or right handed doors
Includes round corner or square corner faceplates
Covered under a Limited Lifetime Mechanical and 5 Year Finish Warranty
Product Technologies:
Solid Brass Construction: This product begins with raw bars of solid brass which are heated, and pounded into specially made dies—producing a stronger, more substantial product. The difference between lesser metals and heat forged brass is noticeable the minute you hold it in your hands—solid brass is heavier, smoother, and naturally resists corrosion.
CF Mechanism: Emtek’s proprietary CF Mechanism design incorporates a unique chassis design that significantly shortens the rotation and creates a more crisp and ergonomic function. This 28° latch mechanism comes standard with all units equipped with the CF Mechanism, affording a superior and robust operation.
Concealed Screws: Emtek knobs and levers that feature the CF Mechanism install cleanly on both the interior and exterior of the door, completely concealing all screws required for the installation. All you’ll ever see is the door and the hardware you’ve chosen for it—both seamlessly co-existing.
Specifications:
Backset: 2-3/4″ or 2-3/8″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-1/2″ to 3″
Handing: Reversible, Left or Right
Handle Length: 4-1/2″
Handle Projection: 2-1/8″
Latch Faceplate: Round Corner or Square Corner
Material: Brass
Product Variations:
C510BRL: Passage Door Lever Set w/ CF Mechanism
C520BRL (This Model): Privacy Door Lever Set w/ CF Mechanism
Additional Emtek Links
View the Manufacturer Warranty
Browse all Emtek Products
Emtek Breslin Collection
Specifications
| Material | Brass |
| Thermostat | Modern |
| Rosette Shape | Rectangle, Round, Square |
| Solid Construction | Solid Brass |
| Concealed Screws | Yes |
| Function | Privacy |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Round Corner, Square Corner |
| Lever Shape | Square, Straight |
| Locking Mechanism | Trim Lock |
| Collection | Brass Modern |
| Approved for Commercial Use | No |
| ADA | No |
| Manufacturer Warranty | 5 Year Finish, Limited Lifetime Mechanical |
| Series | Breslin |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-1/2", 1-1/4", 1-3/4", 1-3/8", 1-5/8", 1-7/8", 2", 2-1/2", 2-1/4", 2-1/8", 2-3/4", 2-3/8", 2-5/8", 2-7/8", 3" |
| Handle Projection | 2.125 in. |
| Backset | 2-3/4", 2-3/8" |
| Edge Bore | 1" |
| Handle Length | 4.5 in. |
| 28 Degree Latch | Yes |
| Color | Flat Black |
| Color Tone | Blacks |
