Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys

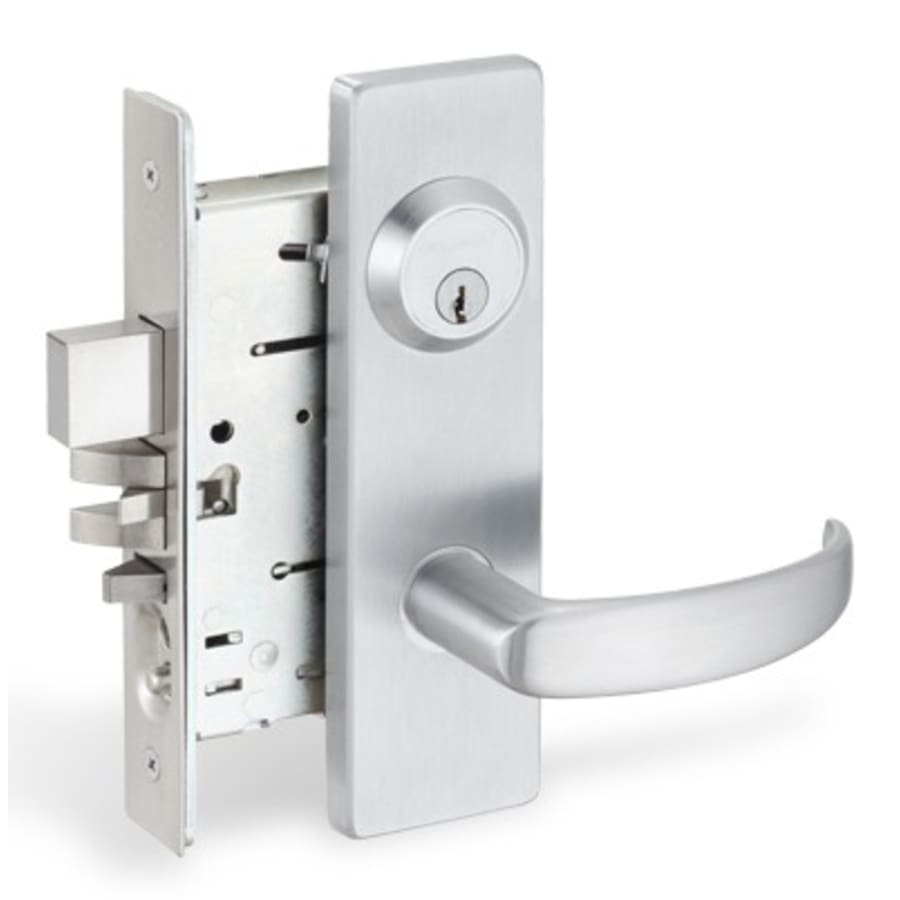

Image shown may differ slightly from actual product
Function:
Apartment Corridor Lock with Button Lockout: Latch bolt is operated by handle from either side, except when outside handle is made inoperative by buttons in face. Dead bolt is operated by turn inside. Key outside operates both bolts. Outside handle is unlocked by button on face. (ANSI F08/10)
Features:
Constructed of high quality materials for lasting durability
UL listed and fire rated for up to 3 hours
Easily reversible handing for your convenience
All necessary mounting hardware included
Covered by Falcon’s 1 year limited warranty
Specifications:
Handle Length: 4-1/2″
Handle Projection: 2-1/2″
Door Thickness: 1-3/4″, 1-7/8″
Americans with Disabilities Act Compliant: No
ANSI Certification: A156.13
BHMA Certification: Grade 1
Additional Falcon Links
View the Manufacturer Warranty
Browse all Falcon Products
Falcon MA Series Collection
Specifications
| Product Weight | 4.5 lbs. |
| Width | 4.5 in. |
| Projection | 2.5 in. |
| Door Thickness | 1-7/8", 1-3/4" |
| Backset | 2-3/4" |
| Edge Bore | 1" |
| Thermostat | Transitional |
| Material | Steel |
| Handle Material | Metal |
| Handle Style | Lever |
| Concealed Screws | Yes |
| Function | Keyed Entry |
| Handshower | Reversible, Right, Left |
| Rosette Shape | Round |
| Cylinder | 5 Pin Schlage C |
| Cylinder Type | Single Cylinder |
| Keyway | C |
| Mounting | Sectional |
| Collection | MA Series |
| Certifications | ANSI, UL |
| Country Of Origin | USA |
| Manufacturer Warranty | 1 Year Limited |
| ADA | No |
| Approved for Commercial Use | Yes |
| Made in America | Yes |
| Fire Rated | Yes |
| BHMA Certification | Grade 1 |
| ANSI Certification | A156.13 |
| Color | Satin Chrome |
| Color Tone | Silver Tones |
