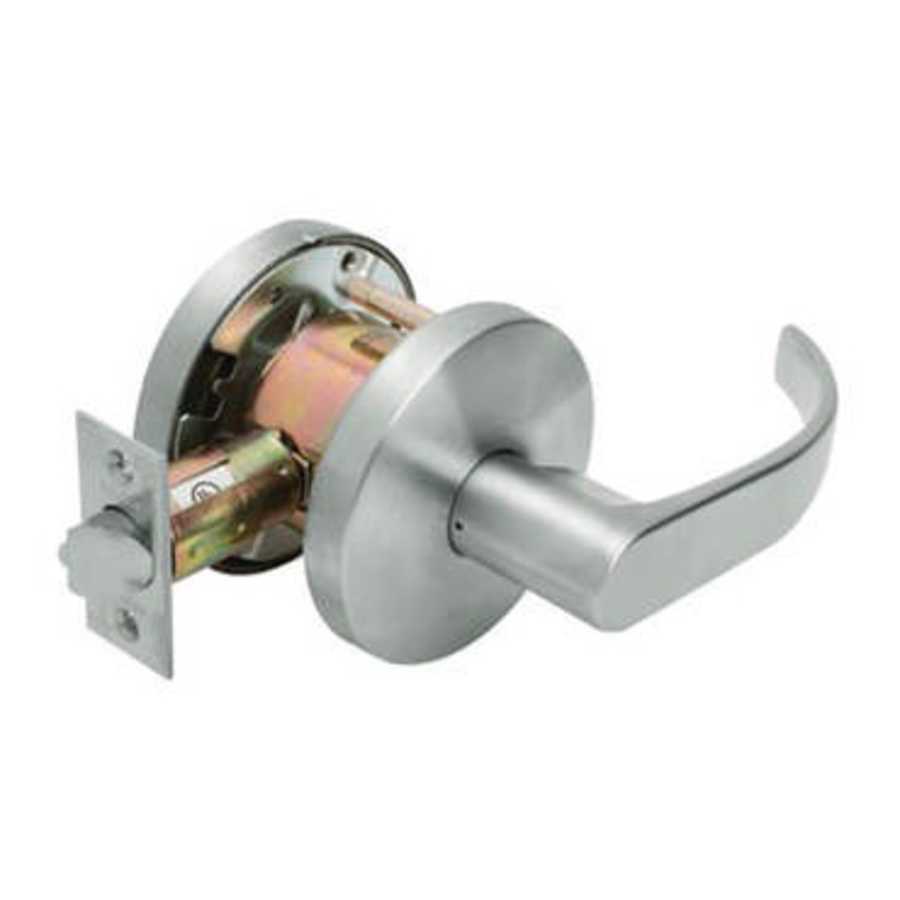

Image shown may differ slightly from actual product
Function:
Communicating/Exit Latch: Deadlocking latch bolt operated by inside handle. Non-removable blank plate outside. Inside handle always free.
Features:
Constructed of high quality materials for lasting durability
UL listed and fire rated for up to 3 hours
Easily reversible handing for your convenience
All necessary mounting hardware included
Covered by Falcon’s 10 year limited warranty
Specifications:
Handle Length: 4-3/4″
Handle Projection: 3″
Cross Bore: 2-1/8″
Door Thickness: 1-3/8″ – 1-3/4″
Americans with Disabilities Act Compliant: Yes
ANSI Certification: 156.2
BHMA Certification: Grade 2
Latch Faceplate: Square Corner
Additional Falcon Links
View the Manufacturer Warranty
Browse all Falcon Products
Falcon W Series Collection
Specifications
| Product Weight | 3.5 lbs. |
| Backset | 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-3/8", 1-1/2", 1-5/8" |
| Edge Bore | 1" |
| Handle Projection | 3 in. |
| Trim Height | 3.5 in. |
| Trim Width | 3.5 in. |
| Handle Length | 4.75 in. |
| Manufacturer Warranty | 10 Year Limited |
| ADA | Yes |
| Certifications | ANSI, UL |
| Collection | W Series |
| Country Of Origin | USA |
| Approved for Commercial Use | Yes |
| Fire Rated | Yes |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Made in America | Yes |
| Material | Zinc |
| Thermostat | Transitional |
| Concealed Screws | Yes |
| Function | Passage, Exit Only |
| Handshower | Right, Reversible, Left |
| Handle Material | Metal |
| Latch Faceplate | Square Corner |
| Rosette Shape | Round |
| Lever Shape | Straight |
| Color | Bright Brass |
| Color Tone | Brass Tones |
