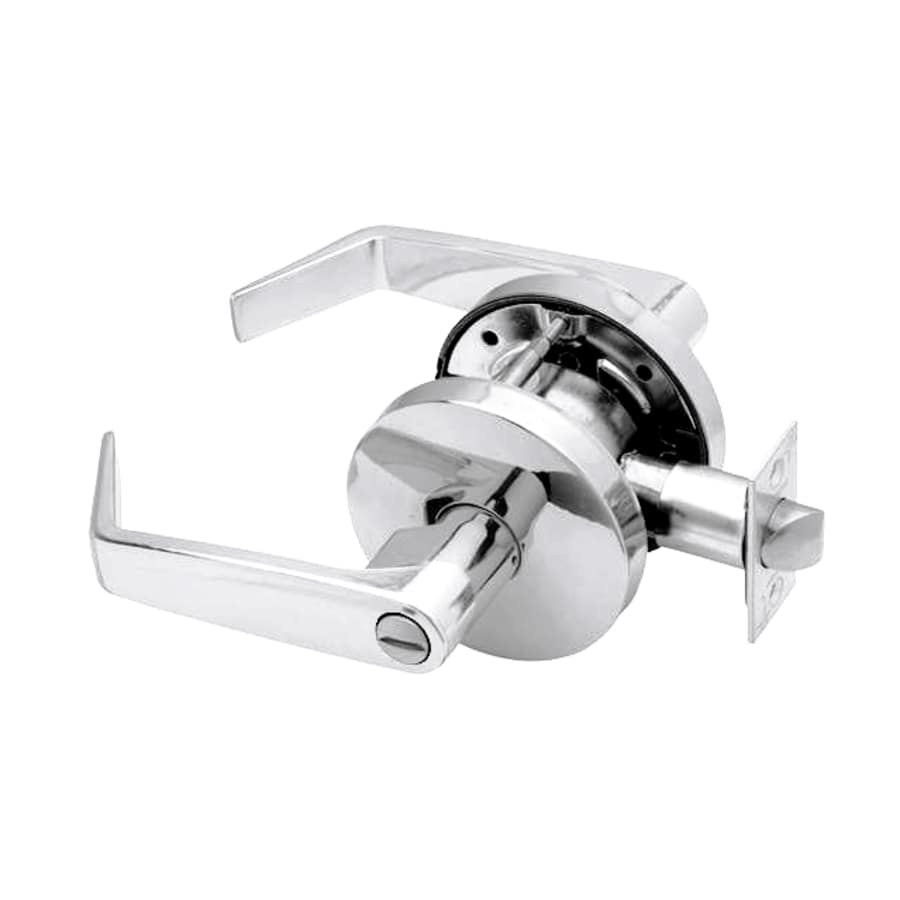

Image shown may differ slightly from actual product
Function:
Privacy Lock: Latch bolt operated by handles. Outside handle is locked by push button on inside handle. Rotating inside handle or closing door releases push button and frees outside handle. Inside handle is always free. Emergency release in outside handle unlocks door. (ANSI 76)
Features:
Constructed of high quality materials for lasting durability
UL listed and fire rated for up to 3 hours
Easily reversible handing for your convenience
All necessary mounting hardware included
Covered by Falcon’s 10 year limited warranty
Specifications:
Handle Length: 4-1/2″
Handle Projection: 2-1/2″
Cross Bore: 2-1/8″
Door Thickness: 1-3/8″ – 1-3/4″
Americans with Disabilities Act Compliant: Yes
ANSI Certification: 156.2
BHMA Certification: Grade 2
Latch Faceplate: Square Corner
Additional Falcon Links
View the Manufacturer Warranty
Browse all Falcon Products
Falcon W Series Collection
Specifications
| Product Weight | 3.5 lbs. |
| Backset | 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/8", 1-3/4", 1-1/2", 1-5/8" |
| Edge Bore | 1" |
| Handle Projection | 2.5 in. |
| Trim Height | 3.5 in. |
| Trim Width | 3.5 in. |
| Handle Length | 4.5 in. |
| Manufacturer Warranty | 10 Year Limited |
| ADA | Yes |
| Certifications | ANSI, UL |
| Collection | W Series |
| Country Of Origin | USA |
| Approved for Commercial Use | Yes |
| Fire Rated | Yes |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Made in America | Yes |
| Material | Zinc |
| Thermostat | Transitional |
| Concealed Screws | Yes |
| Function | Privacy |
| Handshower | Right, Reversible, Left |
| Handle Material | Metal |
| Latch Faceplate | Square Corner |
| Rosette Shape | Round |
| Lever Shape | Straight |
| Locking Mechanism | Push Button |
| Color | Bright Brass |
| Color Tone | Brass Tones |
