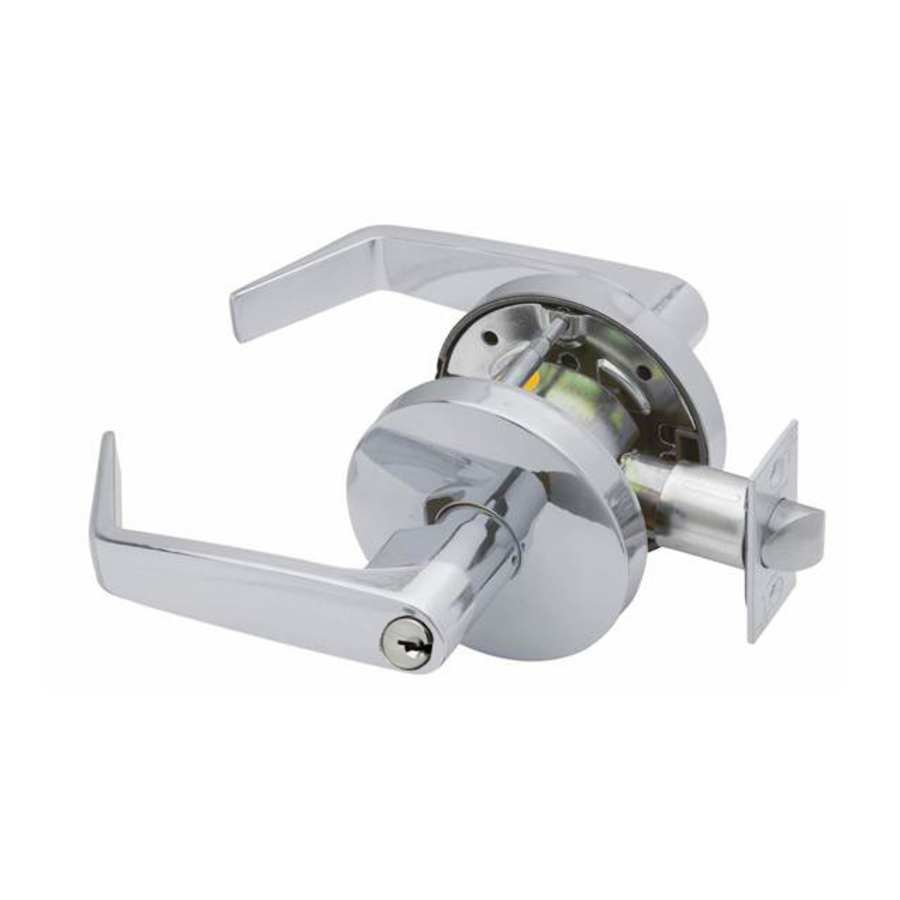

Image shown may differ slightly from actual product
Function:
Entry/Office Lock: Deadlocking latch bolt operated by levers. Turn/push button locking. Pushing and turning button locks outside lever, requiring use of a key for unlocking the door until button is manually unlocked. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever is always free. (ANSI F109)
Features:
Constructed of high quality materials for lasting durability
UL listed and fire rated for up to 3 hours
Easily reversible handing for your convenience
All necessary mounting hardware included
Covered by Falcon’s 10 year limited warranty
Specifications:
Handle Length: 4-1/2″
Handle Projection: 2-1/2″
Cross Bore: 2-1/8″
Door Thickness: 1-3/8″ – 1-3/4″
Americans with Disabilities Act Compliant: Yes
ANSI Certification: 156.2
BHMA Certification: Grade 2
Latch Faceplate: Square Corner
Additional Falcon Links
View the Manufacturer Warranty
Browse all Falcon Products
Falcon W Series Collection
Specifications
| Approved for Commercial Use | Yes |
| Collection | W Series |
| Country Of Origin | USA |
| Manufacturer Warranty | 10 Year Limited |
| ADA | Yes |
| Fire Rated | Yes |
| Certifications | ANSI, UL |
| Made in America | Yes |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Material | Zinc |
| Concealed Screws | Yes |
| Function | Keyed Entry, Office |
| Handshower | Reversible, Right, Left |
| Keyway | C |
| Latch Faceplate | Square Corner |
| Rosette Shape | Round |
| Thermostat | Transitional |
| Handle Material | Metal |
| Cylinder Type | Single Cylinder |
| Lever Shape | Straight |
| Backset | 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-5/8", 1-3/8", 1-3/4", 1-1/2" |
| Edge Bore | 1" |
| Handle Projection | 2.5 in. |
| Product Weight | 3.5 lbs. |
| Trim Height | 3.5 in. |
| Trim Width | 3.5 in. |
| Handle Length | 4.5 in. |
| Color | Bright Brass |
