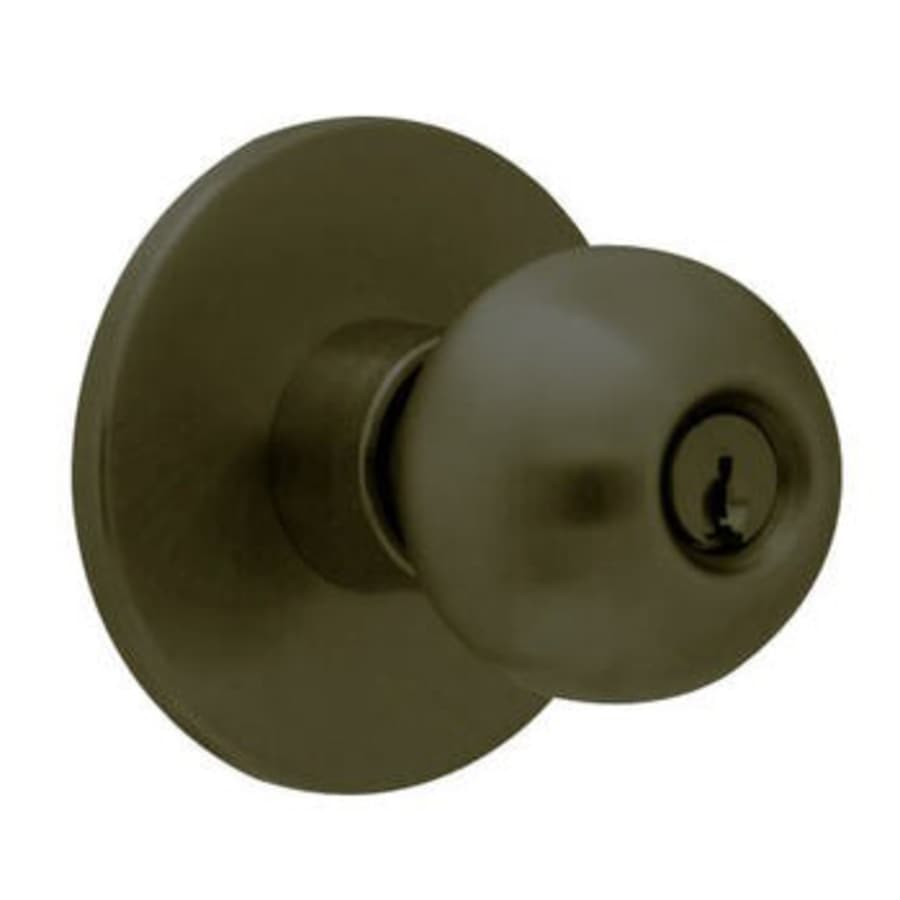

Image shown may differ slightly from actual product
Function:
Apartment Entrance Lock: Deadlocking latch bolt by handles. Turn/push button locking. Pushing and turning button locks outside handle, requiring use of a key for unlocking the door until button is manually unlocked. Pushing button locks outside handle until unlocked by key, by rotating inside handle, or by closing the door. Inside handle is always free.
Features:
Constructed of high quality materials for lasting durability
UL listed and fire rated for up to 3 hours
Easily reversible handing for your convenience
All necessary mounting hardware included
Covered by Falcon’s 10 year limited warranty
Specifications:
Handle Width: 2-1/4″
Handle Projection: 2-11/16″
Cross Bore: 2-1/8″
Door Thickness: 1-3/8″ – 1-3/4″
Americans with Disabilities Act Compliant: No
ANSI Certification: 156.2
BHMA Certification: Grade 2
Latch Faceplate: Square Corner
Additional Falcon Links
View the Manufacturer Warranty
Browse all Falcon Products
Falcon W Series Collection
Specifications
| Approved for Commercial Use | Yes |
| Collection | W Series |
| Country Of Origin | USA |
| Manufacturer Warranty | 10 Year Limited |
| ADA | No |
| Fire Rated | Yes |
| Certifications | ANSI, UL |
| Made in America | Yes |
| ANSI Certification | A156.2 |
| BHMA Certification | Grade 2 |
| Material | Zinc |
| Concealed Screws | Yes |
| Function | Keyed Entry, Apartment |
| Handshower | Right, Left, Reversible |
| Keyway | C |
| Latch Faceplate | Square Corner |
| Rosette Shape | Round |
| Shape | Ball |
| Thermostat | Transitional |
| Handle Material | Metal |
| Cylinder Type | Single Cylinder |
| Lock Style | Single Point |
| Backset | 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-5/8", 1-3/8", 1-1/2" |
| Edge Bore | 1" |
| Handle Height | 2.6875 in. |
| Handle Projection | 2.6875 in. |
| Handle Width | 2.25 in. |
| Product Weight | 1.8 lbs. |
| Trim Height | 3.5 in. |
| Trim Width | 3.5 in. |
| Cylinder Included | Yes |
| Interchangeable Core | No |
| Color | Oil Rubbed Bronze |
