Features:

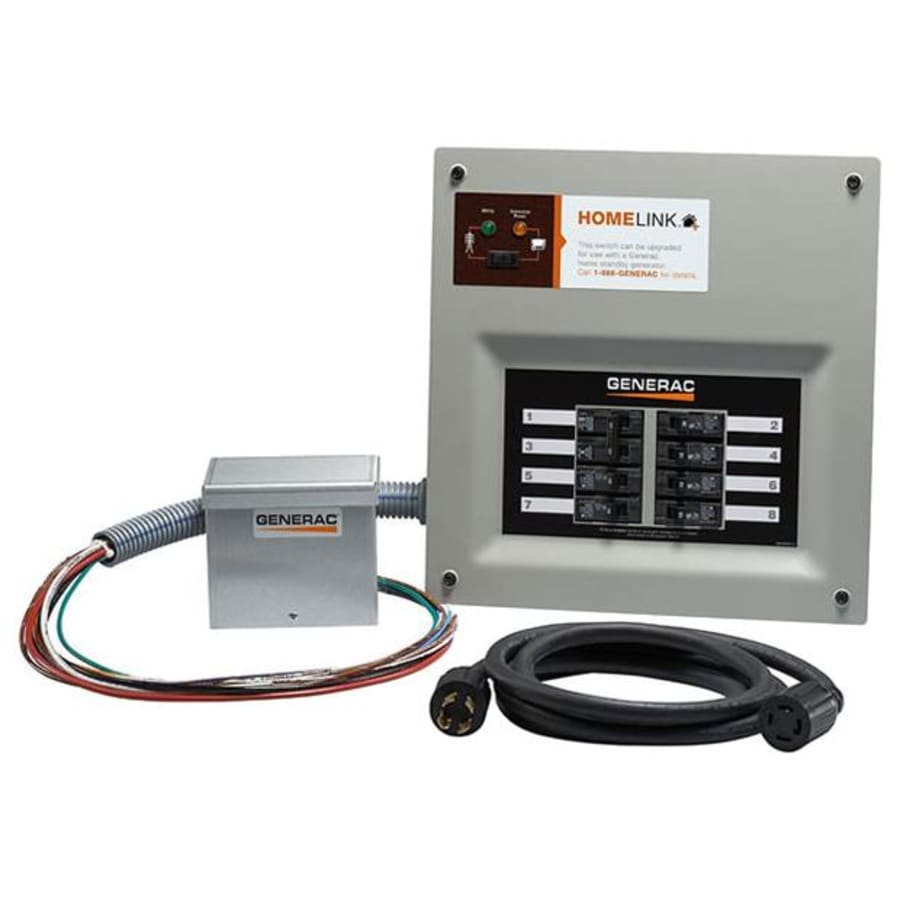

Generac 30-A HomeLink™ Upgradeable Manual Transfer Switch
Meets your needs today and when you’re ready to upgrade
Pre-Wired 30-Amp Manual Transfer Switch
Interchangeable breakers make it easy to reconfigure or expand
Also Includes
(1) 10′ 30-Amp (L14-30) Power Cord
(1) 30-Amp (L14-30) Aluminum Power Inlet Box (must be hardwired)
Safely Power Hard-Wired Circuits
The electricity you need to power your furnace, sump pumps, etc.
From Manual to Automatic – Essential Circuit Coverage
From a portable to a standby generator (11kW Max)
Ready When You Are (By Cert Electrician)
Field-upgradable to an automatic switch panel and new faceplate

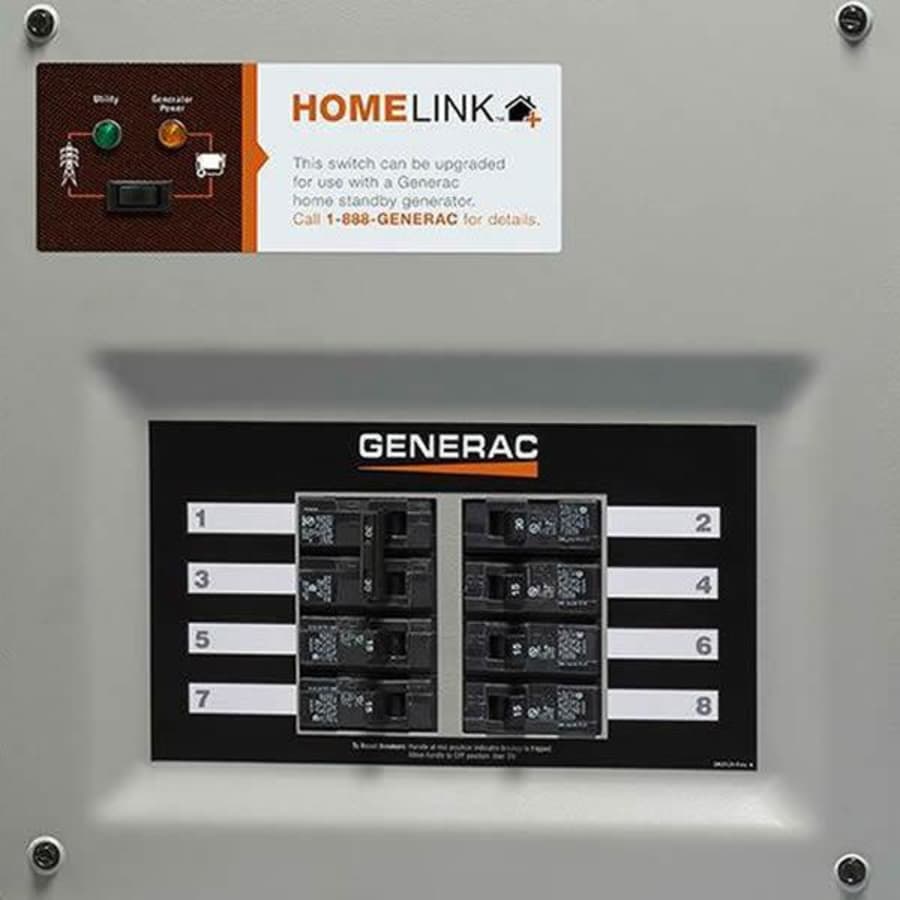

Includes 8 Total Circuits (Expands up to 10)
(1) 30-Amp 2-Pole, (1) 20-Amp 1-Pole, and (5) 15-Amp 1-Pole
Versatile Design and Flexible and Cost Effective Installation
Can be used with GFCI and Non-GFCI portable generators
Uses 1″ standard, tandem, GFCI and AFCI breakers
*Requires 50-Amp 2-Pole Breaker in Main Load Center (Not Included)
5-Year Limited Warranty
Overview:
Transfer Switch Style: Select Circuit
Product Weight: 27.2 lbs
Depth: 4″
Width: 15-13/16″
Height: 15-3/8″
Specifications:
Voltage: 240V
Frequency: 60 Hz
Electrical Phases: 1
Max Generator Input: 30A
Enclosure Material: NEMA 1R
Product Assurance:
Certifications: UL
Warranty: 5 Year
Additional Generac Links
View the Manufacturer Warranty
Browse all Generac Products
Specifications
| Manufacturer Warranty | 5 Year |
| Certifications | UL |
| Height | 15.4 in. |
| Depth | 4 in. |
| Width | 15.8 in. |
| Product Weight | 27.2 lbs. |
| Cord Length | 120 in. |
| Voltage | 240 |
| Amperage | 30 |
| Frequency | 60 Hertz |
| Plug Type | NEMA L14-30R |
| Electrical Phases | 1 |
| Max Generator Input | 30 |
| Pre-Wired Circuits | (1) 20A 120V, (1) 30A 240V, (5) 15A 120V |
| Running Wattage | 7500 |
| Transfer Switch Style | Select Circuit |
| Wire Gauge | 10 |
| Number of Circuits | 8 |
| Enclosure Material | NEMA 1R |
