Features:

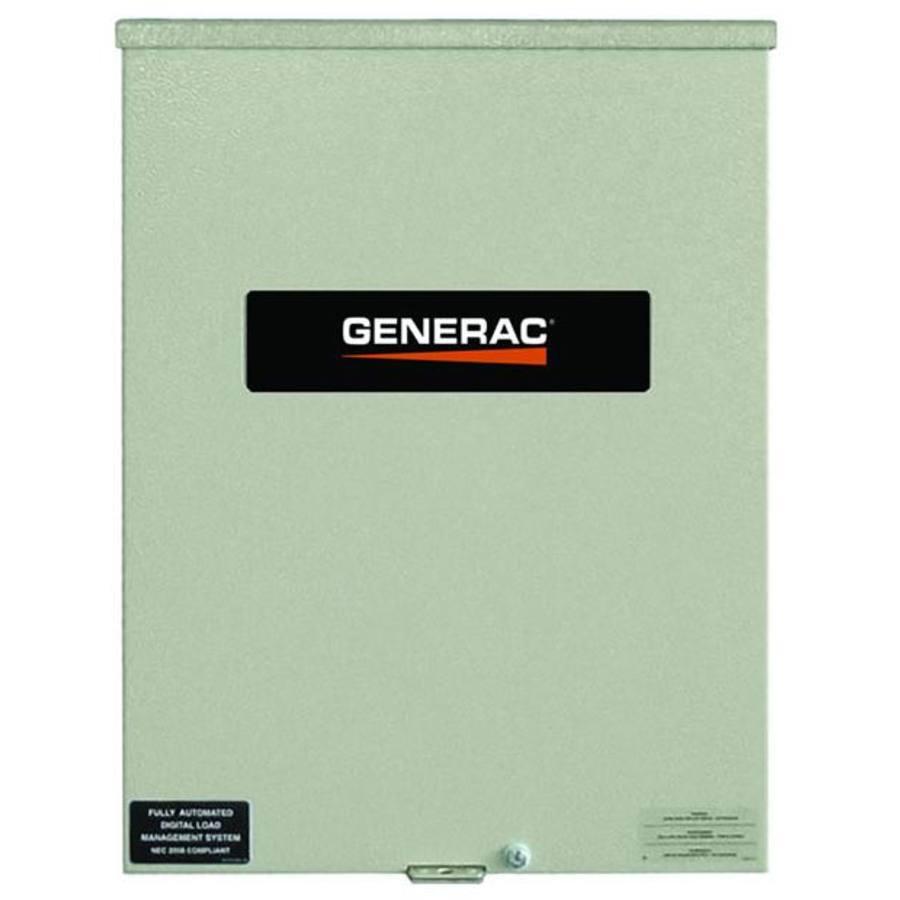

400-Amp Automatic Transfer Switch with Power Management
For Generac Evolution™ and Generac Nexus™ Controllers
Designed For Standard Installation
Requires a sub-panel for overload protection
Digital Power Management Technology (DPM)
Allows your generator to work smarter, not harder
Be Smart….Get More Out Of Your Generator
Cycles power on and off as needed for different appliances
Manage Up To (4) Individual HVAC Loads – No Hardware Required
Great for homes with multiple air conditioners (24 VAC controlled)
Up To (8) Smart Management Modules (SMM) (Sold Separately)
Frequency (Hz) monitoring design, no control wire required
Versatile design, easily prioritize loads and lock-out non-essential loads
NEMA 3R Indoor/Outdoor Rated
Steel, wall mountable weather-proof enclosure
Electrostatically applied and baked powder coating paint (gray)
Tech Spec Summary: Only For Use with Generac Generators
Load Transition Type: Open Transition
Withstand Rating: 22,000 Amps — Lug Range: #4 or 1/0 – 250 MCM
5-Year Limited Warranty – UL Listed
Overview:
Transfer Switch Style: Standard Installation
Product Weight: 133 lbs
Depth: 10″
Width: 24″
Height: 36″
Specifications:
Voltage: 120, 240V
Frequency: 60 Hz
Electrical Phases: 1
Max Generator Input: 400A
Max Utility Input: 400A
Enclosure Material: NEMA 3R
Product Assurance:
Certifications: UL
Warranty: 5 Year
Additional Generac Links
View the Manufacturer Warranty
Browse all Generac Products
Specifications
| Height | 36 in. |
| Width | 24 in. |
| Depth | 10 in. |
| Product Weight | 133 lbs. |
| Wattage | 96000 |
| Voltage | 120, 240 |
| Electrical Phases | 1 |
| Amperage | 400 |
| Frequency | 60 Hertz |
| Max Generator Input | 400 |
| Max Utility Input | 400 |
| Running Wattage | 96000 |
| Transfer Switch Style | Standard Installation |
| Approved for Commercial Use | Yes |
| Certifications | UL |
| Manufacturer Warranty | 5 Year |
| Enclosure Material | NEMA 3R |
