Features:

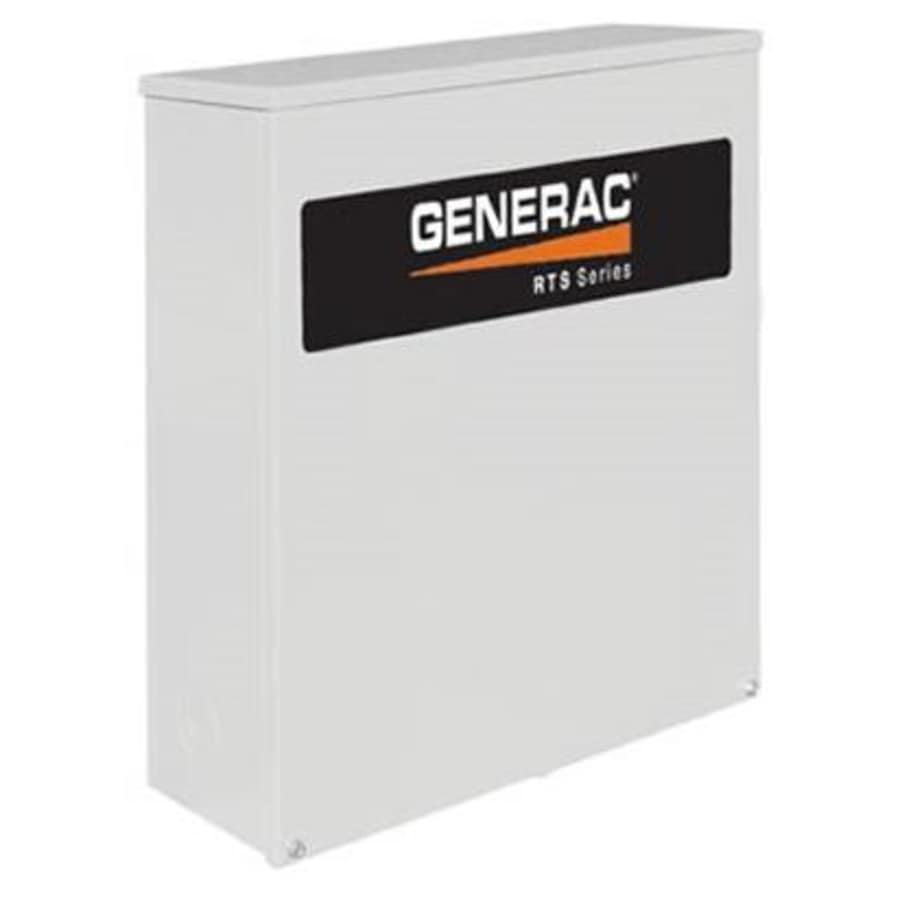

3-Phase Automatic Transfer switch
Only works with 120/240V 3-Phase generators
Fully Automatic Operation
Standard Installation
May require a sub-panel or disconnect for serviceability
Larger Applications
NEMA 3R Aluminum Enclosure
For Use With Generac Generators Only
UL Listed 2200
Overview:
Transfer Switch Style: Standard Installation
Product Weight: 49 lbs
Depth: 7-1/8″
Width: 20-3/16″
Height: 24-1/8″
Specifications:
Voltage: 120, 240V
Frequency: 60 Hz
Electrical Phases: 3
Max Generator Input: 200A
Max Utility Input: 200A
Enclosure Material: NEMA 3R
Product Assurance:
Certifications: UL
Warranty: 5 Year
Additional Generac Links
View the Manufacturer Warranty
Browse all Generac Products
Generac RTS Collection
Specifications
Dimensions and Measurements
| Height | 24.1 in. |
| Width | 20.2 in. |
| Depth | 7.1 in. |
| Product Weight | 49 lbs. |
| Length | 24.1 in. |
Warranty and Product Information
| Manufacturer Warranty | 5 Year |
| Certifications | UL |
| CARB approved | Yes |
Electrical and Operational Information
| Voltage | 120, 240 |
| Amperage | 200 |
| Frequency | 60 Hertz |
| Electrical Phases | 3 |
| Max Generator Input | 200 |
| Max Utility Input | 200 |
| Transfer Switch Style | Standard Installation |
Characteristics and Features
| Enclosure Material | NEMA 3R |
