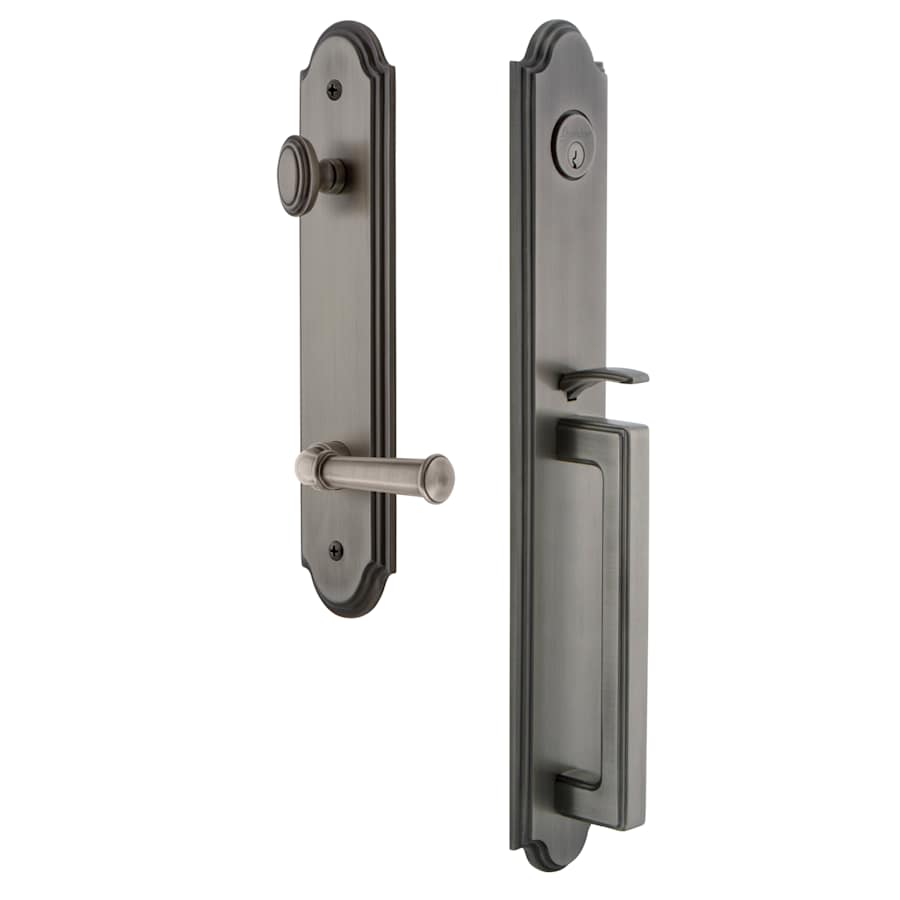

Keyed Entry (Single Cylinder) Function:This single cylinder handleset is keyed on the exterior with an associated locking mechanism on the inside that can quickly and easily lock or unlock the deadbolt latch. The exterior handle has a thumb plate that depresses to disengage the door latch and the interior handle features a lever or knob. Single cylinder locks are most commonly used to secure entrances to a residence or place of business.
Features:
Hand forged solid brass and genuine lead crystal
Handing is reversible for left or right handed doors
Easily installs on standard prepared doors
Includes a 2-3/4″ backset and square corner latch
Covered by a Limited Lifetime Mechanical and 10 Year Finish Warranty
Does not fulfill criteria of the American’s with Disabilities Act (ADA)
Hand assembled in the United States
Two keys will be shipped per lock. Three or more items keyed alike will ship a total of 6 keys
Product Technologies:
Solid Brass Construction: Grandeur rosettes and backsets are forged from a solid piece of brass. This process yields a denser, stronger and higher quality product that can better display intricate designs than casted door hardware.
Genuine Crystal: Grandeur crystal knobs are constructed of at least 24% lead crystal. Crystal is both stronger and more reflective than glass; displaying a bright sparkle and rainbow prism effect.
Specifications:
Backset: 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/4″ to 2″
Handing: Right
Overall Height: 19″
Width: 3″
Grip Projection: 3″
Center to Center: 5-1/2″
Grip Center to Center: 8-7/16″
Interior Height: 11″
Interior Width: 2-1/2″
Lever Length: 4-3/4″
Locking Mechanism: Thumbturn
Cylinder: 5 Pin C
Latch Faceplate: Square Corner
Material: Brass
Additional Grandeur Links
View the Manufacturer Warranty
Browse all Grandeur Products
Grandeur Georgetown Collection
Specifications
| Product Weight | 8 lbs. |
| Backset | 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-7/8", 2" |
| Edge Bore | 1" |
| Handle Projection | 3 in. |
| Center to Center | 5.5 in. |
| Grip Center to Center | 8.46 in. |
| Interior Handle Length | 4.75 in. |
| Interior Trim Height | 11 in. |
| Interior Trim Width | 2.5 in. |
| Trim Height | 19 in. |
| Trim Width | 3 in. |
| Material | Brass |
| Thermostat | Traditional |
| Shape | Round |
| Cylinder | 5 Pin C |
| Cylinder Type | Single Cylinder |
| Handshower | Right |
| Keyway | C |
| Latch Faceplate | Square Corner |
| Rosette Shape | Arch |
| Trim Design | Arc |
| Handle Style | Grip |
| Handle Material | Brass |
| Concealed Screws | No |
| Function | Keyed Entry |
| Locking Mechanism | Thumbturn |
| Interconnected | No |
| Mounting | Full Plate |
| Adjustable Throughbolt | No |
| Handle Design | D Grip |
| Interior Handle Style | Lever |
| Solid Construction | Solid Brass |
| Number of Keys | 2 |
| Lock Style | Single Point |
| Removable Core | No |
| ADA | No |
| Collection | Georgetown |
| Country Of Origin | USA |
| Made in America | Yes |
| Manufacturer Warranty | 10 Year Finish, Limited Lifetime Mechanical |
| Approved for Commercial Use | No |
| Series | Arc |
| Fire Rated | No |
| Interior Included | Yes |
| 28 Degree Latch | No |
| Cylinder Included | Yes |
| Interchangeable Core | No |
| Color | Antique Pewter |
| Color Tone | Greys |
