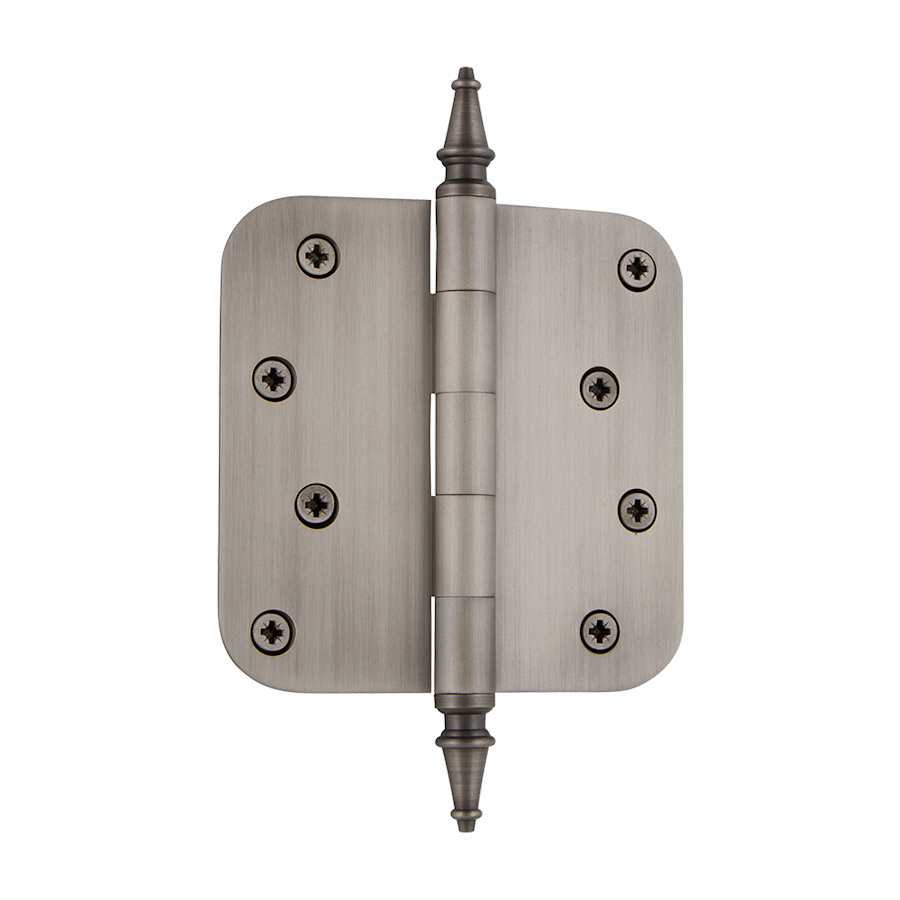

Grandeur 4 x 4 Inch Plain Bearing 5/8″ Radius Corner Mortise Door Hinge with Steeple Finial – Single Hinge

Features:

Includes a single hinge in each order
Precisely machined 5/8″ radius corners
Removable pin for easy installation
Packaged with hinge, hinge pins, and mounting hardware
Constructed with eight screw holes in a zig zag arrangement
Tested for residential strength applications
Covered by limited lifetime mechanical and 5 year finish warranties

Product Technologies:

Material – Solid Brass: Solid brass is prized for its resilience, durability, and beauty. It can always be polished back to its original sheen and is highly resistant to rusting. Solid brass is often available in finishes that other hinge materials are not.
Plain Bearing Hinge: Plain bearing hinges feature knuckles that are machined to a smooth surface, allowing them to move against one another without bearings. Plain bearing hinges are not recommended for heavy use on high traffic entrance ways, but meet the need of a standard residential door.
Mortise Hinge: Mortise door hinges mount flush with the surface of your door, providing maximum strength with the least interference with door functionality. It is recommended that three hinges be used on doors up to and including 7-1/2 feet, with one additional hinge for each additional 2-1/2 feet. Be sure to check your current hinges before making a purchase.

Specifications:

Height: 4″
Width: 4″
Material: Brass
Mounting Type: Mortise
Gauge (Thickness of Hinge): 0.0866″
Number of Knuckles: 5
Number of Holes: 8
Removable Pin: Yes
Product Variations:
STEHNG-RD-MAR-RES-3.5: 3.5 x 3.5 Inch Door Hinge
STEHNG-RD-ST-RES-4 (This Model): 4 x 4 Inch Door Hinge
