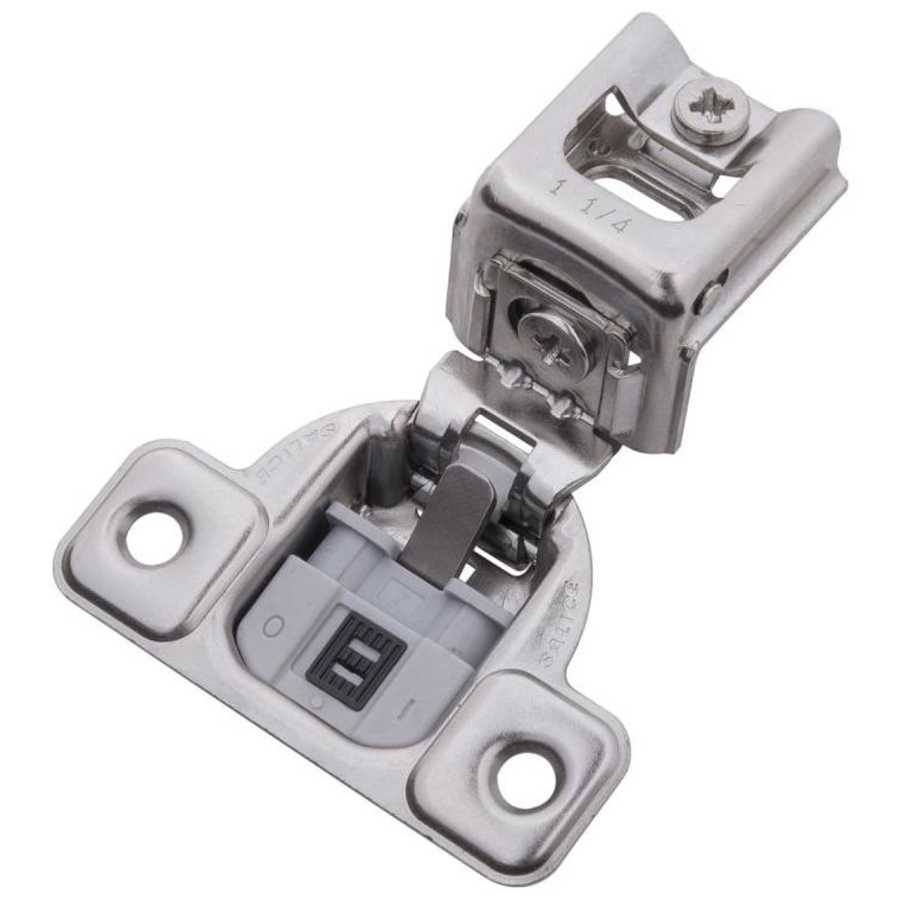

Hickory Hardware 1-1/4 Inch Overlay Screw-On Concealed European Cabinet Door Hinge with 95 Degree Opening Angle and Soft Close Function (Package of 2)

Features:

Includes two hinges in each order (Not sold individually)
Steel construction adds durability for a long lifespan
6-Way adjustability makes installation a breeze
All mounting hardware included

Product Technologies:

1-1/4 Inch Overlay: A 1-1/4″ overlay hinge is needed when the cabinet door you are mounting covers 1-1/4″ of the cabinet wall. Typically this will leave the cabinet door hanging significantly over the outside edge of the cabinet frame. 1-1/4″ overlay hinges install on the interior edge of the cabinet frame and the interior face of the door, providing full motion with complete concealment of the hardware itself when the cabinet door is closed.
Soft Close: Whether large or small, heavy or light, soft closing action keeps doors and drawers from slamming closed. It adapts to various closing speeds and features overload safety which protects the system from damage through use

Specifications:

Cup Diameter: 35 mm
Bore Distance: 2.5 mm
Hinge Mount: Full Overlay
Mount Centers: 45 mm
Opening Angle: 95°
Depth Adjustment: Yes
Vertical Adjustment: Yes
Side to Side Adjustment: Yes
Material: Steel
Quantity: 2
Cup Depth: 12 mm
