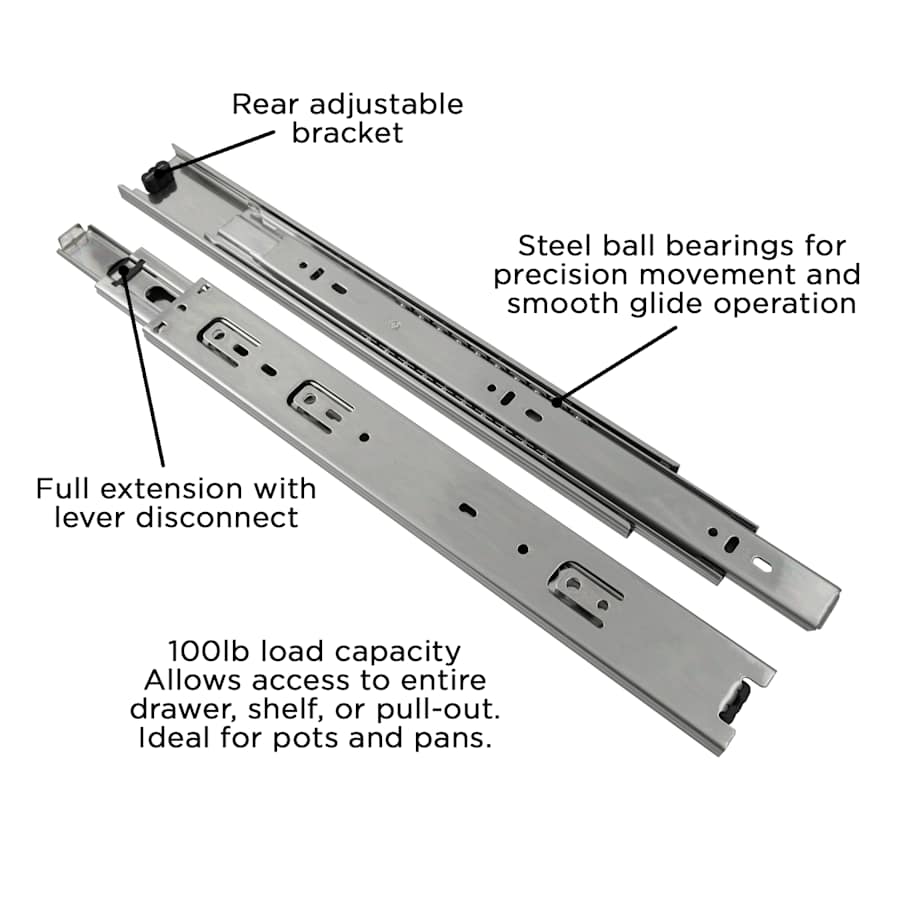

Features:
Designed to support up to 100 pounds of weight
Mounts to the center of the drawer for weight bearing stability
Provides easy access to the drawer with full extension slides
Lever disconnect allows easy removal of entire drawer system
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited 90 day manufacturer warranty

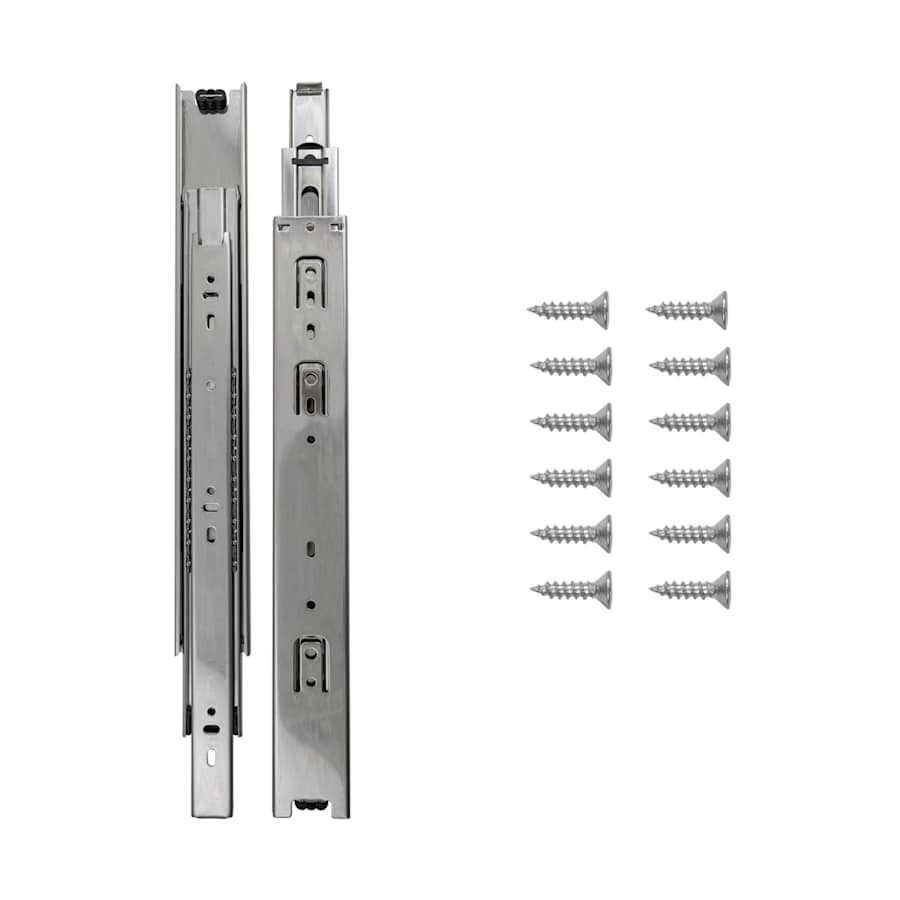

Full left/right pair including screws
Specifications:
Recommended Drawer Length: 12-1/2″
Slide Length: 12″
Extension Type: Full Extension
Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Material: Steel
Cabinet Type: Face Frame, Panel
Quantity: 2
Additional Hickory Hardware Links
View the Manufacturer Warranty
Browse all Hickory Hardware Products
Hickory Hardware 1050 Collection
Specifications

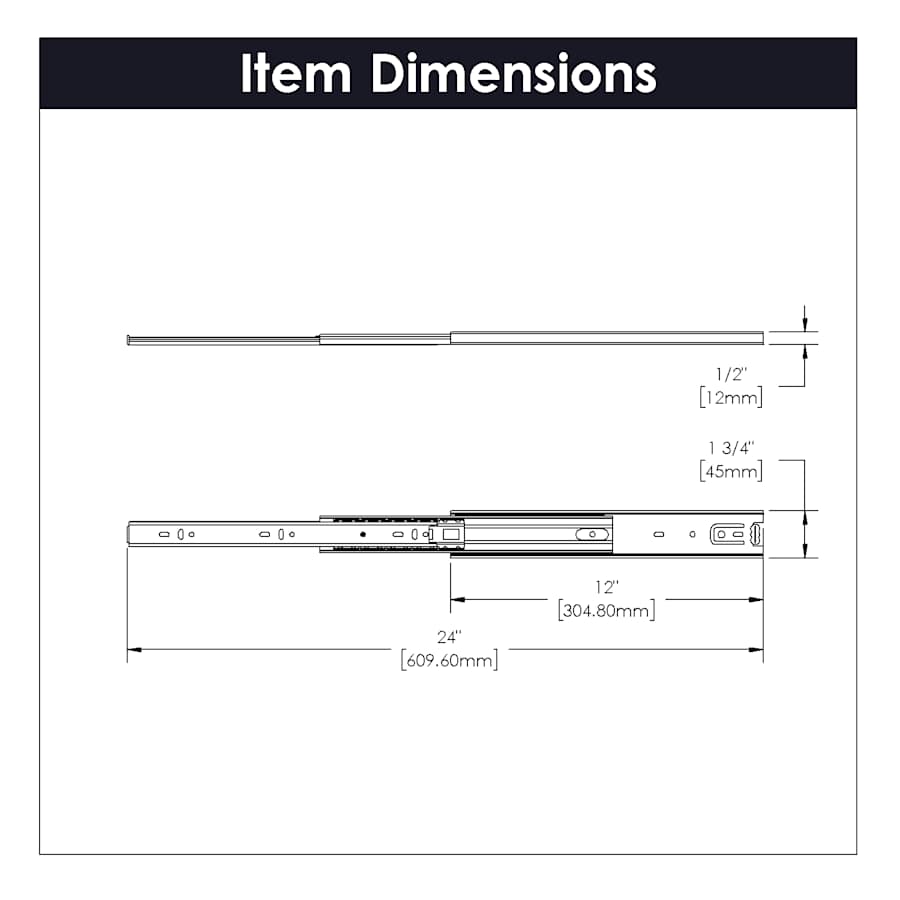

Dimensions and Measurements
| Length | 12 in. |
| Nominal Length | 12 in. |
| Quantity | 2 |
| Extension | 12 in. |
| Max Capacity (Pounds) | 100 lbs. |
| Drainboard Length | 12.5 in. |
Included Components
| Installation Hardware Included | Yes |
Characteristics and Features
| Insulation Type | Side Mount |
| Material | Steel |
| Mounting Type | Side Mount |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Self Closing | No |
| Soft Close | No |
| Adjustable | No |
| Extension Type | Full Extension |
| Push to Open | No |
| Detent | No |
| Disconnect Style | Lever |
| Slide Type | Ball Bearing |
Warranty and Product Information
| Approved for Commercial Use | No |
| Manufacturer Warranty | Limited Lifetime |
| Series | 1050 |
| Color | Cadmium |
| Color Tone | Multi-Colored |
