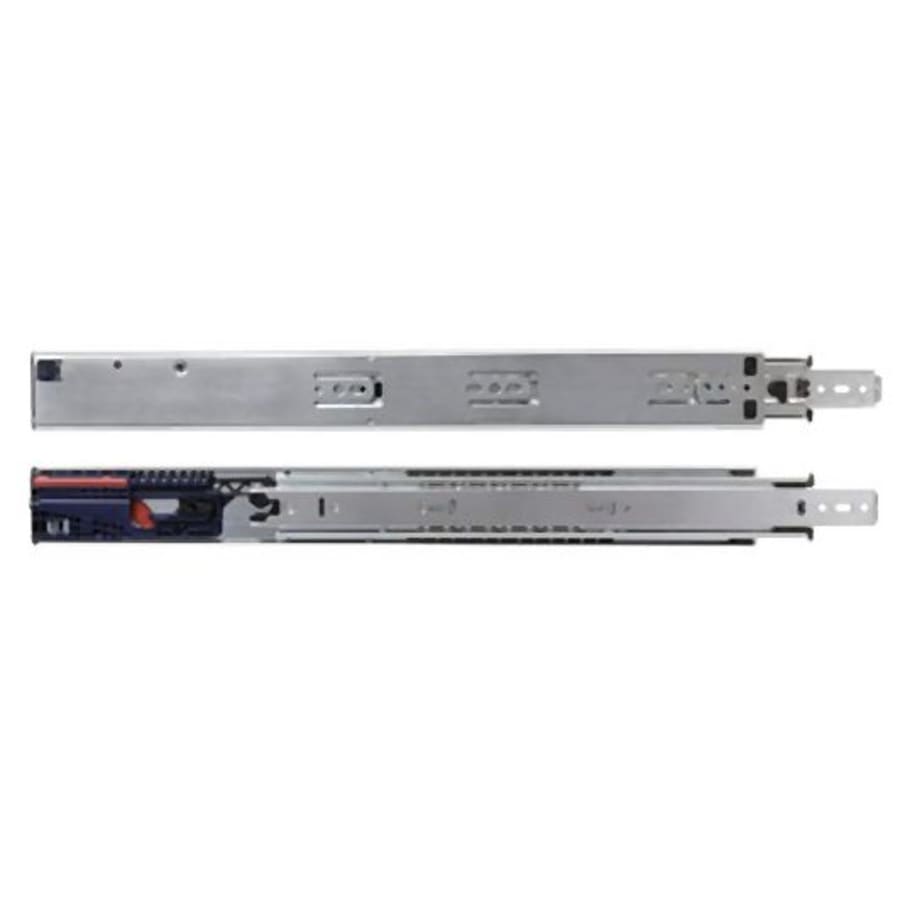

Features:
Designed to support up to 150 lbs of weight
Mounts to the side of the drawer for easy installation
Provides easy access to the drawer with full extension slides
Butterfly lever disconnect allows for easy removal of entire drawer system
Slides can be installed in either panel (frameless) or face frame cabinets
Meets the minimum requirements for BHMA Grade 1 Certification
Includes a limited lifetime manufacturer warranty
Mounting hardware is not included
Requires #7 x 1/2″ Phillips truss head screws for installation
Product Technologies:
Soft Close: Whether large or small, heavy or light, soft closing action keeps drawers from slamming closed. It adapts to various closing speeds and features overload safety to protect the system from damage over time.
Specifications:
Side Length: 21-11/16″
Nominal Length: 22″
Weight Capacity: 150 lbs.
Recommended Drawer Length: 22-1/2″
Maximum Drawer Width: 36″
Minimum Clearance: 1/2″
Quantity: 2
Additional Knape and Vogt Links
Browse all Knape and Vogt Products
Knape and Vogt 8650FM Collection
Specifications
| Extension | 22 in. |
| Height | 1.98 in. |
| Width | 0.51 in. |
| Length | 21.7 in. |
| Product Weight | 4.5 lbs. |
| Quantity | 2 |
| Max Capacity (Pounds) | 150 lbs. |
| Nominal Length | 22 in. |
| Drainboard Length | 22.5 in. |
| Maximum Drawer Width | 36 in. |
| Minimum Clearance | 0.52 in. |
| Material | Steel |
| Insulation Type | Side Mount |
| Adjustable | No |
| Extension Type | Full Extension |
| Soft Close | Yes |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Self Closing | Yes |
| Detent | No |
| Disconnect Style | Lever |
| Push to Open | No |
| Slide Type | Ball Bearing |
| Manufacturer Warranty | Limited Lifetime |
| Approved for Commercial Use | Yes |
| Series | 8650FM |
| BHMA Certification | Grade 1 |
| Color | Zinc |
| Color Tone | Multi-Colored |
