Features:
Designed to support up to 50 pounds of weight
Mounts to the bottom of the drawer

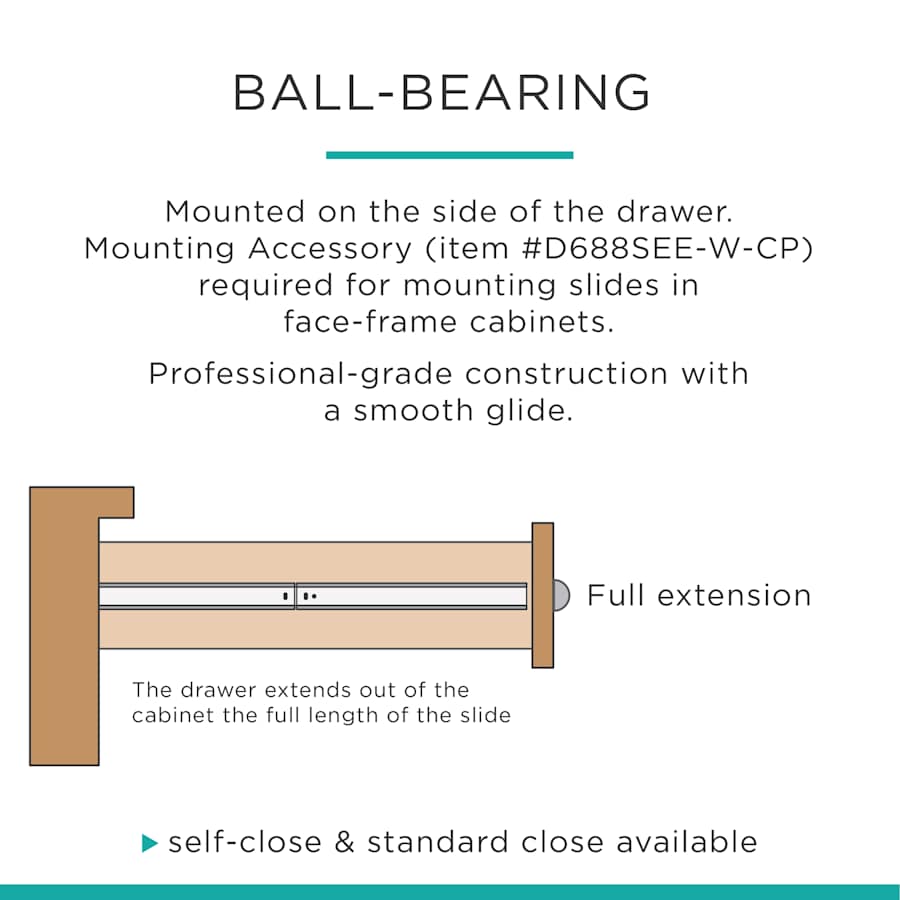

Provides easy access to the drawer with full extension slides
Rail disconnect allows easy removal of drawer

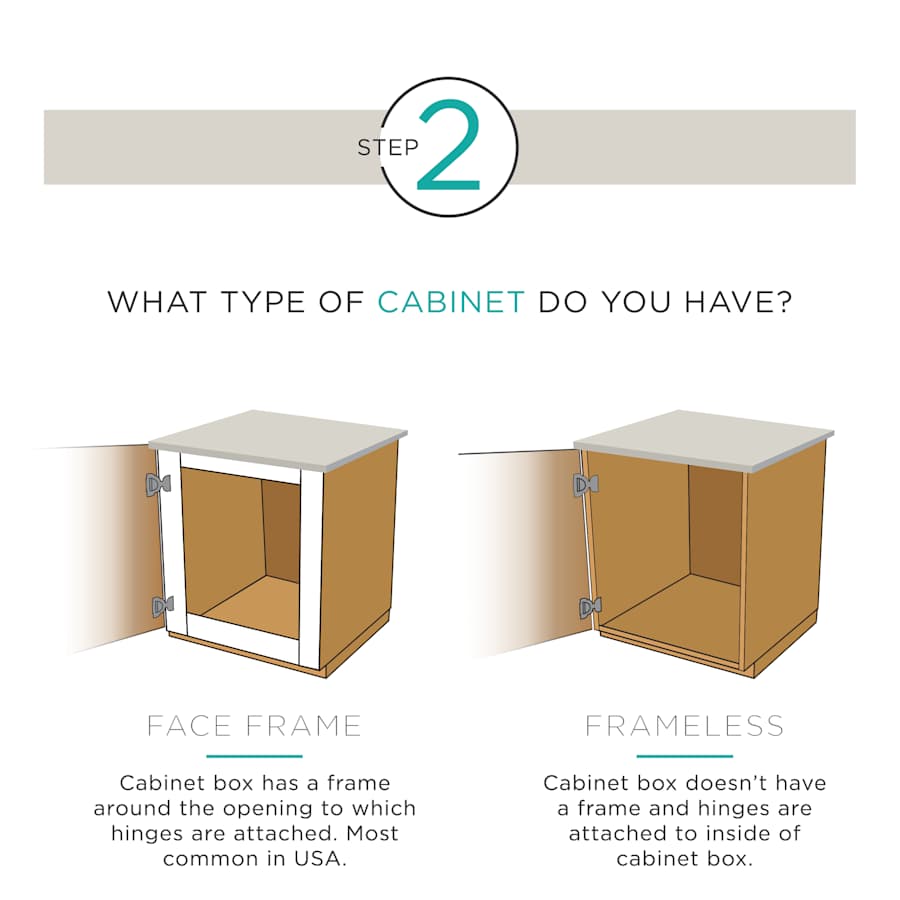

Slides can be installed in panel (frameless) cabinets
Includes a limited lifetime manufacturer warranty
Product Technologies:

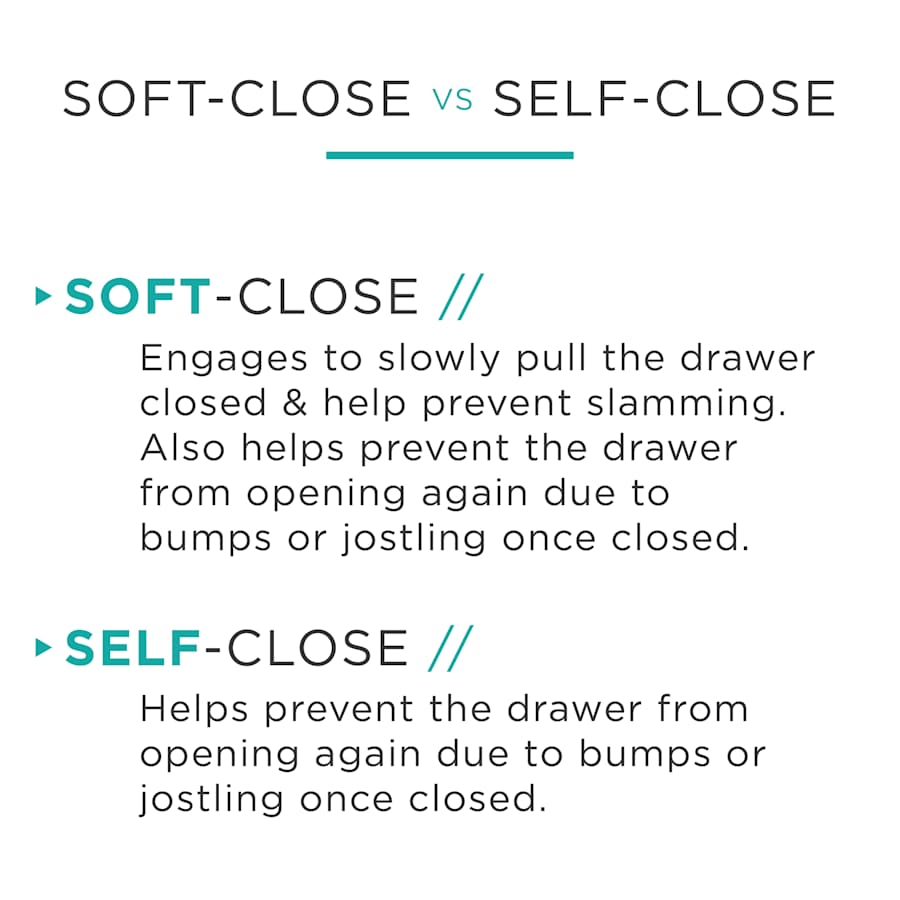

Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.
Specifications:

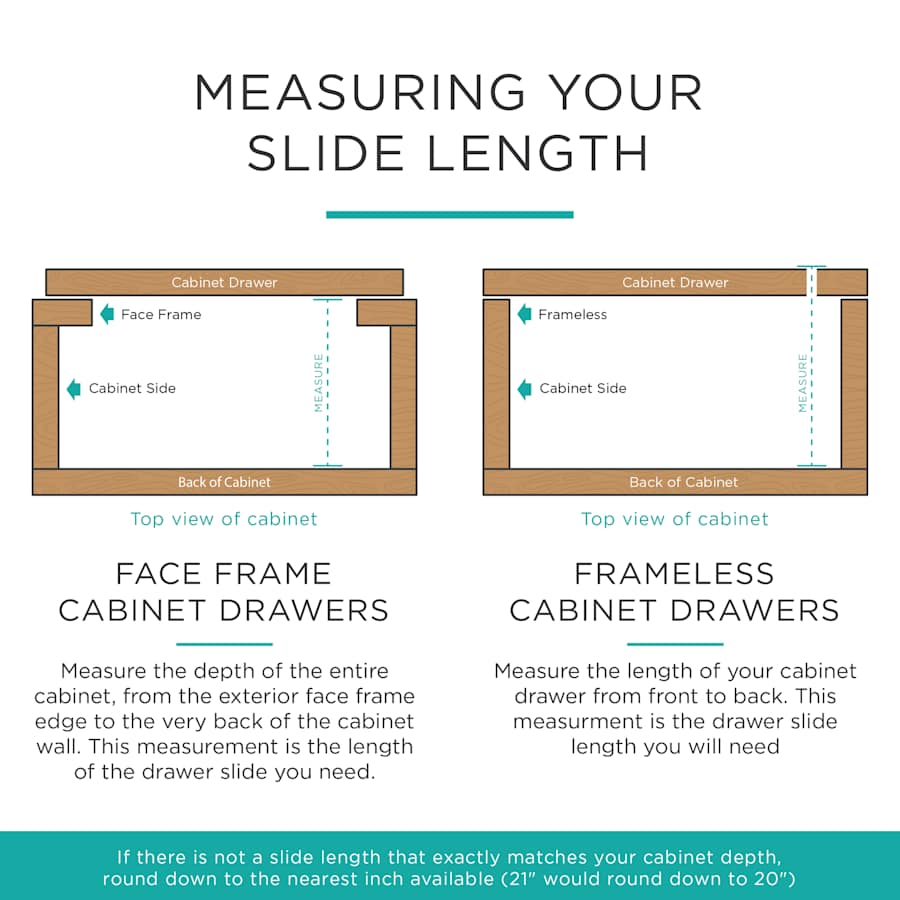

Recommended Drawer Length: 18-1/2″
Slide Length: 18″
Extension Type: Full Extension
Slide Type: Euro Slide
Weight Capacity: 50 lbs
Material: Steel
Cabinet Type: Panel
Quantity: 1
Product Variations:
D68816C-TS: 16 Inch Drawer Slide
D68818C-TS (This Model): 18 Inch Drawer Slide
D68820C-TS: 20 Inch Drawer Slide
D68822C-TS: 22 Inch Drawer Slide
Additional Liberty Hardware Links
View the Manufacturer Warranty
Browse all Liberty Hardware Products
Specifications
| Approved for Commercial Use | No |
| Collection | Liberty |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Height | 1.4375 in. |
| Width | 0.375 in. |
| Product Weight | 1.17 lbs. |
| Length | 18 in. |
| Quantity | 1 |
| Nominal Length | 18 in. |
| Extension | 18 in. |
| Max Capacity (Pounds) | 50 lbs. |
| Drainboard Length | 18.5 in. |
| Material | Steel |
| Insulation Type | Undermount |
| Mounting Type | Bottom Mount, Side Mount |
| Adjustable | No |
| Cabinet Type | Panel (Frameless) |
| Self Closing | Yes |
| Soft Close | No |
| Extension Type | Full Extension |
| Push to Open | No |
| Detent | No |
| Disconnect Style | Rail |
| Slide Type | Euro Slide |
| Installation Hardware Included | Yes |
| Color | White |
| Color Tone | Whites |
