Features:
Designed to support up to 50 pounds of weight
Mounts to the bottom of the drawer
Provides easy access to the drawer with full extension slides
Rail disconnect allows easy removal of drawer
Slides can be installed in panel (frameless) cabinets
Includes a limited lifetime manufacturer warranty
Product Technologies:

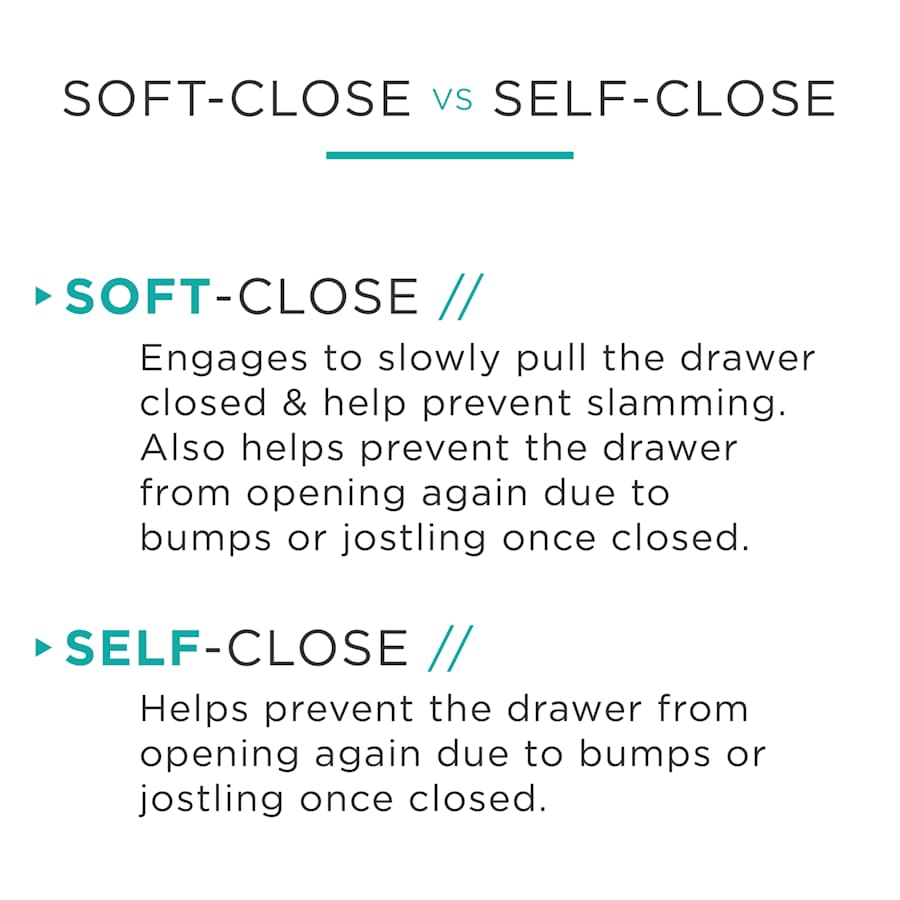

Self Closing: Gently push on the door front to engage the integrated spring mechanism. Once activated, these slides will close the drawer for you in one smooth movement.
Specifications:

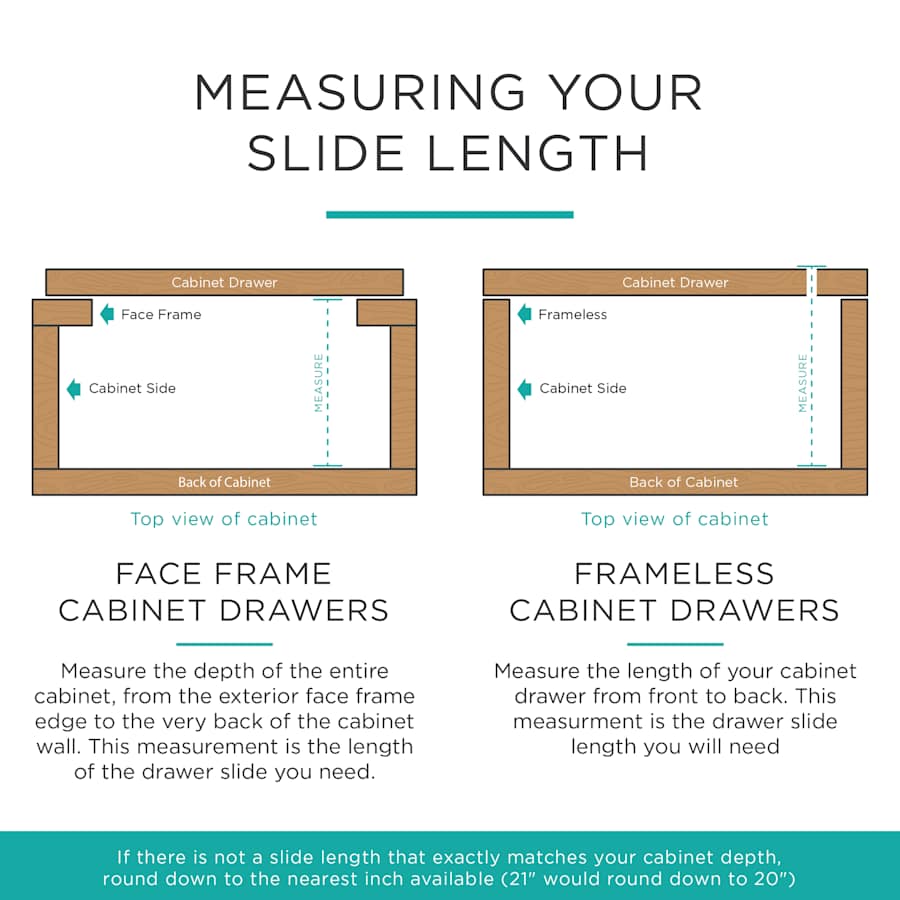

Recommended Drawer Length: 24-1/2″
Slide Length: 24″
Extension Type: Full Extension
Slide Type: Euro Slide

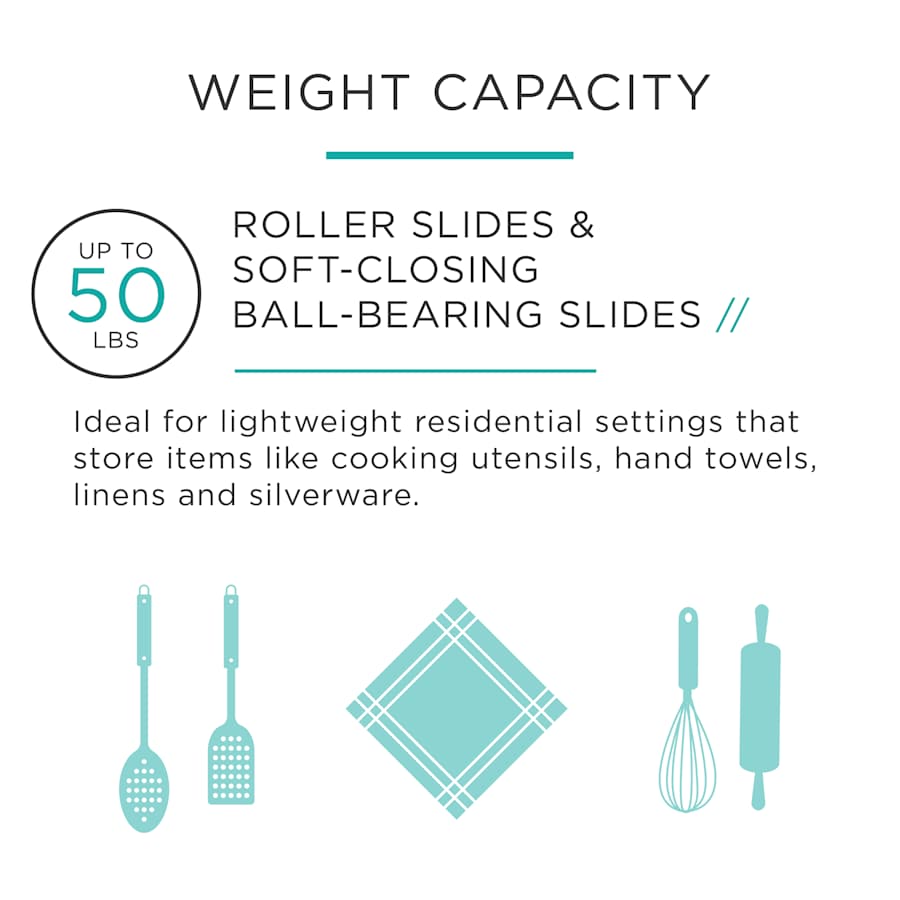

Weight Capacity: 50 lbs
Material: Steel
Cabinet Type: Panel
Quantity: 1
Product Variations:
D68812C-TX: 12 Inch Drawer Slide
D68814C-TX: 14 Inch Drawer Slide
D68824C-TX (This Model): 24 Inch Drawer Slide
Additional Liberty Hardware Links
View the Manufacturer Warranty
Browse all Liberty Hardware Products
Specifications
| Height | 1.4375 in. |
| Product Weight | 1.6 lbs. |
| Width | 0.375 in. |
| Length | 24 in. |
| Nominal Length | 24 in. |
| Extension | 24 in. |
| Quantity | 1 |
| Drainboard Length | 24.5 in. |
| Max Capacity (Pounds) | 50 lbs. |
| Material | Steel |
| Insulation Type | Undermount |
| Mounting Type | Bottom Mount, Side Mount |

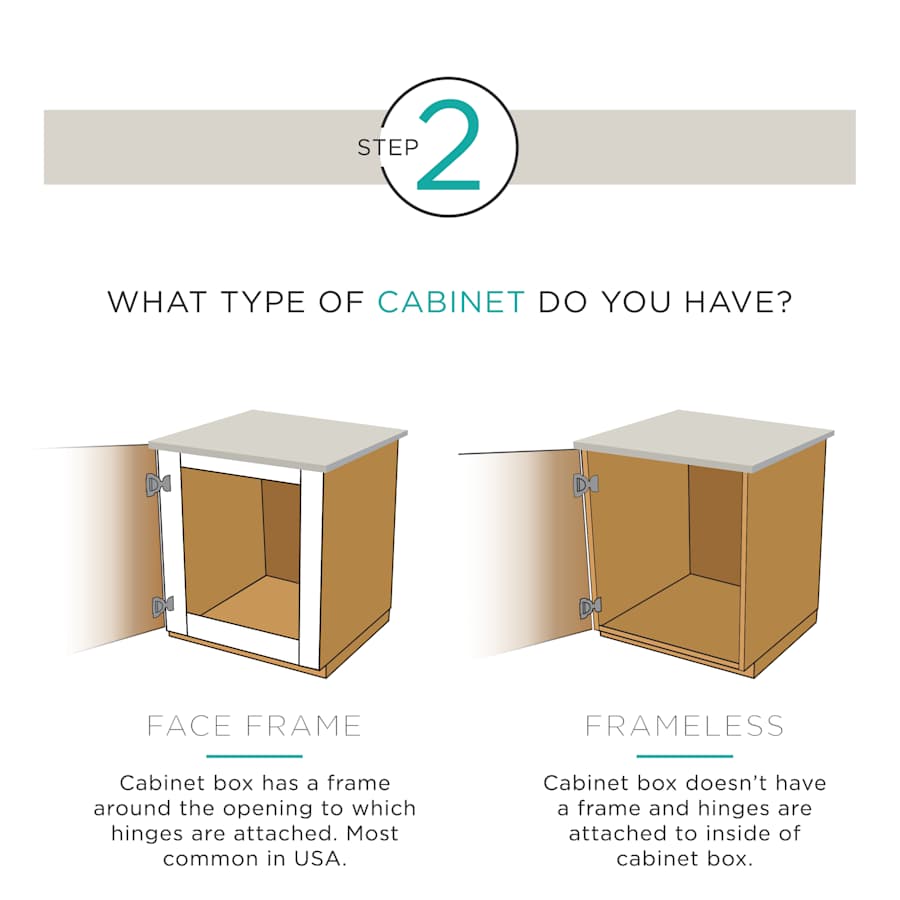

| Cabinet Type | Panel (Frameless) |
| Extension Type | Full Extension |
| Self Closing | Yes |
| Soft Close | No |
| Adjustable | No |
| Push to Open | No |
| Detent | No |
| Disconnect Style | Rail |
| Slide Type | Euro Slide |
| Approved for Commercial Use | No |
| Collection | Liberty |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Installation Hardware Included | Yes |
| Color | White |
| Color Tone | Whites |
