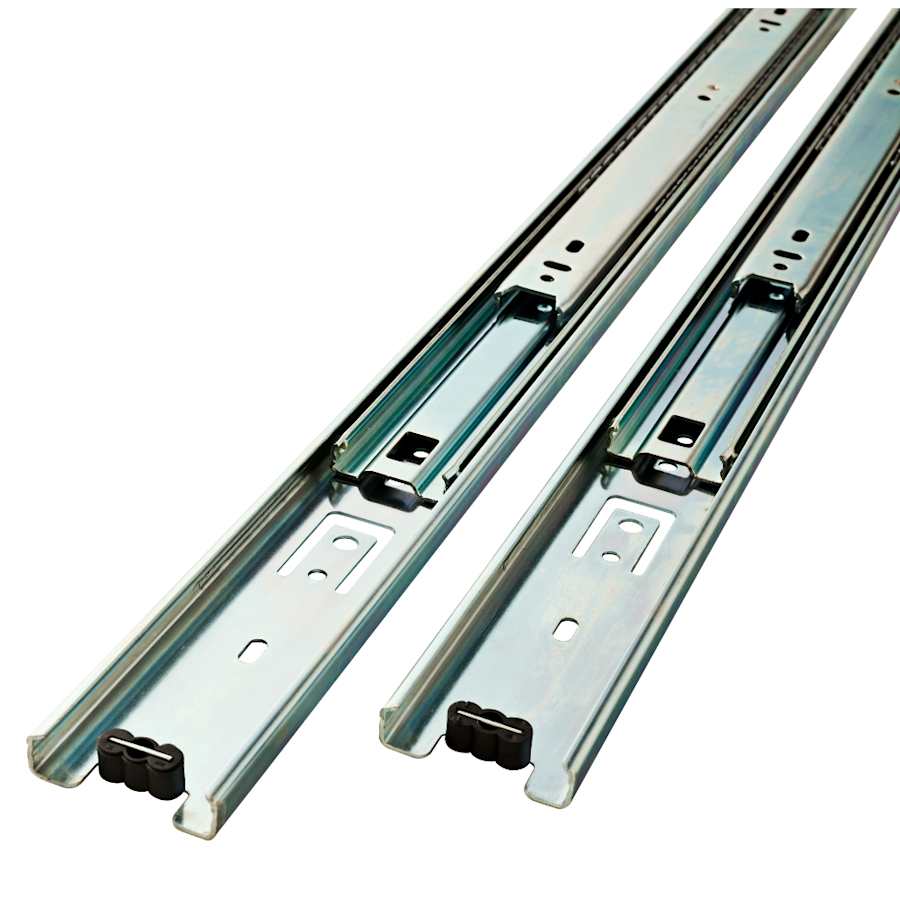

Features:
Designed to support up to 100 pounds of weight
Mounts to the side of the drawer
Provides easy access to the drawer with full extension slides
Lever disconnect allows easy removal of entire drawer system
Slides can be installed in either panel (frameless) or face frame cabinets
Includes a limited lifetime manufacturer warranty
Specifications:

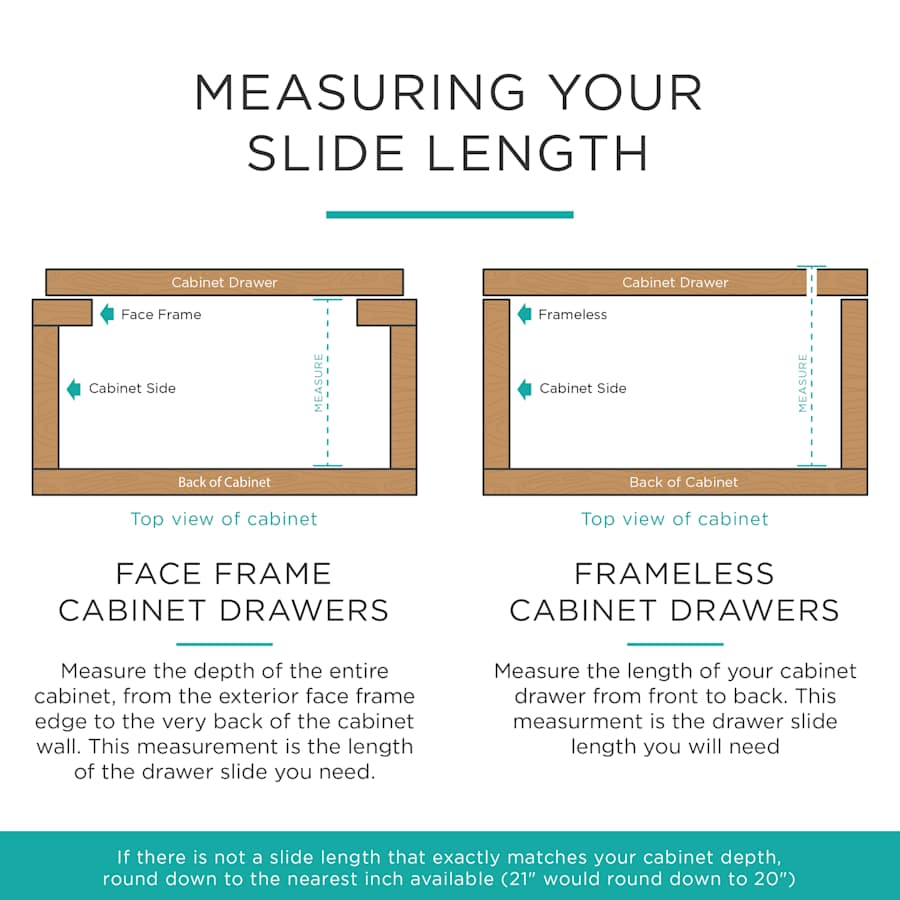

Recommended Drawer Length: 18-1/2″
Slide Length: 18″
Extension Type: Full Extension

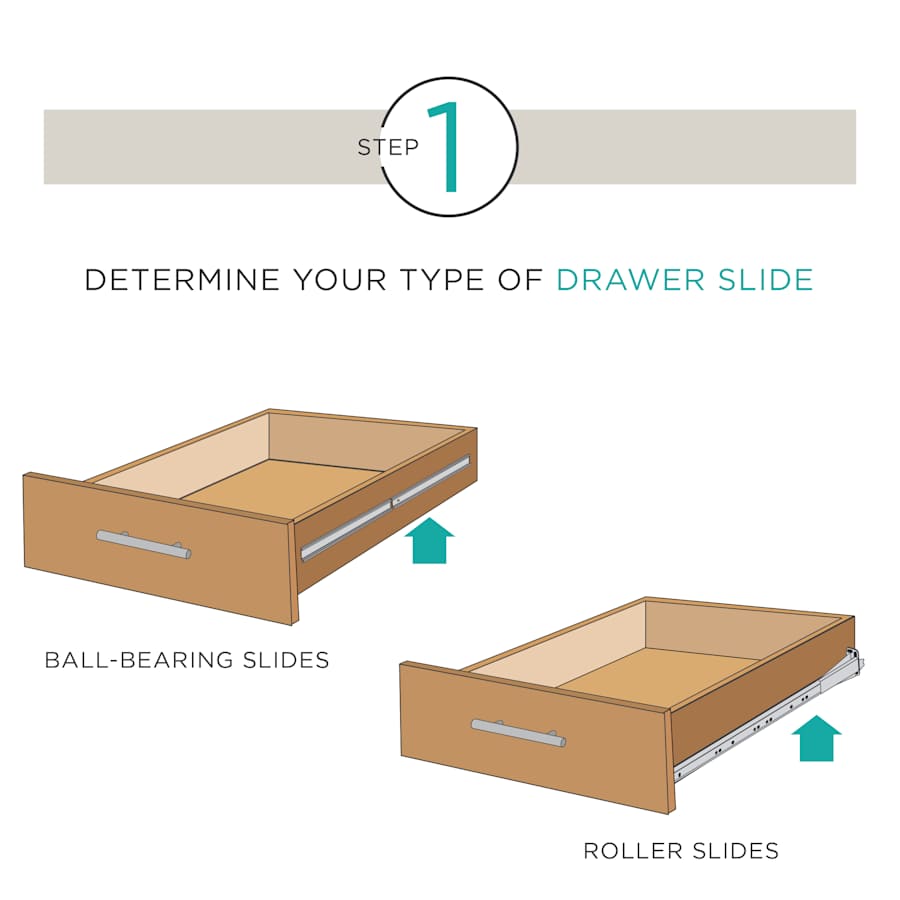

Slide Type: Ball Bearing
Weight Capacity: 100 lbs
Material: Steel

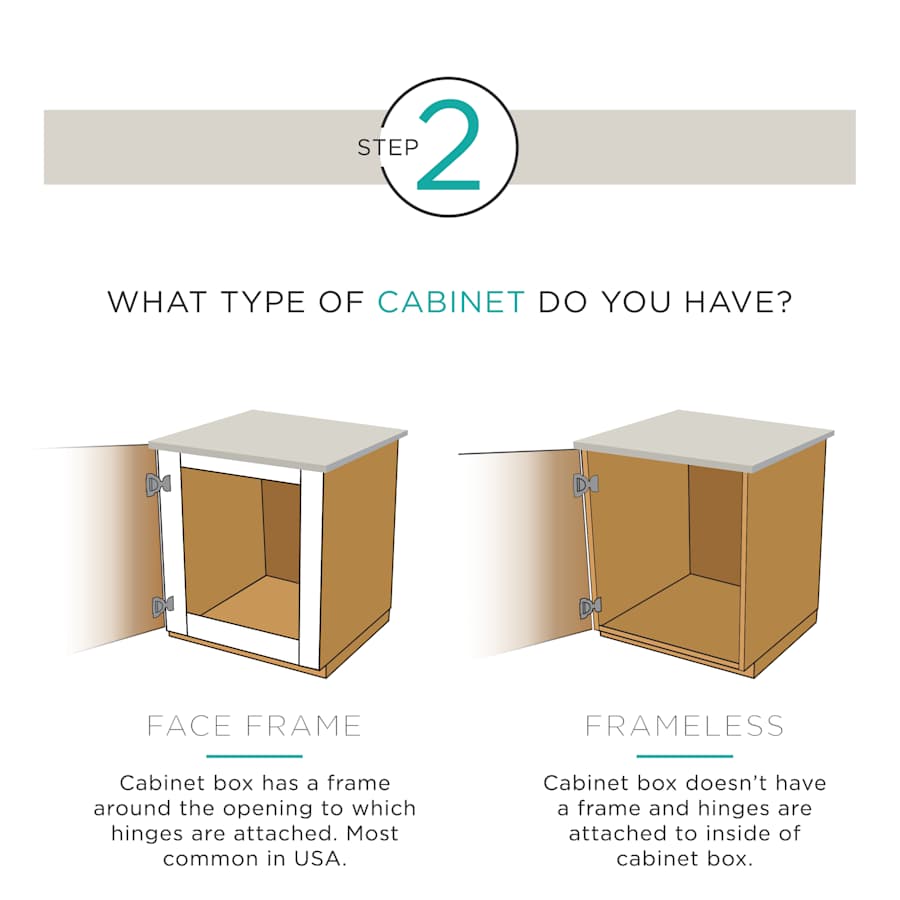

Cabinet Type: Face Frame, Panel
Quantity: 2
Product Variations:
D80614C-W: 14 Inch Drawer Slide
D80616C-W: 16 Inch Drawer Slide
D80618C-W (This Model): 18 Inch Drawer Slide
D80622C-W: 22 Inch Drawer Slide
Additional Liberty Hardware Links
View the Manufacturer Warranty
Browse all Liberty Hardware Products
Specifications
| Height | 1.8125 in. |
| Width | 0.5 in. |
| Product Weight | 3.1 lbs. |
| Length | 18 in. |
| Quantity | 2 |
| Nominal Length | 18 in. |
| Extension | 18 in. |
| Max Capacity (Pounds) | 100 lbs. |
| Drainboard Length | 18.5 in. |
| Installation Hardware Included | Yes |
| Material | Steel |
| Insulation Type | Side Mount |
| Mounting Type | Side Mount |
| Cabinet Type | Face Frame, Panel (Frameless) |
| Self Closing | No |
| Soft Close | No |
| Adjustable | No |
| Push to Open | No |
| Extension Type | Full Extension |
| Detent | No |
| Disconnect Style | Lever |
| Slide Type | Ball Bearing |
| Approved for Commercial Use | No |
| Collection | Liberty |
| Country Of Origin | China |
| Manufacturer Warranty | Limited Lifetime |
| Color | Zinc Plated |
| Color Tone | Multi-Colored |
