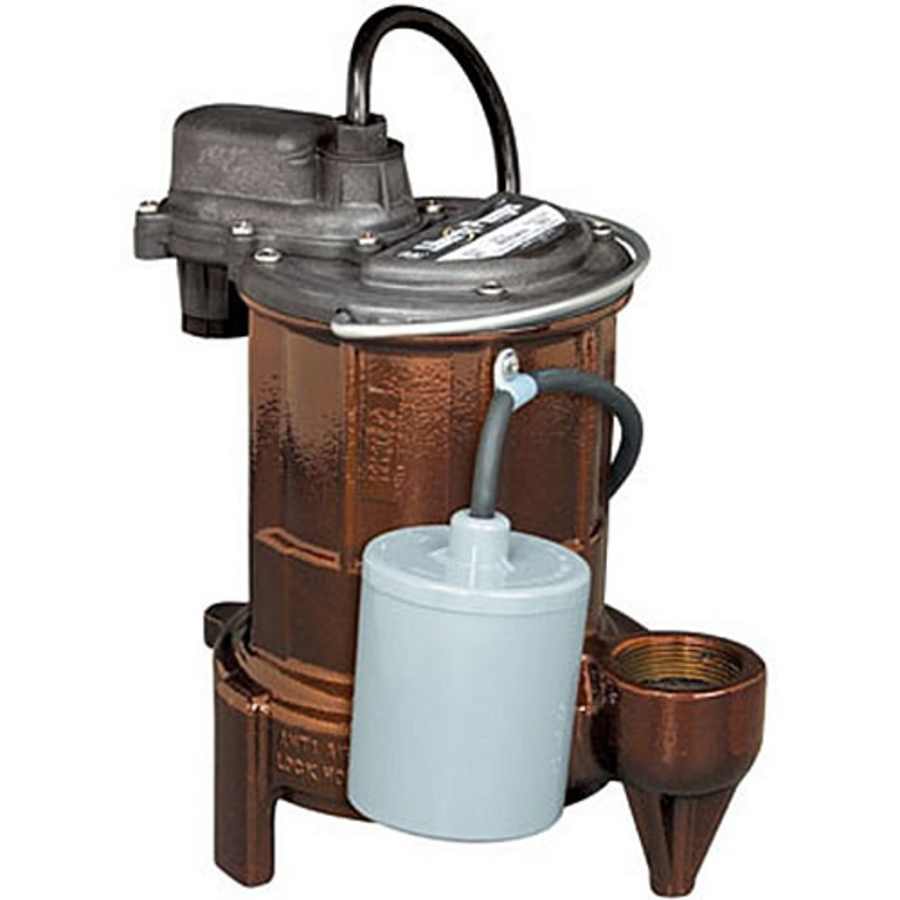

Automatic Submersible Cast Iron Sump Pump
A “workhorse” designed for years of reliable operation
Quick-Disconnect 25′ Standard Power Cord
Great for outdoor applications when an outlet is farther away
Liberty’s UNI-BODY Casting with Epoxy Coated Powder Coat Finish
A solid, one-piece housing that eliminates lower motor seal
Quick-Disconnect Wide Angle Tether Float Switch (Non-Piggyback)
Provides automatic operation in sump pits as small as 14-inches
Rugged, Energy Efficient and Thermally Protected 1/3 HP Motor
Hermetically sealed, permanently lubricated design
High-Temperature, Engineered Polymer Impeller
Vortex style design for superior solid handling
High Capacity 1-1/2″ Discharge
Will replace most pumps without any plumbing changes
Non-Corrosive Stainless Steel Fasteners
Increases the lifespan of the pump even in the harshest sump pits
416 Stainless Steel Rotor Shaft
With permanently lubricated bearings for extended pump life
3-Year Limited Warranty
Additional Liberty Pumps Links
View the Manufacturer Warranty
Browse all Liberty Pumps Products
Specifications
| Height | 10.7 in. |
| Width | 6.5 in. |
| Length | 9.5 in. |
| Cord Length | 20 in. |
| Discharge Diameter | 1.5 in. |
| Flow Rate by Feet of Head | 2250 gal / 10 ft, 720 gal / 20 ft, 2700 gal / 5 ft, 3000 gal / 0 ft, 1560 gal / 15 ft |
| Maximum Diameter Solids | 0.5 in. |
| Min Float Off | 4 in. |
| Min Float On | 10 in. |
| Manufacturer Warranty | 3 Year Residential |
| Submersible | Yes |
| Automatic | No |
| Flush Type | Tether Switch |
| Housing Material | Cast Iron |
| Solid Handling | 1/2 Inch |
| Built-In Check Valve | No |
