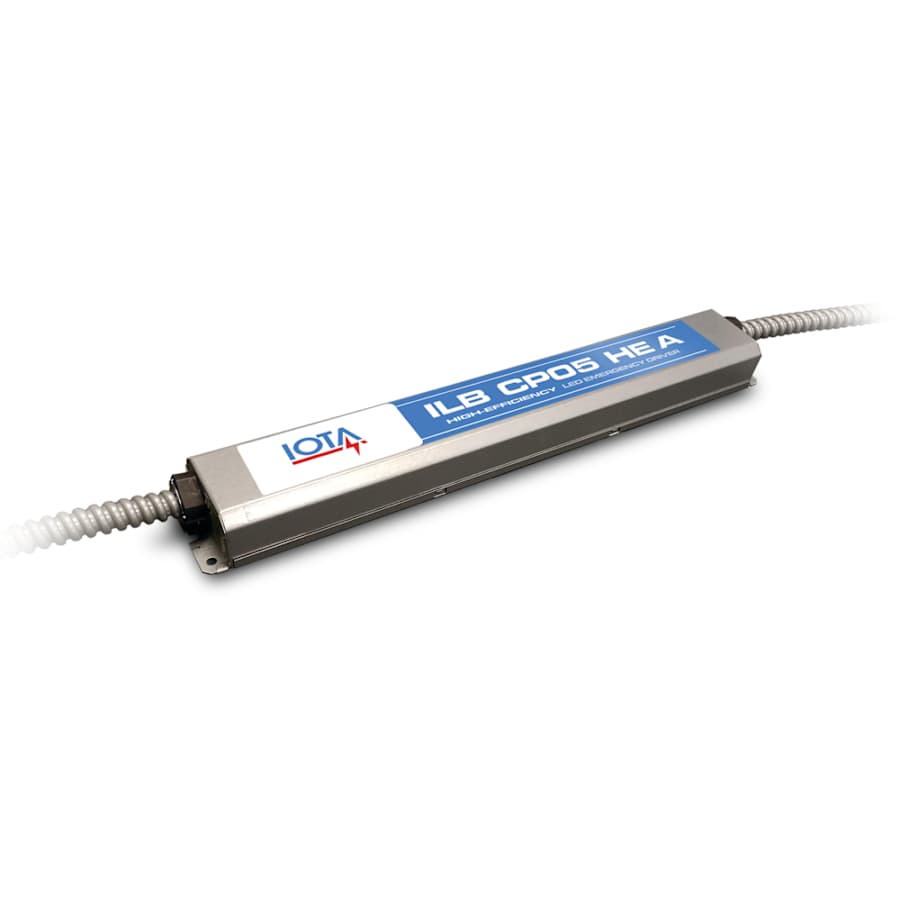

The IOTA ILB CP05 HE A constant power emergency LED driver enables the existing LED fixture to deliver emergency illumination for 90 minutes in the event of a loss of normal power. The ILB CP05 HE A delivers 5 watts of constant power while in the emergency mode, resulting in no degradation of the emergency lighting for the entire runtime. The ILB CP05 HE A wires in conjunction with existing AC driver and LED array and features a forward voltage range of 10-60VDC to ensure compatibility with almost any Class 2 LED luminaire. IOTA Constant Power Emergency LED Drivers allow commercial spaces to use their existing fixtures to deliver code-required emergency egress illumination, eliminating the need for additional/unwanted wall-mounted emergency lighting units. IOTA’s patented constant power design makes it easy to determine actual emergency lumen levels – simply multiply the emergency driver’s output wattage by your fixture’s ‘efficacy’ (ie. lumens per watt.) Additionally, the auto-sensing 10-60VDC forward voltage of the IOTA emergency driver automatically detects the needed voltage required by your fixture’s Class 2 (0-60VDC) LED component to provide confident system compatibility. Universal 120-277VAC input. The galvanized steel construction with wiring enclosed in dual 24 in. flexible conduit is suitable for plenum, non-air handling ceilings. Includes single-piece test switch/charge indicator accessory. UL Listed for factory or field installation, Certified to CA Title 20 and registered in the California Modernized Appliance Efficiency Database (MAEDBS) as a small battery charger.
Features:
Wide luminaire compatibility with universal input and auto-sense Class 2 output
Constant Wattage output delivers predictable, steady emergency lumens based on your fixture’s rated efficacy (example: 500 lumens for a 100 lm/w fixture.)
Works in conjunction with switched or unswitched fixtures
90 minute emergency run time
120-277VAC Input, 10-60VDC output, can be installed on top or adjacent to the fixture’s channel space or junction box
Dimensions:
Width: 2.2″
Height: 1.38″
Depth: 14.95″
Product Weight:3
Specifications:
Voltage: 120
Additional Lithonia Lighting Links
View the Manufacturer Warranty
Browse all Lithonia Lighting Products
Specifications
| Material | Steel |
| Dimmable | No |
| Collection | ILB CP05 |
| Manufacturer Warranty | 5 Year Limited |
| Country Of Origin | China |
| Location Rating | Wet Location |
| Energy Star | No |
| Height | 1.38 in. |
| Depth | 14.95 in. |
| Width | 2.2 in. |
| Product Weight | 3 lbs. |
| Voltage | 120 |
| Color | Gray |
| Color Tone | Greys |
