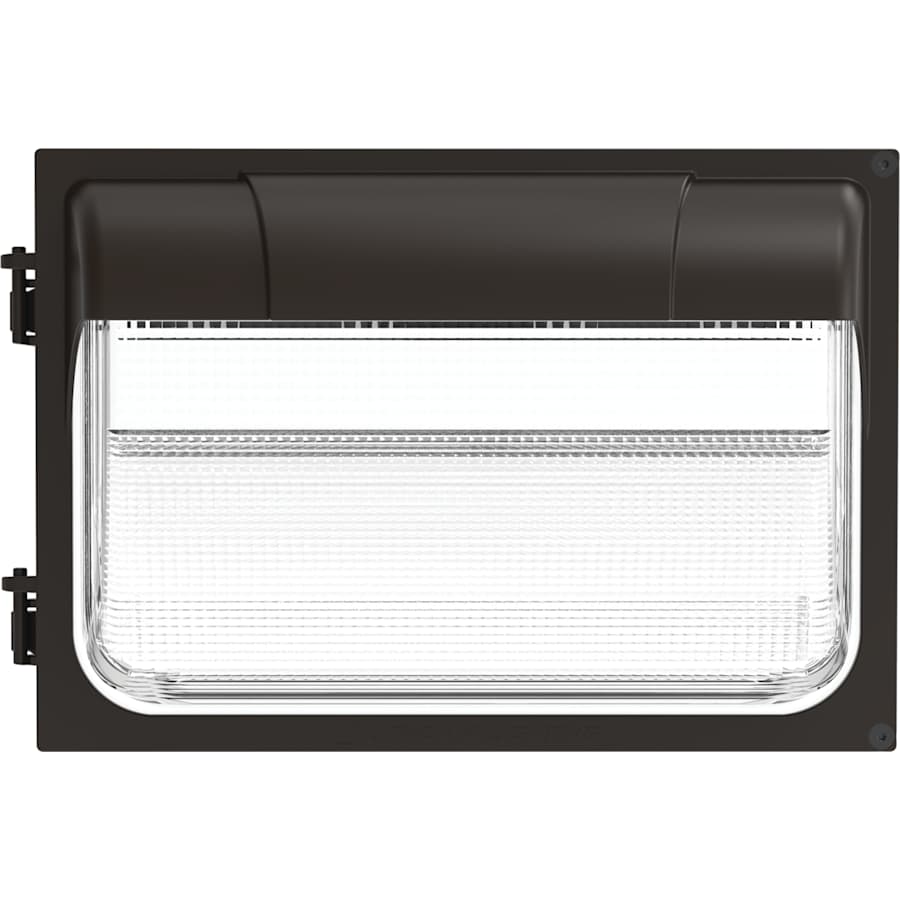

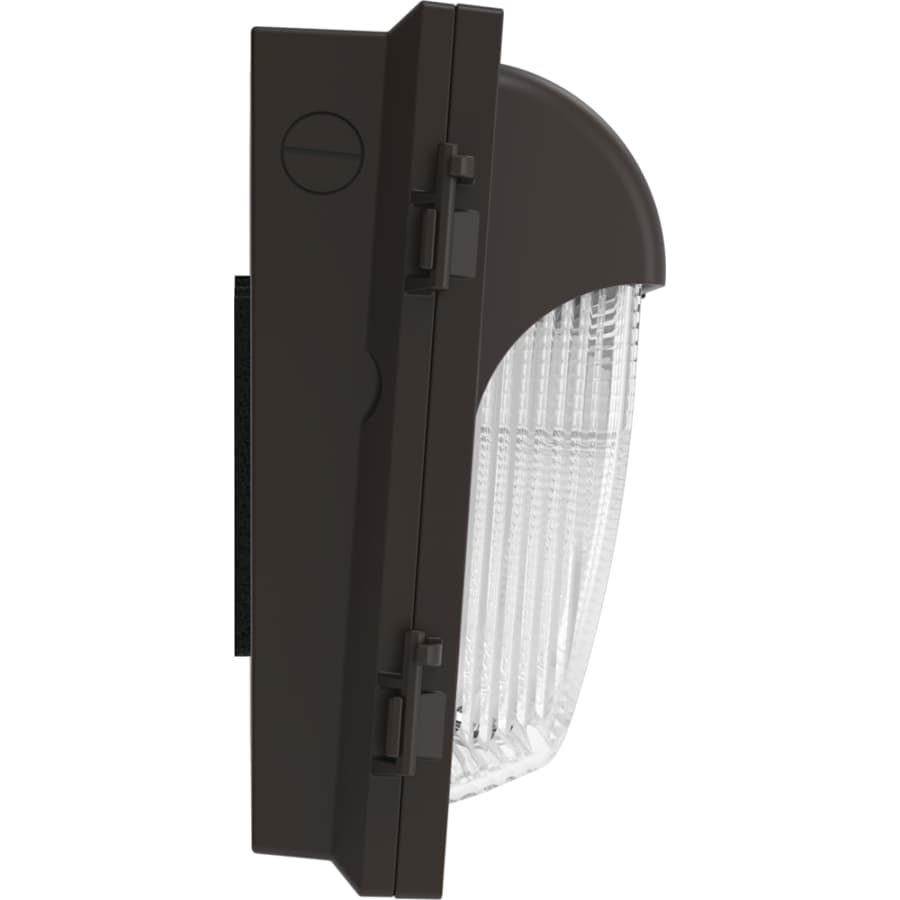

TWX LED wall pack family, a ground-up design that has the low initial cost customers demand while providing superior performance and a traditional form. The TWX2 LED is energy efficient saving up to 82% in energy costs when replacing a metal halide luminaire. The Adjustable Light Output (ALO) feature allows the contractor to set the light output during installation, to a level perfectly suited for the job site. The TWX2 LED ALO luminaires can replace anything from a 70W to 250W metal halide luminaire.
Features:
Adjustable light output maximizes flexibility in the field
The TWX2 LED is energy efficient saving up to 82% in energy costs when replacing a metal halide luminaire
Hardwired on/off capability only
CSA certified to US and Canadian standards, listed as a DesignLights Consortium (DLC) qualified product and IP65 rated for outdoor applications
MVOLT driver operates on any line voltage from 120-277V (50/60Hz) and can be mounted directly over a standard electrical junction box or back wiring can be connected and stored in the internal compartment
Light engine(s) configurations consist of high-efficacy LEDs where the advanced optical design uses both reflector and refractor technologies that work together to create superior illumination and further throw, getting the light where it is needed
Exterior painted parts are protected by a zinc-infused Super Durable TGIC thermoset powder coat finish providing superior resistance to corrosion and weathering withstanding extreme climate changes without cracking or peeling
Five-year limited warranty
Dimensions:
Width:13
Height:9
Product Weight:11
Specifications:
Wattage:54
Lumens:6850
Color Temperature: 4000K
Color Rendering Index: 70 CRI
Additional Lithonia Lighting Links
View the Manufacturer Warranty
Browse all Lithonia Lighting Products
Specifications
| Material | Aluminum |
| Bulb Base | Integrated LED |
| Bulb Visible | Yes |
| LED | Yes |
| Light Direction | Ambient Lighting |
| Number of Light Source(s) | 1 |
| Shade Color | Clear |
| Shell Material | Glass |
| Bubbler Type | LED |
| Color Temperature | 4000K |
| Dimmable | No |
| Photocell | No |
| Vapor Tight | Yes |
| Collection | Contractor Select TWX |
| Manufacturer Warranty | 5 Year Limited |
| Country Of Origin | Mexico |
| Location Rating | Wet Location |
| Dark Sky | No |
| Height | 9 in. |
| Width | 13 in. |
| Product Weight | 11 lbs. |
| Nominal Height | 9 in. |
| Nominal Width | 13 in. |
| Extension | 4.5 in. |
| Bulb Included | Yes |
| Shade | Yes |
| Motion Sensor | No |
| Voltage | 120 |
| Wattage | 54 |
| Power Source | Hardwired |
| Lumens | 6850 |
| Color Rendering Index (CRI) | 70 |
| Color | Textured Dark Bronze |
| Color Tone | Brass Tones |
