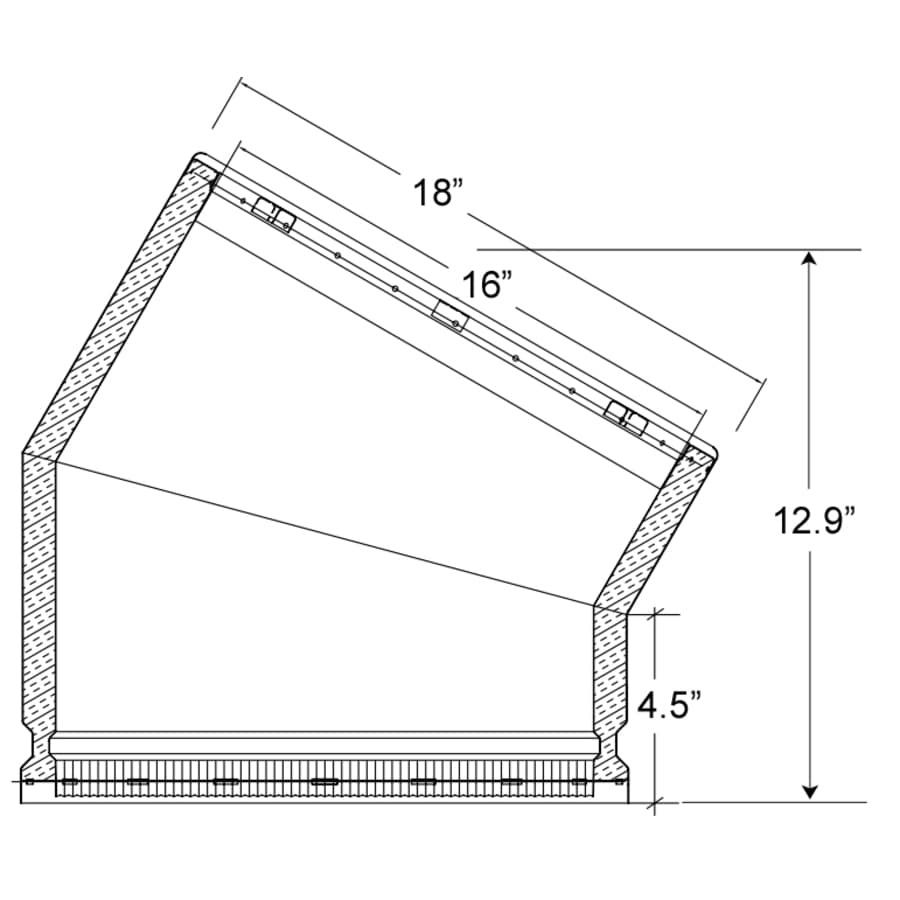

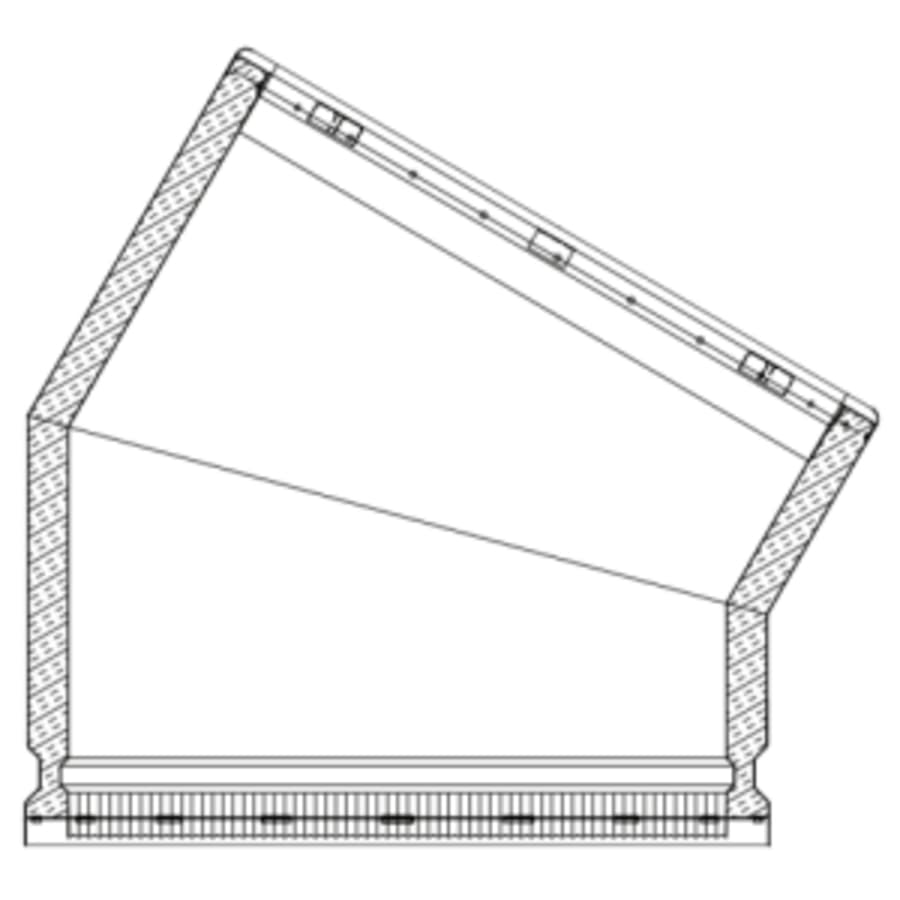

When creating an offset in the chimney pipe system, calculate the offset to determine the elbow angle. This 30° elbow length creates a bend. When used with a corresponding 30° elbow, the system will continue vertically toward the ceiling with the appropriate offset.
Galva-Temp is designed for all-fuel applications and comes with a galvanized steel outer casing. Galva-Temp chimney pipe is insulated with 1″ solid pack and UL Listed to UL-103 standards. With stainless steel inner pipe, 1-inch premium insulation, durable galvanized steel outer pipe, this is “the coolest under the hottest conditions”.
Features:
Stainless steel inner and galvanized outer pipe
Clearance of 2″ to combustibles
Allowable Flue Gas Temperatures:
Maximum Continuous: 1,000 Degrees Fahrenheit / 540 Degrees Celsius
Brief Forced Firing: 1,400 Degrees Fahrenheit / 760 Degrees Celsius (60 min.)
Creosote Burn Out: 1700 Degrees Fahrenheit / 930 Degrees Celsius (3 x 10 min.)
UL Listed at UL-103
Lifetime Limited Warranty
Specifications:
Fuel Type: Coal, Oil, Wood
Material: Galvanized Steel
Pipe Inside Diameter: 16″
Vent Construction: Double Wall
Pipe Shape: Round
Outside Diameter: 18″
Elbow by Angle: 30 (degree)
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest 16 Inch Galva-Temp Collection
