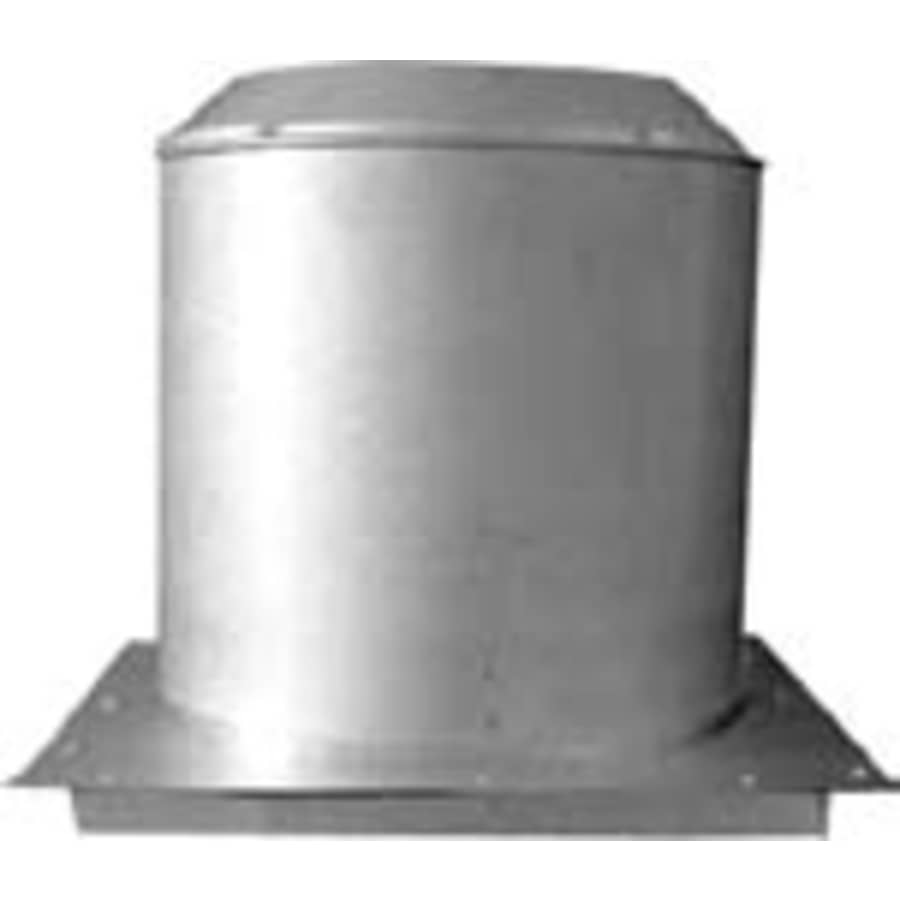

10″ Direct Vent Attic Insulation Shield from Direct-Temp
The attic insulation shield is required to guard against the hazard of blown in or blanket insulation occupying the required 2” airspace around the vent.
Direct-Temp system features stainless steel inner and heavy duty galvanized steel outer walls. Heavy duty centering brackets keep inner pipe centered and chamfered edges allow for easy slide-together assembly. The free-floating inner liner allows the pipe to expand and contract under high temperature, without creating gaps or stress points. The LockTab(r) is a unique design that allows for 360° rotation while securely locking the sections of pipe together with just a push of the tab.
Features:
Siliconozed fiberglass seal
LockTab security
Pipe rotates easily to align system components
No sealant required
10.75″ x 10.75″ Base
6.75″ Inner and 8.75″ Outer Diameter
10″ Length
High efficiency performance
Connection Specifications:
Joint/Connection Overlap: 1-5/8″
Joint/Connection Type: Twist-Lock standard on all diameters
Material Specifications:
Outer Wall: Heavy duty galvanized steel
Inner Wall: 304 Stainless Steel
Additional Metalbest Links
View the Manufacturer Warranty
Metalbest Direct-Temp Collection
Specifications
| Height | 10 in. |
| Pipe Inside Diameter | 4 in. |
| Bar Length | 10.75 in. |
| Base Width | 10.75 in. |
| Outside Diameter | 8.75 in. |
| Inside Diameter | 6.75 in. |
| Material | Galvanized Steel, Stainless Steel |
| Configuration | Shield |
| Pipe Class | Direct Vent |
| Pipe Shape | Round |
| Vent Construction | Double Wall |
| Approved for Commercial Use | No |
| Collection | Direct-Temp |
| Manufacturer Warranty | Limited Lifetime |
| Certifications | UL |
| Fuel Type | Gas |
| Color | Galvanized |
| Color Tone | Multi-Colored |
