Features

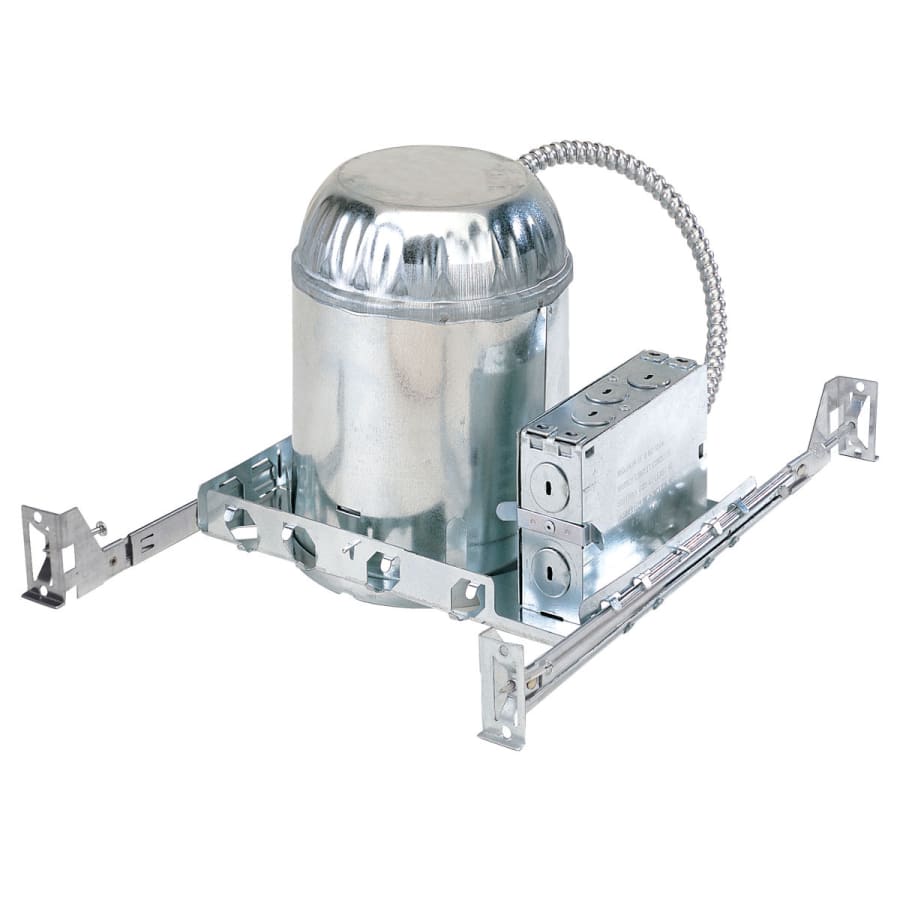

Includes two adjustable bar hangers with captive nails, alignment foot, and T-Bar slot to allow for easy installation
Comes with 277V step-down transformer – converts 277V input to 120V
Galvanized steel frame with (7) 1/2″ knockouts, (4) Romex® pryouts, and snap on covers
(4-in,4-out) Branch circuit wiring with ground wire and quick connectors on all #18AWG lead wires
Quick connect provided
Designed for commercial or residential use
Housing is IC-rated and airtight
Steel construction housing
Capable of being dimmed
UL and CUL rated for wet locations
Energy star certified
California Title 24 energy compliant
Dimensions
Height: 9″
Width: 17″
Depth: 14″
Product Weight: 4.0 lbs
Cutout Size: 5.625″
Electrical Specifications
Wattage: 17 watts
Voltage: 277 volts
Additional Nora Lighting Links
Browse all Nora Lighting Products
Specifications
| Height | 9 in. |
| Width | 17 in. |
| Depth | 14 in. |
| Product Weight | 4 lbs. |
| Trim Size | 5 in. |
| Cutout Size | 5.625 in. |
| Power Source | Hardwired |
| Wattage | 16.6 |
| Voltage | 277 |
| Voltage Type | Commercial Voltage (125V+) |
| Bulb Included | No |
| Material | Aluminum |
| Dimmable | Yes |
| Airtight | Yes |
| Housing Type | New Construction Housing |
| Certifications | UL |
| Location Rating | Wet Location |
| Country Of Origin | USA |
| Title 24 | Yes |
| Approved for Commercial Use | Yes |
| Made in America | Yes |
| Energy Star | Yes |
| IC Rating | IC |
| Color | Aluminum |
| Color Tone | Multi-Colored |
