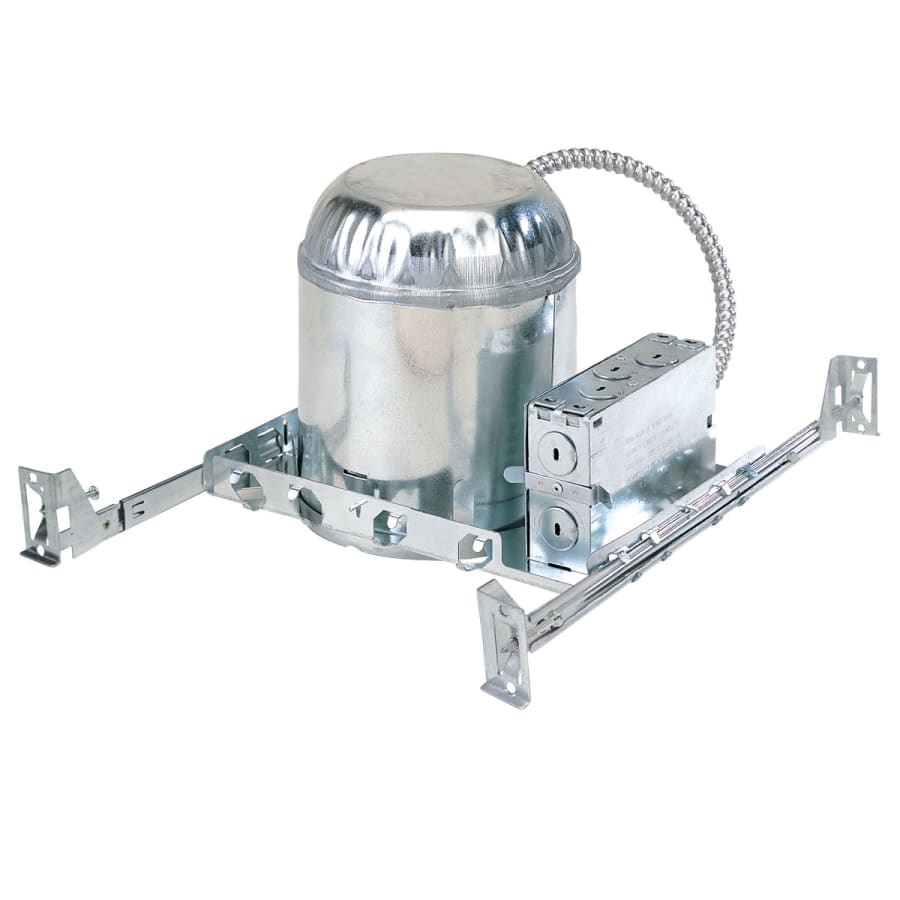

Designed for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with LED retrofit luminaires
Features
IC Air-Tight energy saving by reducing the flow of air through the ceiling
Rated for direct contact with insulation
cULus listed for damp location and through branch circuit wiring
24-1/2” Bar hangers with captive nails and alignment foot
Insulated ceiling rated and airtight
Requires (1) 16 watt LED bulb
Capable of being dimmed with compatible dimmable bulbs (not included)
CUL rated for damp locations
Covered under a 1 Year Limited manufacturer warranty
Dimensions
Trim Size: 6″
Height: 7-1/2″
Width: 8-3/4″
Depth: 6-1/2″
Product Weight: 2 lbs
Cutout Size: 6-3/8″
Electrical Specifications
Number of Bulbs: 1
Max Watts Per Bulb: 16 watts
Bulb Type: LED
Bulb Included: No
Additional Nora Lighting Links
Browse all Nora Lighting Products
Specifications
| Depth | 6.5 in. |
| Height | 7.5 in. |
| Product Weight | 2 lbs. |
| Width | 8.75 in. |
| Cutout Size | 6.375 in. |
| Trim Size | 6 in. |
| Material | Aluminum |
| Dimmable | Yes |
| Number of Bulbs | 1 |
| Sloped Ceiling Compatible | No |
| Bubbler Type | LED |
| LED | Yes |
| Airtight | Yes |
| Housing Type | New Construction Housing |
| Shallow Ceiling Compatible | No |
| Country Of Origin | China |
| Made in America | Yes |
| Manufacturer Warranty | 1 Year Limited |
| Certifications | UL |
| Location Rating | Damp Location |
| Title 24 | Yes |
| Fire Rated | No |
| Energy Star | No |
| IC Rating | IC |
| Bulb Included | No |
| Voltage | 120, 277 |
| Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
| Wattage | 16 |
| Watts Per Bulb | 16 |
