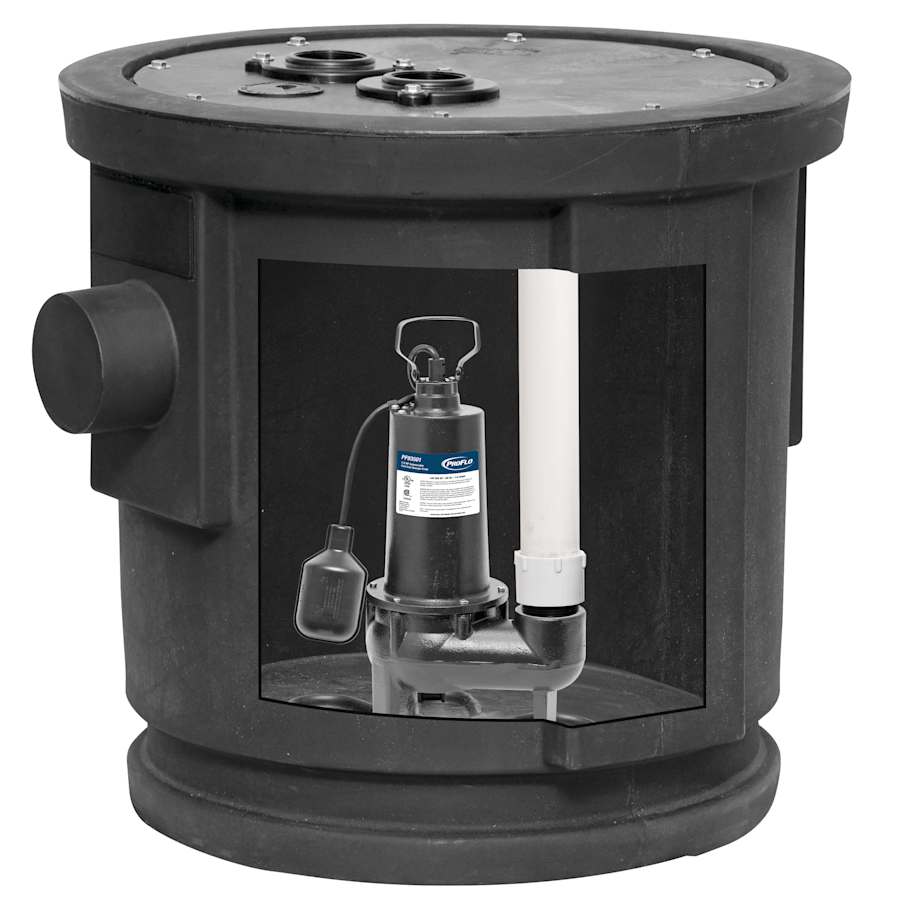

ProFlo PF93024 Features:
Covered under ProFlo’s 3 year limited warranty
Constructed of cast iron, ensuring durability
Pump is operated by a tethered float switch
10 foot power cord
ProFlo PF93024 Specifications:
Horsepower: 1/2
Discharge Connection: 2″
Inlet: 4″
Total Capacity: 45 Gallons
Working Capacity: 22 Gallons
Amps: 7.6
Watts: 912
Maximum Head: 25′
Maximum Flow Rate: 80 gallons-per-minute
Cord Length: 10
Height: 24-1/8″
Width: 21-1/8″
Additional PROFLO Links
View the Manufacturer Warranty
Browse all PROFLO Products
Specifications
Dimensions and Measurements
| Height | 24.125 in. |
| Width | 21.125 in. |
| Flow Rate (GPM) | 80 |
| Cord Length | 10 in. |
| Flow Rate by Feet of Head | 2 gal / 25 ft, 60 gal / 10 ft, 68 gal / 5 ft, 13 gal / 20 ft, 44 gal / 15 ft |
| Maximum Diameter Solids | 2 in. |
| Maximum Head Height | 25 in. |
Characteristics and Features
| Material | Cast Iron |
| Automatic | Yes |
| Material Casing | Stainless Steel |
| Shutoff Head in Feet | 25 |
| Submersible | Yes |
Warranty and Product Information
| Country Of Origin | USA |
| Manufacturer Warranty | 3 Year Limited |
| Made in America | Yes |
Electrical and Operational Information
| Amperage | 7.6 |
| Horsepower | .5 |
| Maximum Fluid Temperature | 120 °F |
| Motor RPM | 3450 |
