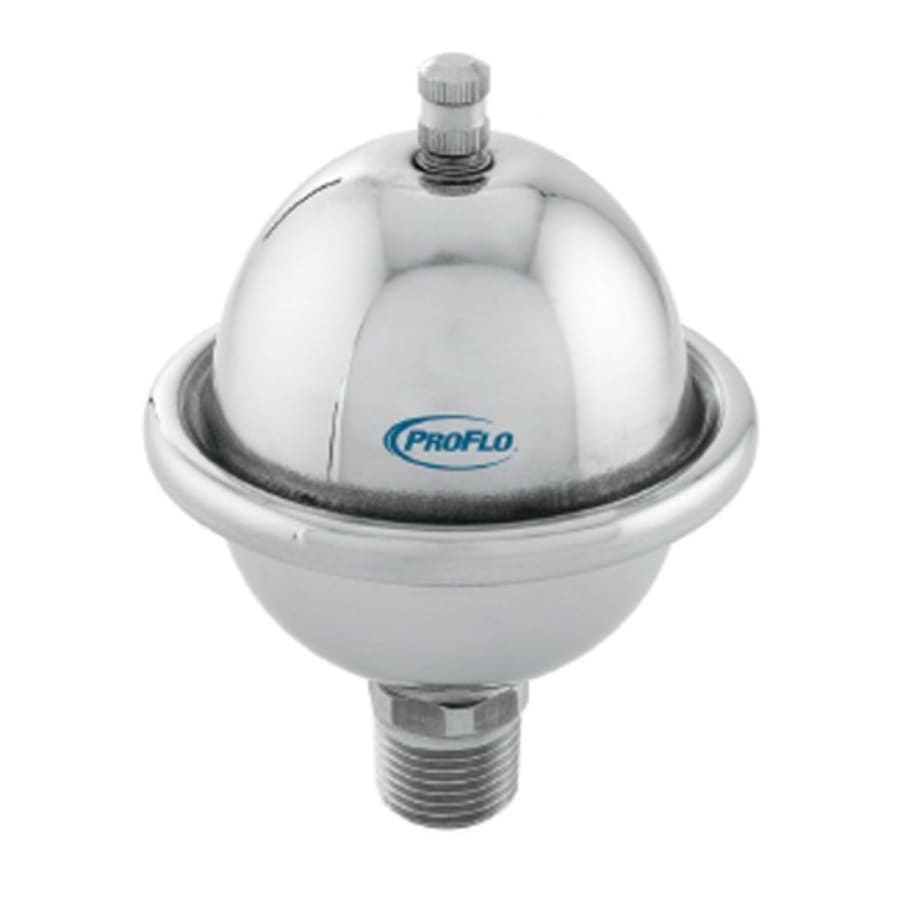

PROFLO 1/2 Inch NPT Stainless Steel Expansion Tank

PROFLO PFXT1SS Features:

Covered under PROFLO’s 1 year limited warranty
Space-saving, compact design stainless steel expansion tank and shock arrestor for tankless and POU water heaters with 2 gallons or less of total water volume
Designed to protect the heat exchanger on tankless water heaters by relieving excess pressure in the system
Tank includes a 40 psi factory precharge but can be adjusted in the field
Entire tank is constructed of 304 stainless steel
1/2″ NPTM 304 stainless steel connection
UV-resistant and approved for outdoor installation
Butyl membrane diaphragm
NSF 61 certified
Should be installed on the cold water inlet below the isolation valve in between the tankless heater and the check valve
Max working pressure: 150 psi
Max operating temperature: 195ºF

PROFLO PFXT1SS Specifications:

Connection Size: 1/2″
Height: 5″
Diameter: 2.5″
