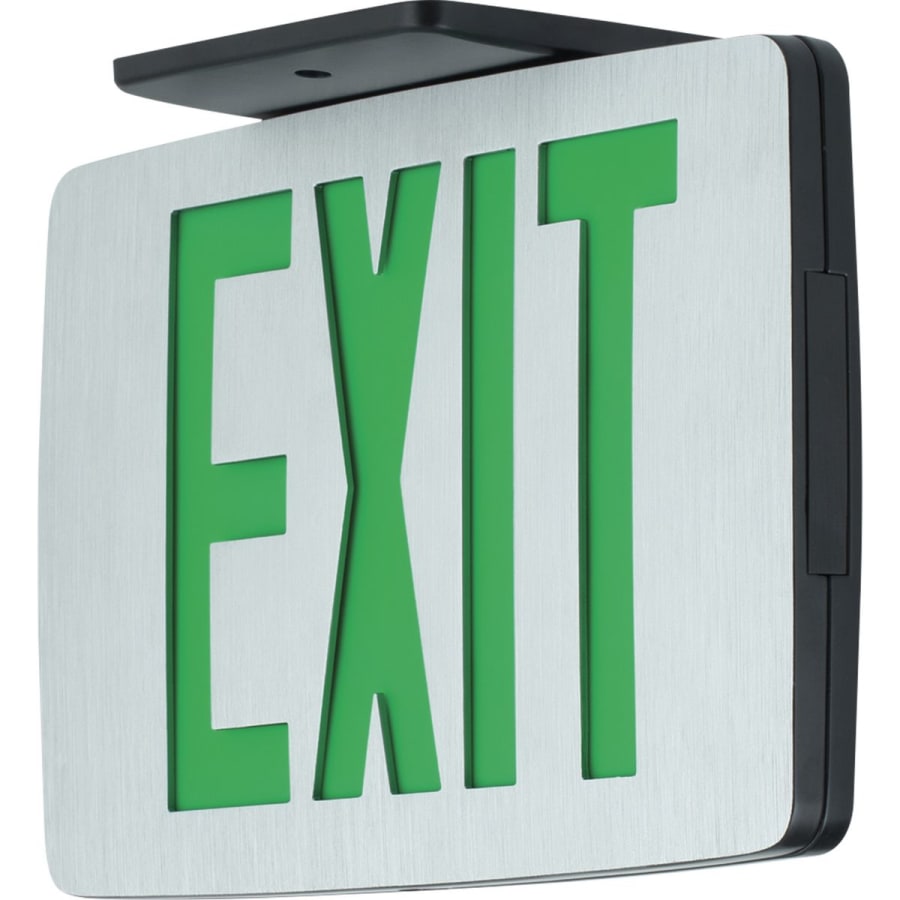

The PEALE Series offers quality and value with a compact and attractive Thin Die-Cast aluminum Exit sign. Exit face illumination by low energy, long-life green ultra bright LED’s. The Exit face-plate is brushed aluminum with black edges and 6” letters with a green diffuser. Double-face models are end or ceiling mounted only. Includes canopy, universal mounting plate and a battery for emergency operation. Test switch and AC-on indicator are located at bottom center. Directional indication made by knock-out chevrons.
Features:
LED life-cycle of more than 10 years
Molded-in template for Quick installation
Includes long-life 2.4 VDC Nickel Cadmium batter for UL recognized 90 minute emergency operation.
Provided with test switch and AC-On indicator
Canopy included
24 hour re-charge
UL rated for damp locations
Made of aluminum
2 year full warranty
32°F to 122°F operating temperature
Certifications: UL-924, NFPA-70, NFPA-101, OSHA
Dimensions:
Height: 7 3/4″
Depth: 7/8″
Width: 11 3/5″
Electrical Specifications:
Bulb Type: LED
Number of Bulbs: 1
Voltage: Dual 120V or 277V
Wattage: 1
Additional Progress Lighting Links
View the Manufacturer Warranty
Browse all Progress Lighting Products
Specifications
| Height | 7.75 in. |
| Width | 11.6 in. |
| Material | Aluminum |
| Bulb Base | Integrated LED |
| Bubbler Type | LED |
| Light Direction | Ambient Lighting |
| Number of Bulbs | 1 |
| LED | Yes |
| Energy Efficient | Yes |
| Approved for Commercial Use | Yes |
| Collection | LED Exit Sign |
| Country Of Origin | China |
| Manufacturer Warranty | 2 Year |
| Certifications | UL |
| Location Rating | Damp Location |
| Title 20 Compliant | No |
| Title 24 | No |
| Power Source | Battery, Hardwired |
| Wattage | 1 |
| Voltage | 120, 277 |
| Voltage Type | Commercial Voltage (125V+), Line Voltage (110-120V) |
| Battery Backup | Yes |
| Shade | No |
| Color | Die-Cast Aluminum |
| Color Tone | Multi-Colored |
