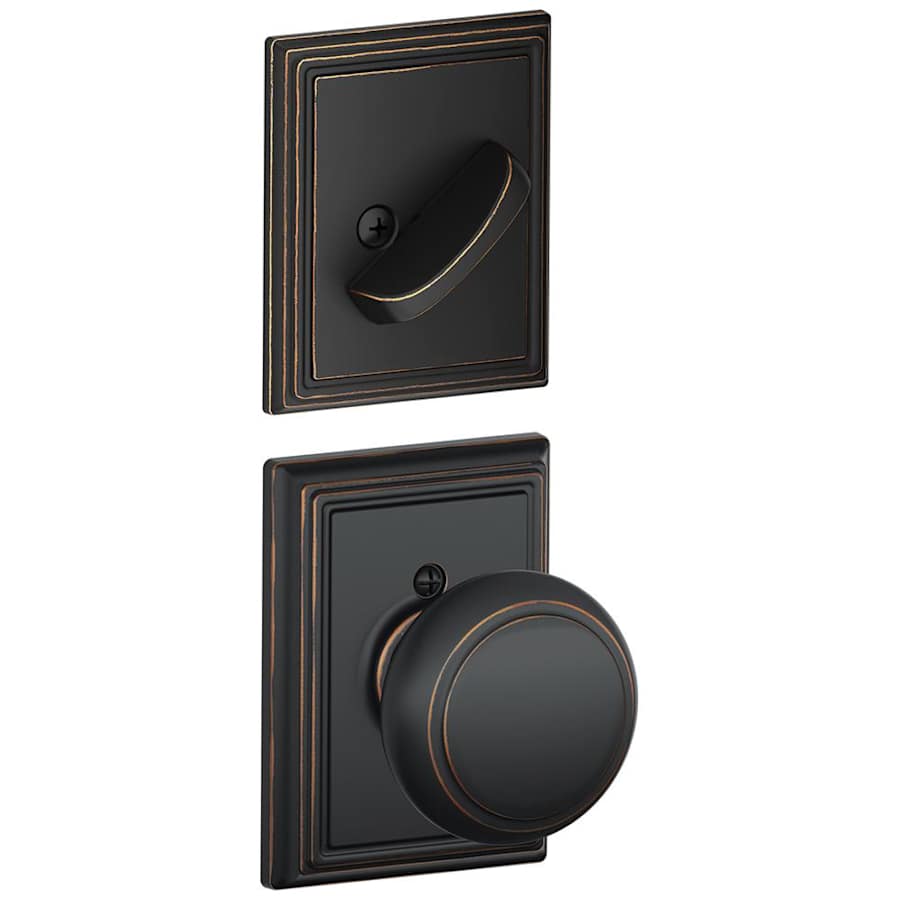

Interior Pack (Single Cylinder) Function: Schlage single cylinder interior packs complete the interior mounting of a working mechanical lock set, and require an associated exterior single cylinder trim for installation.
BHMA/ANSI Grade 2 certified which indicates excellent performance across a range of residential applications. This product is built from high-quality materials to give you exceptional security.
Installation is easy, all you need is a screwdriver and a little time. The set is designed to fit standard prep doors and most installations should take less than an hour.
A Lifetime Mechanical and Finish Warranty gives you the piece of mind that this product will be looking good and functioning smoothly for as long as you own it.(Finish warranty does not include Oil Rubbed Bronze because it is a living finish and it is expected to patina over time).
Product Features:
Exceeds requirements for certification of BHMA/ANSI Grade 2
Constructed of metal for durability and strength
Handing is reversible for you convenience
Includes round, square and drive-in latch faceplates
Includes a lifetime mechanical and finish warranty
This knob entry set is not ADA compliant
Specifications:
Backset: Adjustable 2-3/8″ or 2-3/4″
Cross Bore: 2-1/8″
Edge Bore: 1″
Door Thickness: 1-3/8″, 1-1/2″, 1-3/4″, 1-5/8″, 1-3/4″
Knob Design: Andover
Diameter: 2-1/4″
Projection: 2-5/16″
Trim Design: Addison
Rose Height: 4″
Rose Width: 2-3/4″
Handing: Reversible
Material: Zinc
Latch Faceplate: Round Corner, Square Corner, Drive-In
Cylinder: 5 Pin Schlage C
Product Variations:
F59-AND-ADD (This Model): Keyed Entry Single Cylinder Interior Pack
F94-AND-ADD: Dummy Interior Pack
Additional Schlage Links
View the Manufacturer Warranty
Browse all Schlage Products
Schlage Addison Collection
Specifications
| Thermostat | Transitional |
| Handle Material | Metal |
| Handle Style | Knob |
| Handshower | Left, Reversible, Right |
| Latch Faceplate | Drive-In, Round Corner, Square Corner |
| Function | Keyed Entry |
| Cylinder Type | Single Cylinder |
| Shape | Round |
| Panic Proof | No |
| Handle Design | Andover |
| Trim Design | Addison |
| Center to Center | 5.5 in. |
| Product Weight | 1.5 lbs. |
| Edge Bore | 1" |
| Backset | 2-3/4", 2-3/8", Adjustable 2-3/8" or 2-3/4" |
| Cross Bore | 2-1/8" |
| Door Thickness | 1-3/4", 1-5/8", 1-7/8", 2" |
| Handle Projection | 2.3125 in. |
| Trim Height | 4 in. |
| Trim Width | 2.75 in. |
| Handle Width | 2.25 in. |
| Approved for Commercial Use | No |
| Collection | Addison, Andover |
| Series | Decorative Collection, F-Series |
| Certifications | ANSI |
| ANSI Certification | A156.5 |
| BHMA Certification | Grade 2 |
| Color | Aged Bronze |
| Color Tone | Bronze Tones |
