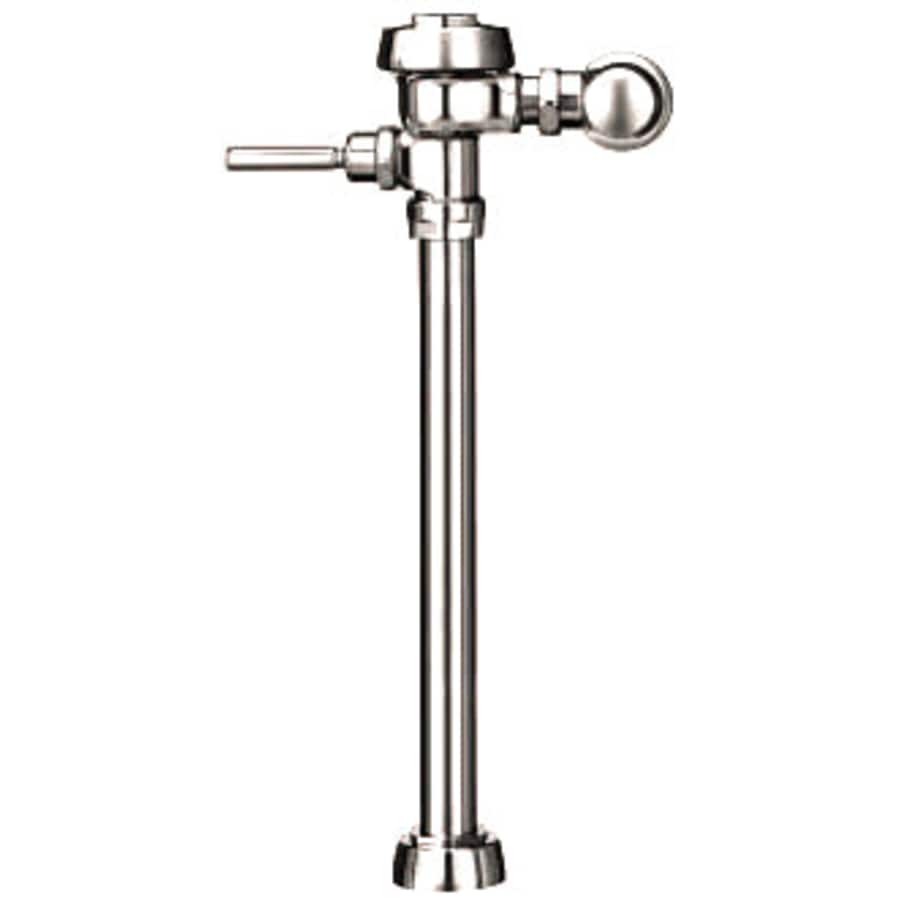

6.5 gpf Exposed Service Sink Flushometer, for use with 1-1/2″ top spud Service Sinks.
Quiet, Exposed, Diaphragm Type, Chrome Plated Service Sink Flushometer
Features:
PERMEX(tm) Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
1″ I.P.S. Screwdriver Bak-Chek(R) Angle Stop
Free Spinning Vandal Resistant Stop Cap
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
Spud Coupling and Flange for 1½” Top Spud
Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID(tm) Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker molded from PERMEX(tm) Rubber Compound for Chloramine Resistance
100% of the energy used in manufacturing is offset with Renewable Energy Sources – Wind Energy
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance to the applicable sections of ASSE 1037, ANSI/ASME 112.19.2.
Additional Sloan Links
View the Manufacturer Warranty
Browse all Sloan Products
Sloan Royal Collection
Specifications
| Approved for Commercial Use | Yes |
| CA Drought Compliant | No |
| Eco Friendly | No |
| TX Drought Compliant | No |
| Configuration | Exposed |
| Control Type | Manual |
| Spud Placement | Top |
| Gallons Per Flush | 3.5 |
| Spud Size | 1.5 in. |
| Color | Chrome |
| Color Tone | Silver Tones |
