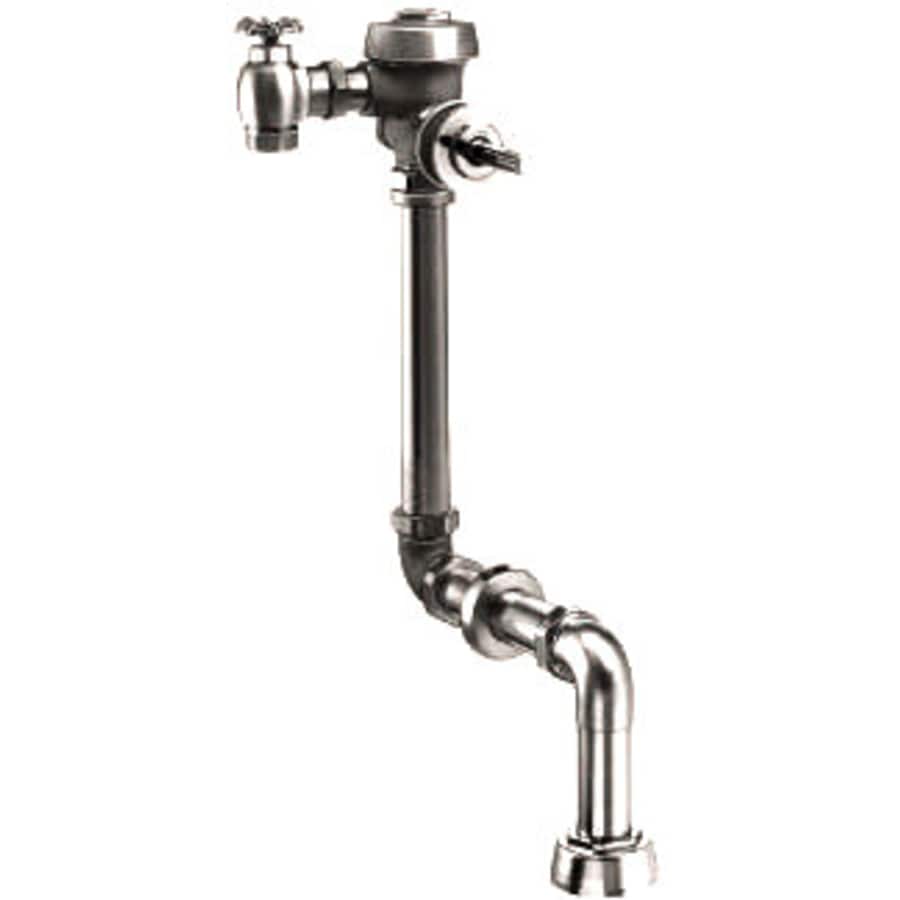

Sloan Conventional (6.5 gpf) Concealed Service Sink Flushometer, for use with exposed 1-1/2″ exposed top spud service sink.

Conventional (6.5 gpf) Concealed Service Sink Flushometer, for use with exposed 1-1/2″ exposed top spud service sink.

Model 155 (6.5 gpf/24.6 Lpf)
PERMEX(tm) Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
1″ I.P.S. Wheel Handle Bak-Chek(tm) Angle Stop
Adjustable Tailpiece
High Back Pressure Vacuum Breaker Flush Connection
Sweat Solder Adapter
Elbow Flush Connection, Spud Coupling, Wall and Spud Flanges for 1½” Exposed Top Spud
Exposed parts Chrome Plated
High Copper, Low Zinc Brass Castings for Dezincification Resistance
Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Flush Accuracy Controlled by CID(tm) Technology
Diaphragm, Handle Packing, Stop Seat and Vacuum Breaker to be molded from PERMEX(tm) Rubber Compound for Chloramine Resistance
